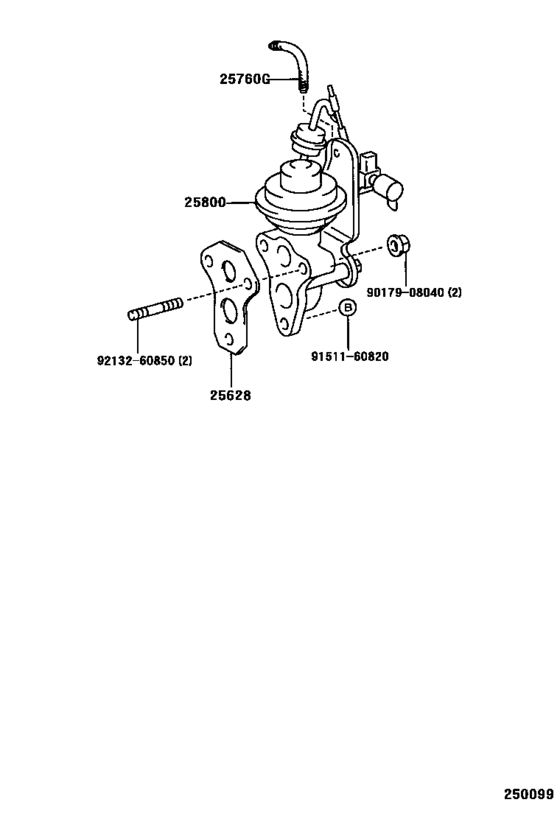

Exhaust Gas Recirculation System ([10.2001 - ] (0110- )1CDFTV) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25628
|
25628
25628-27010 Gasket, Egr InletEGR INLET [10.2001 - 01.2004] 1CDFTV..CDE120 |
25628-27010 |
from US $12.17 |
||
|
25760G
|
25760G
25760-27050
Hose Assy, Vacuum Transmitting
[10.2001 - 01.2004] 1CDFTV..CDE120 |
25760-27050 |
— | ||
|
25800
|
25800
25800-27040
Valve Assy, Egr
[10.2001 - 01.2004] 1CDFTV..CDE120 |
25800-27040 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
9213260850
|
9213260850
92132-60850
Bolt, Stud(For Manifold To Cylinder Head)
|
92132-60850 |
— | ||
