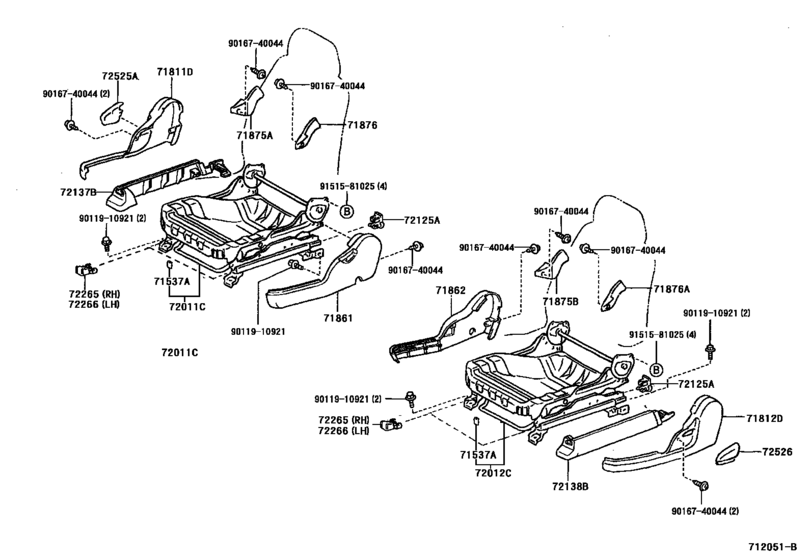

Front Seat & Seat Track ([09.2001 - ] NORMAL ADJUSTER (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[06.2002 - 01.2004] CDE120,ZZE12# |
71537-26010 |
US $1.08 |
||
|
71811D
|
71811D
71811-13030-B0 Shield, Front Seat Cushion, Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71811-13030-B0 |
US $52.42 |
||
|
71811D
|
71811D
71811-47030-B1 Cover, Reclining Adjuster, Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
71811-47030-B1 |
US $52.42 |
||
|
71812D
|
71812D
71812-47030-B1 Shield, Front Seat Cushion, Lh[09.2001 - 01.2004] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
71812-47030-B1 |
US $52.42 |
||
|
71812D
|
71812D
71812-47050-B1 Shield, Front Seat Cushion, Lh[09.2001 - 01.2004] CDE120,ZZE12#..RHD W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71812-47050-B1 |
US $52.42 |
||
|
71861
|
71861
71861-47030-B3 Shield, Front Seat Cushion, Inner Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
71861-47030-B3 |
US $49.80 |
||
|
71862
|
71862
71862-47020-B1 Shield, Front Seat Cushion, Inner Lh[09.2001 - 01.2004] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
71862-47020-B1 |
US $52.42 |
||
|
71875A
|
71875A
71875-47020-B1 Cover, Reclining Adjuster Inside, Rh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
71875-47020-B1 |
US $11.65 |
||
|
71875B
|
71875B
71875-47020-B1 Cover, Reclining Adjuster Inside, Rh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
71875-47020-B1 |
US $11.65 |
||
|
71876
|
71876
71876-47020-B1 Cover, Reclining Adjuster Inside, Lh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
71876-47020-B1 |
US $12.23 |
||
|
71876A
|
71876A
71876-47020-B1 Cover, Reclining Adjuster Inside, Lh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
71876-47020-B1 |
US $12.23 |
||
|
72011C
|
72011C
72010-13040 Adjuster Sub-Assy, Front Seat, Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
72010-13040 |
US $800.80 |
||
|
72012C
|
72012C
72020-13090 Adjuster Sub-Assy, Front Seat, LhFRONT SEAT, LH [06.2002 - 01.2004] CDE120,ZZE12#..RHD |
72020-13090 |
US $768.77 |
||
|
72012C
|
72012C
72020-13090-B0 Adjuster Sub-Assy, Front Seat, LhFRONT SEAT, LH [09.2001 - 06.2002] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
72020-13090-B0 |
US $768.77 |
||
| replacement | |||||
|
72012C
|
72012C
72020-13090 Adjuster Sub-Assy, Front Seat, LhFRONT SEAT, LH [09.2001 - 06.2002] CDE120,ZZE12#..RHD DK.GRAY,TRIM1# |
72020-13090 |
US $768.77 |
||
|
72125A
|
72125A
72125-13040 Cover, Seat Track, Upper Rear[09.2001 - 01.2004] CDE120,ZZE12# |
72125-13040 |
US $1.41 |
||
|
72137B
|
72137B
72137-13030-B0 Cover, Seat Track, Rh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
72137-13030-B0 |
US $39.17 |
||
|
72138B
|
72138B
72138-13030-B0 Cover, Seat Track, Lh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
72138-13030-B0 |
US $39.17 |
||
|
72265
|
72265
72265-13040 Cover, Seat Track Upper Rail, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
72265-13040 |
US $4.80 |
||
|
72266
|
72266
72265-13040 Cover, Seat Track Upper Rail, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
72265-13040 |
US $4.80 |
||
|
72525A
|
72525A
72525-47020-B1 Handle, Reclining Adjuster Release, Rh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
72525-47020-B1 |
US $12.67 |
||
|
72526
|
72526
72526-47020-B1 Handle, Reclining Adjuster Release, Lh[09.2001 - 01.2004] CDE120,ZZE12# DK.GRAY,TRIM1# |
72526-47020-B1 |
US $12.67 |
||
|
9011910921
|
9011910921
90119-10921 BOLT WWASHER |
90119-10921 |
from US $0.92 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.72 |
||
|
9151581025
|
9151581025
91515-81025 New Genuine Part |
91515-81025 |
US $1.31 |
||
