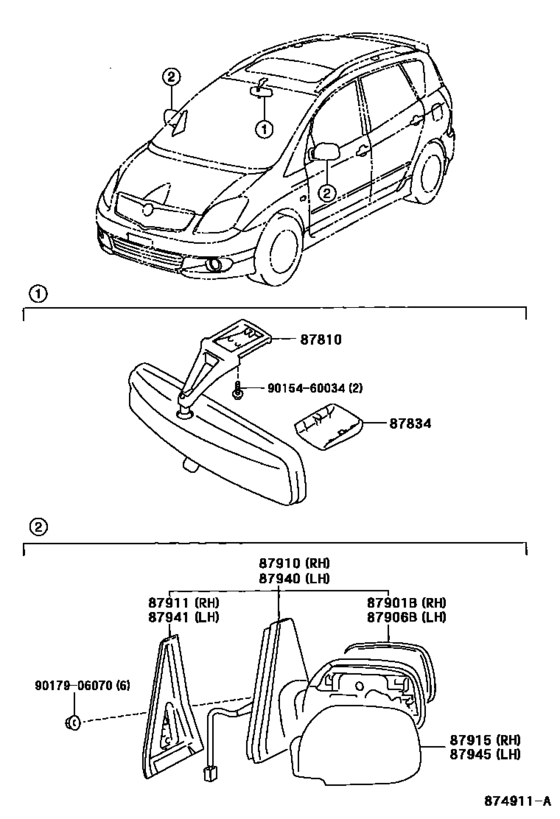

Mirror ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-13050-B0 Mirror Assy, Inner Rear View (Lt.Gray)[09.2001 - 01.2004] CDE120,ZZE12# LT.GRAY,TRIM1# |
87810-13050-B0 |
US $152.52 |
||
|
87834
|
87834
87834-20080-B6 Cover, Inner Rear View Mirror Stay Holder[09.2001 - 01.2004] CDE120,ZZE12# LIGHT GRAY,TRIM1# |
87834-20080-B6 |
from US $1.68 |
||
|
87901B
|
87901B
87931-42580 Mirror Sub-Assy, Outer Rear View, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
87931-42580 |
US $29.22 |
||
|
87901B
|
87901B
87931-42610 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [09.2001 - 01.2004] CDE120,ZZE12# HEATER MIRROR |
87931-42610 |
US $48.63 |
||
|
87906B
|
87906B
87961-42550 Mirror Sub-Assy, Outer Rear View, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
87961-42550 |
US $29.22 |
||
|
87906B
|
87906B
87961-42580 Mirror Sub-Assy, Outer Rear View, LhOUTER REAR VIEW, LH [09.2001 - 01.2004] CDE120,ZZE12# HEATER MIRROR |
87961-42580 |
US $48.63 |
||
|
87910
|
87910
87910-13160 Mirror Assy, Outer Rear View, Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
87910-13160 |
US $244.61 |
||
|
87910
|
87910
87910-13170
Mirror Assy, Outer Rear View, Rh
[09.2001 - 01.2004] CDE120,ZZE12#..RHD HEATER MIRROR |
87910-13170 |
— | ||
|
87911
|
87911
87911-13020 Gasket, Outer Rear View Mirror, Rh[02.2002 - 01.2004] CDE120,ZZE12# |
87911-13020 |
US $9.90 |
||
|
87915
|
87915
87915-42010 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12#..TERRA |
87915-42010 |
US $41.93 |
||
|
87915
|
87915
87915-42020-A2 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12# SUPER WHITE 2,040 |
87915-42020-A2 |
US $43.10 |
||
|
87915
|
87915
87915-42020-B1 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12# SILVER ME.GR.,1D9 |
87915-42020-B1 |
US $43.10 |
||
|
87915
|
87915
87915-42020-B7 Cover, Outer Mirror, Rh[04.2003 - 01.2004] CDE120,ZZE12# SILVER M.M.,1E7 |
87915-42020-B7 |
US $43.10 |
||
|
87915
|
87915
87915-42020-C1 Cover, Outer Mirror, Rh[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
87915-42020-C1 |
US $43.10 |
||
| replacement | |||||
|
87915
|
87915
87915-42020-C2 Cover, Outer Mirror, Rh[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
87915-42020-C2 |
US $43.10 |
||
|
87915
|
87915
87915-42020-C2 Cover, Outer Mirror, Rh[04.2003 - 01.2004] CDE120,ZZE12# BLACK MC.,209 |
87915-42020-C2 |
US $43.10 |
||
|
87915
|
87915
87915-42020-D1 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12# RED M.M.,3N8 |
87915-42020-D1 |
US $43.10 |
||
|
87915
|
87915
87915-42020-D2 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12# BORDEAUX MC.,3P2 |
87915-42020-D2 |
US $43.10 |
||
|
87915
|
87915
87915-42020-F1 Cover, Outer Mirror, Rh[09.2001 - 04.2003] CDE120,ZZE12# GOLD ME.,585 |
87915-42020-F1 |
US $43.10 |
||
|
87915
|
87915
87915-42020-G1 Cover, Outer Mirror, RhOUTER MIRROR, RH [09.2001 - 01.2004] CDE120,ZZE12# DARK GREEN MC.,6R4 |
87915-42020-G1 |
US $43.10 |
||
|
87915
|
87915
87915-42020-H1 Cover, Outer Mirror, Rh[04.2003 - 01.2004] CDE120,ZZE12# LT.AQUA ME.OP.,761 |
87915-42020-H1 |
US $43.10 |
||
|
87915
|
87915
87915-42020-J2 Cover, Outer Mirror, RhOUTER MIRROR, RH [09.2001 - 01.2004] CDE120,ZZE12# GRAYISH BLUE ME.,8N6 |
87915-42020-J2 |
US $43.10 |
||
|
87915
|
87915
87915-42020-J3 Cover, Outer Mirror, Rh[09.2001 - 01.2004] CDE120,ZZE12# DK.BLUE M.M.,8P4 |
87915-42020-J3 |
US $43.10 |
||
|
87915
|
87915
87915-42020-J4 Cover, Outer Mirror, Rh[09.2001 - 04.2003] CDE120,ZZE12# BLUE M.M.,8Q1 |
87915-42020-J4 |
US $43.10 |
||
|
87940
|
87940
87940-13160 Mirror Assy, Outer Rear View, Lh[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
87940-13160 |
US $244.61 |
||
|
87940
|
87940
87940-13170
Mirror Assy, Outer Rear View, Lh
[09.2001 - 01.2004] CDE120,ZZE12#..RHD HEATER MIRROR |
87940-13170 |
— | ||
|
87941
|
87941
87941-13020 Gasket, Outer Rear View Mirror, Lh[02.2002 - 01.2004] CDE120,ZZE12# |
87941-13020 |
US $9.90 |
||
|
87945
|
87945
87945-42010 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12#..TERRA |
87945-42010 |
US $41.93 |
||
|
87945
|
87945
87945-42020-A2 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12# SUPER WHITE 2,040 |
87945-42020-A2 |
US $43.10 |
||
|
87945
|
87945
87945-42020-B1 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12# SILVER ME.GR.,1D9 |
87945-42020-B1 |
US $43.10 |
||
|
87945
|
87945
87945-42020-B7 Cover, Outer Mirror, Lh[04.2003 - 01.2004] CDE120,ZZE12# SILVER M.M.,1E7 |
87945-42020-B7 |
US $43.10 |
||
|
87945
|
87945
87945-42020-C1 Cover, Outer Mirror, Lh[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
87945-42020-C1 |
US $43.10 |
||
| replacement | |||||
|
87945
|
87945
87945-42020-C2 Cover, Outer Mirror, Lh[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
87945-42020-C2 |
US $43.10 |
||
|
87945
|
87945
87945-42020-C2 Cover, Outer Mirror, Lh[04.2003 - 01.2004] CDE120,ZZE12# BLACK MC.,209 |
87945-42020-C2 |
US $43.10 |
||
|
87945
|
87945
87945-42020-D1 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12# RED M.M.,3N8 |
87945-42020-D1 |
US $43.10 |
||
|
87945
|
87945
87945-42020-D2 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12# BORDEAUX MC.,3P2 |
87945-42020-D2 |
US $43.10 |
||
|
87945
|
87945
87945-42020-F1 Cover, Outer Mirror, Lh[09.2001 - 04.2003] CDE120,ZZE12# GOLD ME.,585 |
87945-42020-F1 |
US $43.10 |
||
|
87945
|
87945
87945-42020-G1 Cover, Outer Mirror, LhOUTER MIRROR, LH [09.2001 - 01.2004] CDE120,ZZE12# DARK GREEN MC.,6R4 |
87945-42020-G1 |
US $43.10 |
||
|
87945
|
87945
87945-42020-H1 Cover, Outer Mirror, Lh[04.2003 - 01.2004] CDE120,ZZE12# LT.AQUA ME.OP.,761 |
87945-42020-H1 |
US $43.10 |
||
|
87945
|
87945
87945-42020-J2 Cover, Outer Mirror, LhOUTER MIRROR, LH [09.2001 - 01.2004] CDE120,ZZE12# GRAYISH BLUE ME.,8N6 |
87945-42020-J2 |
US $43.10 |
||
|
87945
|
87945
87945-42020-J3 Cover, Outer Mirror, Lh[09.2001 - 01.2004] CDE120,ZZE12# DK.BLUE M.M.,8P4 |
87945-42020-J3 |
US $43.10 |
||
|
87945
|
87945
87945-42020-J4 Cover, Outer Mirror, Lh[09.2001 - 04.2003] CDE120,ZZE12# BLUE M.M.,8Q1 |
87945-42020-J4 |
US $43.10 |
||
|
9015460034
|
9015460034
90154-60034 New Genuine Part |
90154-60034 |
US $1.16 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
