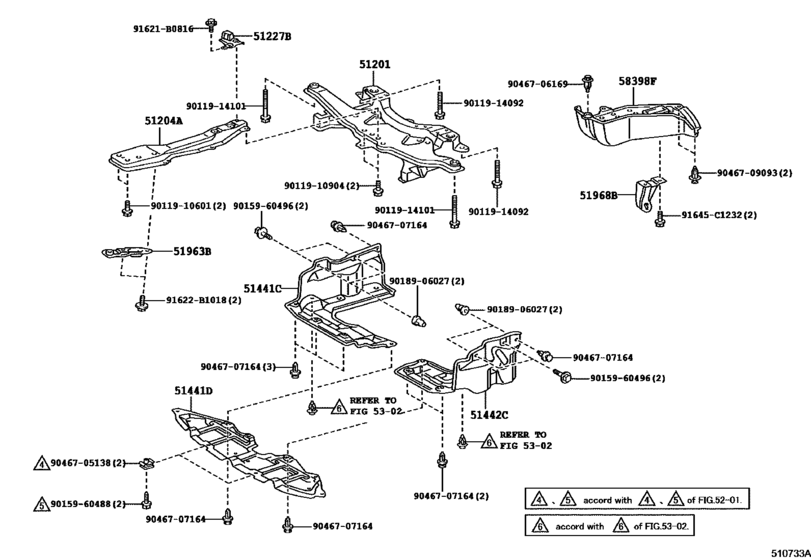

Suspension Crossmember & Under Cover ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-20350 Crossmember Sub-Assy, Front Suspension[09.2001 - 03.2003] CDE120,ZZE12# |
51201-20350 |
US $895.44 |
||
| replacement | |||||
|
51201
|
51201
51201-20352 Crossmember Sub-Assy, Front Suspension[09.2001 - 03.2003] CDE120,ZZE12# |
51201-20352 |
US $621.71 |
||
|
51201
|
51201
51201-20351 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [03.2003 - 01.2004] CDE120,ZZE12# |
51201-20351 |
US $896.90 |
||
| replacement | |||||
|
51201
|
51201
51201-20352 Crossmember Sub-Assy, Front Suspension[03.2003 - 01.2004] CDE120,ZZE12# |
51201-20352 |
US $621.71 |
||
|
51204A
|
51204A
51204-12150 Member Sub-Assy, Engine Mounting, Center[09.2001 - 01.2004] CDE120,ZZE12# |
51204-12150 |
US $163.07 |
||
|
51227B
|
51227B
51227-12070 Damper, Front Suspension Member Dynamic[10.2001 - 01.2004] CDE120 |
51227-12070 |
US $72.80 |
||
|
51441C
|
51441C
51410-12040 Cover, Engine Under, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
51410-12040 |
US $90.27 |
||
|
51441D
|
51441D
51451-13010 Cover, Engine Under[09.2001 - 01.2004] CDE120,ZZE12# |
51451-13010 |
US $57.13 |
||
|
51442C
|
51442C
51420-12030 Cover, Engine Under, Lh[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
51420-12030 |
US $90.27 |
||
|
51963B
|
51963B
51960-13010
Hook, No.1
[09.2001 - 01.2004] CDE120,ZZE12# |
51960-13010 |
— | ||
|
51968B
|
51968B
51968-13040 Hook, Transport, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12# |
51968-13040 |
US $33.49 |
||
|
58398F
|
58398F
58398-13070 Cover, Floor Under, No.1FLOOR UNDER, NO.1 [09.2001 - 01.2004] CDE120,ZZE12# |
58398-13070 |
US $54.31 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.88 |
||
|
91645C1232
|
91645C1232
91645-C1232 New Genuine Part |
91645-C1232 |
US $2.87 |
||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9011910904
|
9011910904
90119-10904 BOLT WWASHER |
90119-10904 |
US $3.94 |
||
|
9011914092
|
9011914092
90119-14092 BOLT |
90119-14092 |
from US $7.17 |
||
| replacement | |||||
|
9011914092
|
9011914092
90119-A0014 New Genuine Part |
90119-A0014 |
US $13.28 |
||
|
9011914101
|
9011914101
90119-14101 BOLT WWASHER |
90119-14101 |
from US $3.90 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.70 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906027
|
9018906027
90189-06027 Grommet |
90189-06027 |
from US $0.74 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.05 |
||
|
9046706169
|
9046706169
90467-06169 Clip |
90467-06169 |
from US $0.90 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $1.72 |
||
