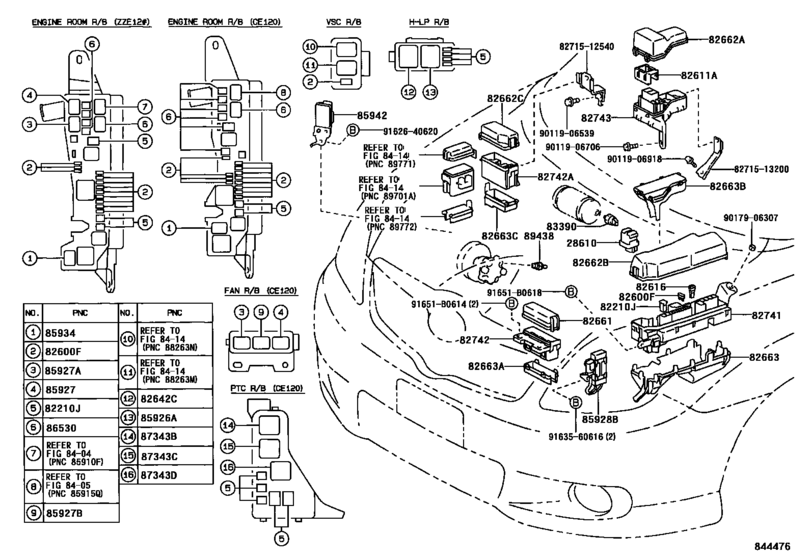

Switch & Relay & Computer ([09.2001 - ] ENGINE ROOM (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[10.2001 - 01.2004] 1CDFTV..CDE120 |
28610-67010 |
from US $47.21 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[10.2001 - 01.2004] CDE120 80A,TERMINAL:MALE |
90982-08203 |
from US $7.23 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[10.2001 - 01.2004] CDE120 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12#..RHD 30A,TERMINAL:FEMALE,YAZAKI |
90982-08280 |
from US $3.88 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12#..RHD 40A,TERMINAL:FEMALE,YAZAKI |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[09.2001 - 07.2002] CDE120,ZZE12# 30A,TERMINAL:FEMALE,TAIHEIYO |
90982-08283 |
from US $1.38 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[10.2001 - 01.2004] CDE120 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[10.2001 - 01.2004] CDE120 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12#..RHD 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12#..RHD 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82611A
|
82611A
82611-13010 Cover, Fuse Block, No.2FUSE BLOCK, NO.2 [10.2001 - 01.2004] CDE120 |
82611-13010 |
US $9.17 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[09.2001 - 01.2004] CDE120,ZZE12# |
82616-20010 |
from US $2.34 |
||
|
82661
|
82661
82662-12040 Cover, Relay Block, No.1[10.2001 - 01.2004] CDE120 |
82662-12040 |
US $15.14 |
||
|
82662A
|
82662A
82662-13080 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [10.2001 - 01.2004] CDE120 |
82662-13080 |
US $26.21 |
||
|
82662B
|
82662B
82662-13060 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [10.2001 - 01.2004] CDE120 |
82662-13060 |
US $30.14 |
||
|
82663
|
82663
82663-12020 Cover, Relay Block, Lower[10.2001 - 01.2004] CDE120 |
82663-12020 |
US $26.21 |
||
|
82663A
|
82663A
82663-12030 Cover, Relay Block, Lower, No.2[10.2001 - 01.2004] CDE120 |
82663-12030 |
US $15.29 |
||
|
82663B
|
82663B
82663-13020 Cover, Relay Block, Lower, No.2RELAY BLOCK, LOWER, NO.3 [10.2001 - 01.2004] CDE120 |
82663-13020 |
US $19.66 |
||
|
82741
|
82741
82741-12030 Block, Engine Room Relay[10.2001 - 01.2004] CDE120 |
82741-12030 |
US $94.64 |
||
|
82742
|
82742
82741-12040 Block, Engine Room Relay, No.2[10.2001 - 01.2004] CDE120 |
82741-12040 |
US $28.54 |
||
|
82743
|
82743
82741-13020 Block, Engine Room Relay, No.2ENGINE ROOM RELAY, NO.3 [10.2001 - 01.2004] CDE120 |
82741-13020 |
US $75.71 |
||
|
83390
|
83390
83390-20180 Switch Assy, Vacuum Warning[10.2001 - 01.2004] CDE120 |
83390-20180 |
US $82.32 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
90987-02012 |
from US $26.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[09.2001 - 01.2004] CDE120,ZZE12# |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[10.2001 - 01.2004] CDE120 |
90987-02012 |
from US $26.54 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[09.2001 - 01.2004] CDE120,ZZE12# |
90987-02022 |
from US $51.50 |
||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
90987-02020 |
US $46.53 |
||
|
87343B
|
87343B
90987-02016
Relay Assy, Starter
[10.2001 - 01.2004] CDE120 |
90987-02016 |
— | ||
| replacement | |||||
|
87343B
|
87343B
90987-02025 Relay[10.2001 - 01.2004] CDE120 |
90987-02025 |
from US $49.22 |
||
|
87343C
|
87343C
90987-02016
Relay Assy, Starter
[10.2001 - 01.2004] CDE120 |
90987-02016 |
— | ||
| replacement | |||||
|
87343C
|
87343C
90987-02025 Relay[10.2001 - 01.2004] CDE120 |
90987-02025 |
from US $49.22 |
||
|
87343D
|
87343D
90987-02016
Relay Assy, Starter
[10.2001 - 06.2003] CDE120 |
90987-02016 |
— | ||
| replacement | |||||
|
87343D
|
87343D
90987-02025 Relay[10.2001 - 06.2003] CDE120 |
90987-02025 |
from US $49.22 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.79 |
||
|
8271512540
|
8271512540
82715-12540 Bracket,wiring Harness Clamp |
82715-12540 |
US $4.80 |
||
|
8271513200
|
8271513200
82715-13200 Bracket,wiring Harness Clamp |
82715-13200 |
US $10.92 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.38 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.43 |
||
|
9011906918
|
9011906918
90119-06918 New Genuine Part |
90119-06918 |
US $0.87 |
||
|
9017906307
|
9017906307
90179-06307 New Genuine Part |
90179-06307 |
US $1.60 |
||
| replacement | |||||
|
9017906307
|
9017906307
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9162640620
|
9162640620
91626-40620 New Genuine Part |
91626-40620 |
US $2.48 |
||
| replacement | |||||
|
9162640620
|
9162640620
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
