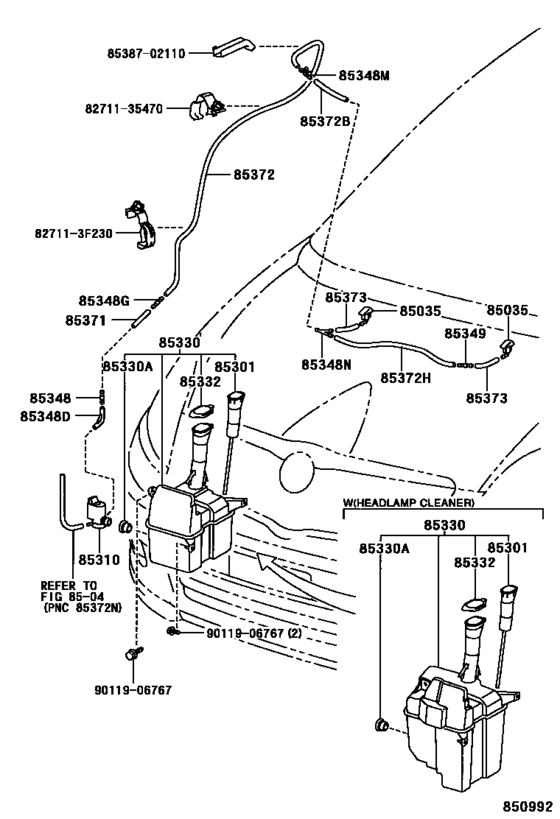

Windshield Washer ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-13030
Nozzle Sub-Assy, Washer
[09.2001 - 01.2004] CDE120,ZZE12# |
85381-13030 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-44010 Nozzle Sub-Assy, Washer[09.2001 - 01.2004] CDE120,ZZE12# |
85381-44010 |
from US $10.61 |
||
|
85301
|
85301
85318-12450
Inlet Sub-Assy, Washer
[09.2001 - 01.2004] CDE120,ZZE12# |
85318-12450 |
— | ||
|
85310
|
85310
85330-44010
Motor And Pump Assy, Windshield Washer
[09.2001 - 01.2004] CDE120,ZZE12# |
85330-44010 |
— | ||
|
85330
|
85330
85315-13030
Jar Assy, Windshield Washer
[09.2001 - 01.2004] CDE120,ZZE12# |
85315-13030 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[09.2001 - 01.2004] CDE120,ZZE12# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[09.2001 - 01.2004] CDE120,ZZE12# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[09.2001 - 01.2004] CDE120,ZZE12# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[09.2001 - 01.2004] CDE120,ZZE12# |
85316-42011 |
from US $2.10 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
85375-10260 |
from US $1.44 |
||
|
85348D
|
85348D
85355-16192
Joint, Windshield Washer Elbow, No.1
[09.2001 - 01.2004] CDE120,ZZE12# |
85355-16192 |
— | ||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
85375-10260 |
from US $1.44 |
||
|
85348M
|
85348M
85375-20800 Joint, Windshield Washer Hose, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
85375-20800 |
from US $1.50 |
||
|
85348N
|
85348N
85348-14390 Joint, Windshield Washer Hose, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
85348-14390 |
from US $1.40 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
85375-10260 |
from US $1.44 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2001 - 01.2004] CDE120,ZZE12# *H,L=50 |
90099-33080 |
from US $5.38 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2001 - 01.2004] CDE120,ZZE12# *H,L=1210 |
90099-33080 |
from US $5.38 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2001 - 01.2004] CDE120,ZZE12# *H,L=230 |
90099-33080 |
from US $5.38 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2001 - 01.2004] CDE120,ZZE12# *H,L=480 |
90099-33080 |
from US $5.38 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2001 - 01.2004] CDE120,ZZE12# *H,L=130 |
90099-33080 |
from US $5.38 |
||
|
827113F230
|
827113F230
82711-3F230 Clamp, Sliding Roof Drain Hose |
82711-3F230 |
US $3.58 |
||
|
8271135470
|
8271135470
82711-35470 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35470 |
US $3.94 |
||
|
8538702110
|
8538702110
85387-02110 Clamp No.1 (for Windseield Washer) |
85387-02110 |
US $6.84 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
