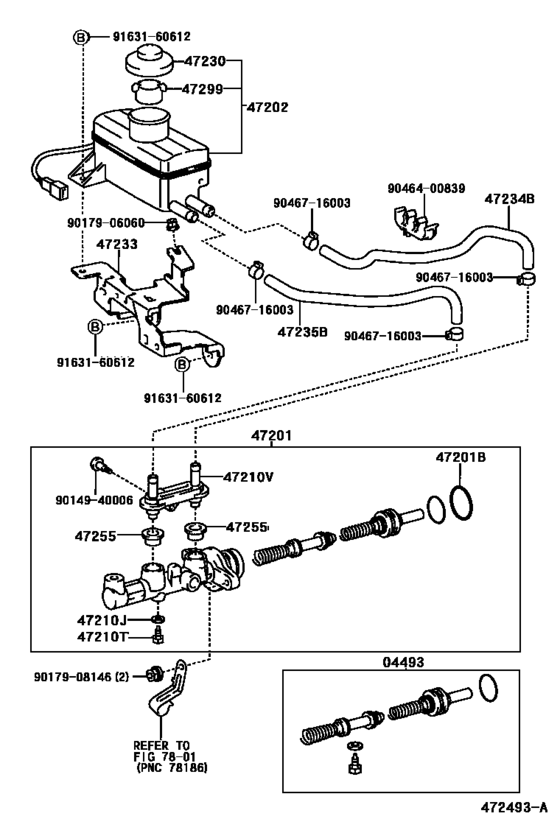

Brake Master Cylinder ([09.2001 - ] (0109- )RHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-1A010
Cylinder Kit, Brake Master
[09.2001 - 06.2003] CDE120,ZZE12# |
04493-1A010 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-1A030 Cylinder Kit, Brake Master[09.2001 - 06.2003] CDE120,ZZE12# |
04493-1A030 |
from US $71.62 |
||
|
47201
|
47201
47201-13070
Cylinder Sub-Assy, Brake Master
[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
47201-13070 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[09.2001 - 01.2004] CDE120,ZZE12# |
90029-20059 |
from US $2.24 |
||
|
47202
|
47202
47220-13040 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [09.2001 - 01.2004] CDE120,ZZE12#..RHD..MTM |
47220-13040 |
US $131.04 |
||
|
47210J
|
47210J
90029-43001 Gasket(For Master Cylinder)[12.2001 - 01.2004] CDE120,ZZE12# |
90029-43001 |
US $1.40 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[09.2001 - 12.2001] CDE120,ZZE12# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[09.2001 - 01.2004] CDE120,ZZE12# |
90109-06077 |
from US $2.87 |
||
|
47210V
|
47210V
90029-40011 Union(For Brake Master Cylinder)[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
90029-40011 |
US $6.84 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[09.2001 - 01.2004] CDE120,ZZE12# |
47230-12040 |
from US $9.32 |
||
|
47233
|
47233
47233-13020 Bracket, Reservoir[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
47233-13020 |
US $17.91 |
||
|
47234B
|
47234B
47234-13020 Tube, Reservoir, No.1[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
47234-13020 |
US $12.67 |
||
|
47235B
|
47235B
47235-13020 Tube, Brake Master Cyrinder Reservoir, No.2[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
47235-13020 |
US $12.67 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[09.2001 - 01.2004] CDE120,ZZE12# |
47255-16010 |
from US $6.45 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
47299-20060 |
US $2.18 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046400839
|
9046400839
90464-00839 New Genuine Part |
90464-00839 |
US $8.30 |
||
|
9046716003
|
9046716003
90467-16003
Clip Or Clamp(For Ventilation Hose)
|
90467-16003 |
— | ||
| replacement | |||||
|
9046716003
|
9046716003
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
