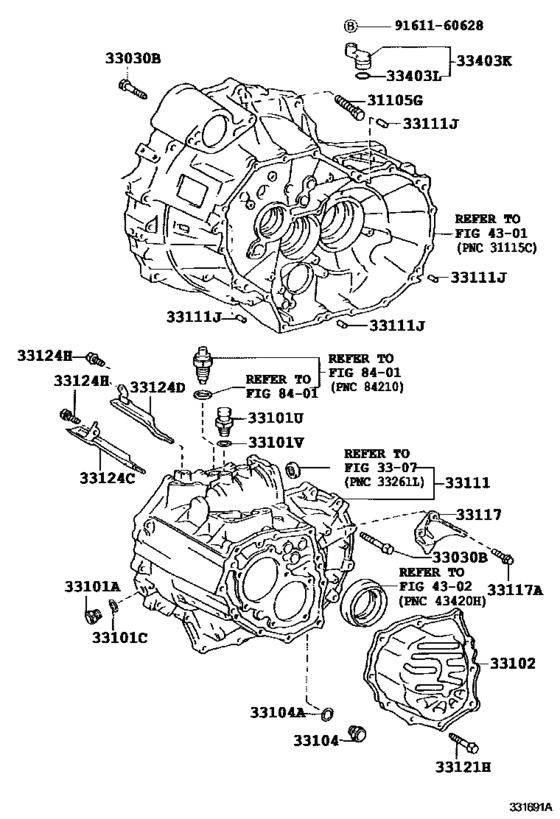

Clutch Housing & Transmission Case (Mtm) ([10.2001 - ] E351 (0110- )CDE120) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-10077 Bolt(For Transaxle Case Protector)[10.2001 - 01.2004] CDE120 *10-1.25PX43-26 |
90105-10077 |
US $4.66 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[10.2001 - 01.2004] CDE120 *12-1.25PX55-30 |
90119-12168 |
from US $2.01 |
||
|
33030B
|
33030B
90105-08126 Bolt(For Transaxle Case & Transmission Case Setting)[10.2001 - 01.2004] CDE120 *8-1.25PX45-27.5 |
90105-08126 |
US $3.40 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[10.2001 - 01.2004] CDE120 |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
90430-T0021 |
US $1.01 |
||
|
33101U
|
33101U
90930-03148 Plug, Breather(For Manual Transmission)[10.2001 - 01.2004] CDE120 |
90930-03148 |
US $23.41 |
||
|
33101V
|
33101V
90430-18008 Gasket[10.2001 - 01.2004] CDE120 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101V
|
33101V
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.2001 - 01.2004] CDE120 |
90430-T0021 |
US $1.01 |
||
|
33102
|
33102
33102-12041 Cover Sub-Assy, Manual Transmission Case[10.2001 - 06.2003] CDE120 |
33102-12041 |
US $66.54 |
||
| replacement | |||||
|
33102
|
33102
33102-12043 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [10.2001 - 06.2003] CDE120 |
33102-12043 |
US $55.47 |
||
|
33102
|
33102
33102-12042 Cover Sub-Assy, Manual Transmission Case[06.2003 - 01.2004] CDE120 |
33102-12042 |
US $66.68 |
||
| replacement | |||||
|
33102
|
33102
33102-12043 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [06.2003 - 01.2004] CDE120 |
33102-12043 |
US $55.47 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-20090 Case, Manual Transmission[01.2003 - 01.2004] CDE120 |
33101-20090 |
US $550.37 |
||
|
33111
|
33111
33101-28041 Case, Manual Transmission[10.2001 - 01.2003] CDE120 |
33101-28041 |
US $550.37 |
||
| replacements | |||||
|
33111
|
33111
33250-12183 Shaft Assy, Shift & Select Lever[10.2001 - 01.2003] CDE120 |
33250-12183 |
US $240.24 |
||
|
33111
|
33111
33101-20090 Case, Manual Transmission[10.2001 - 01.2003] CDE120 |
33101-20090 |
US $550.37 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[09.2001 - 01.2004] CDE120,ZZE12#..MTM L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
33117
|
33117
33117-20020 Protector, Manual Transmission Case[10.2001 - 01.2004] CDE120 |
33117-20020 |
US $27.61 |
||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[10.2001 - 01.2004] CDE120 |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[10.2001 - 01.2004] CDE120 |
91641-H0820 |
from US $0.80 |
||
|
33121H
|
33121H
90119-08630 Bolt, W/washer(For Transmission Case Cover)[10.2001 - 01.2004] CDE120 |
90119-08630 |
US $2.15 |
||
|
33124C
|
33124C
33124-28050 Pipe, Oil Receiver, No.1(Mtm)[10.2001 - 01.2004] CDE120 |
33124-28050 |
US $10.48 |
||
|
33124D
|
33124D
33124-28060 Pipe, Oil Receiver, No.2(Mtm)[10.2001 - 01.2004] CDE120 |
33124-28060 |
US $10.63 |
||
|
33124H
|
33124H
90119-08648 Bolt(For Oil Receiver Pipe)[10.2001 - 01.2004] CDE120 |
90119-08648 |
US $0.87 |
||
| replacement | |||||
|
33124H
|
33124H
90119-08830 Bolt(For Oil Receiver Pipe)[10.2001 - 01.2004] CDE120 |
90119-08830 |
US $1.79 |
||
|
33403K
|
33403K
33403-20230 Cover Sub-Assy, Speedometer Driven Hole[10.2001 - 01.2004] CDE120 |
33403-20230 |
US $13.80 |
||
|
33403L
|
33403L
96711-24018 Ring, O[10.2001 - 01.2004] CDE120 |
96711-24018 |
from US $2.22 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
