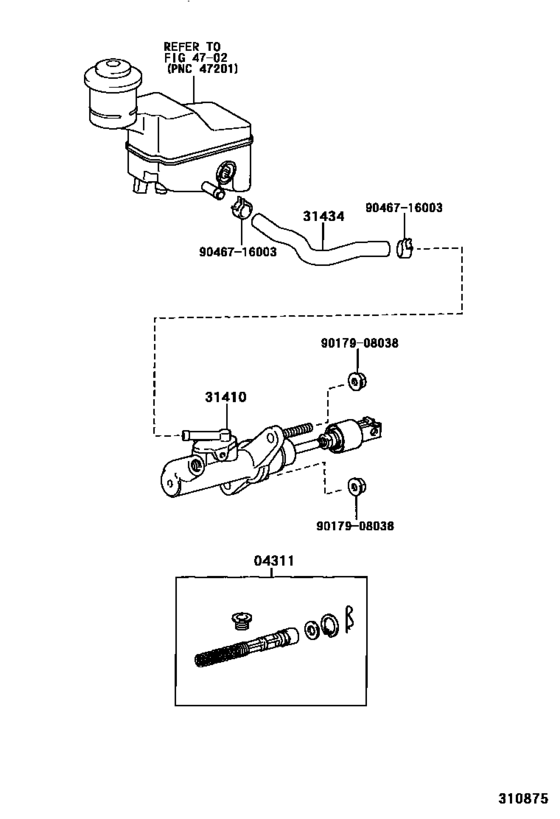

Clutch Master Cylinder ([09.2001 - ] (0109- )MTM) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12110 Cylinder Kit, Clutch Master[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
04311-12110 |
from US $23.36 |
||
|
31410
|
31410
31420-12010 Cylinder Assy, Clutch Master[09.2001 - 01.2004] CDE120,ZZE12#..RHD..MTM |
31420-12010 |
US $151.42 |
||
|
31434
|
31434
31434-13010 Tube, Clutch ReservoirCLUTCH RESERVOIR [09.2001 - 01.2004] CDE120,ZZE12#..RHD..MTM |
31434-13010 |
US $57.95 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9046716003
|
9046716003
90467-16003
Clip Or Clamp(For Ventilation Hose)
|
90467-16003 |
— | ||
| replacement | |||||
|
9046716003
|
9046716003
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
