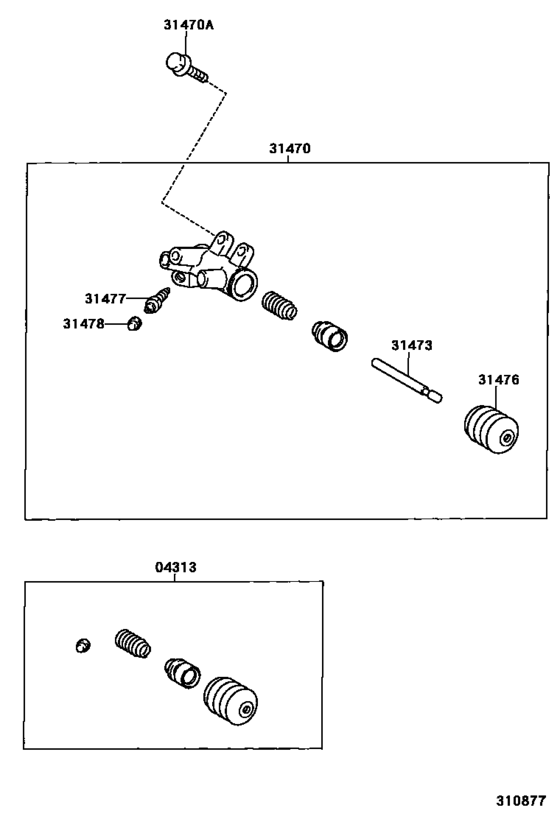

Clutch Release Cylinder ([09.2001 - ] (0109- )MTM) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04313
|
04313
04313-17010 Cylinder Kit, Clutch Release[10.2001 - 01.2004] CDE120 |
04313-17010 |
from US $13.98 |
||
|
31470
|
31470
31470-32022 Cylinder Assy, Clutch Release[10.2001 - 09.2003] CDE120 |
31470-32022 |
US $99.01 |
||
| replacement | |||||
|
31470
|
31470
31470-32023 Cylinder Assy, Clutch ReleaseCLUTCH RELEASE [10.2001 - 09.2003] CDE120 |
31470-32023 |
US $96.10 |
||
|
31470
|
31470
31470-32023 Cylinder Assy, Clutch ReleaseCLUTCH RELEASE [09.2003 - 01.2004] CDE120 |
31470-32023 |
US $96.10 |
||
|
31470A
|
31470A
90109-08248 Bolt(For Clutch Release Cylinder Setting)[10.2001 - 01.2004] CDE120 *8-1.25PX25-20.1 |
90109-08248 |
US $1.43 |
||
|
31473
|
31473
31473-22010 Rod, Clutch Release Cylinder Push, No.1[10.2001 - 09.2003] CDE120 |
31473-22010 |
US $10.13 |
||
|
31476
|
31476
31476-22010 Boot, Clutch Release Cylinder[09.2001 - 09.2003] CDE120,ZZE12#..MTM |
31476-22010 |
from US $4.10 |
||
|
31477
|
31477
47547-20010 Plug, Bleeder(For Release Cylinder)[09.2001 - 09.2003] CDE120,ZZE12#..MTM |
47547-20010 |
from US $3.58 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[09.2001 - 09.2003] CDE120,ZZE12#..MTM |
31478-30010 |
from US $1.50 |
||
