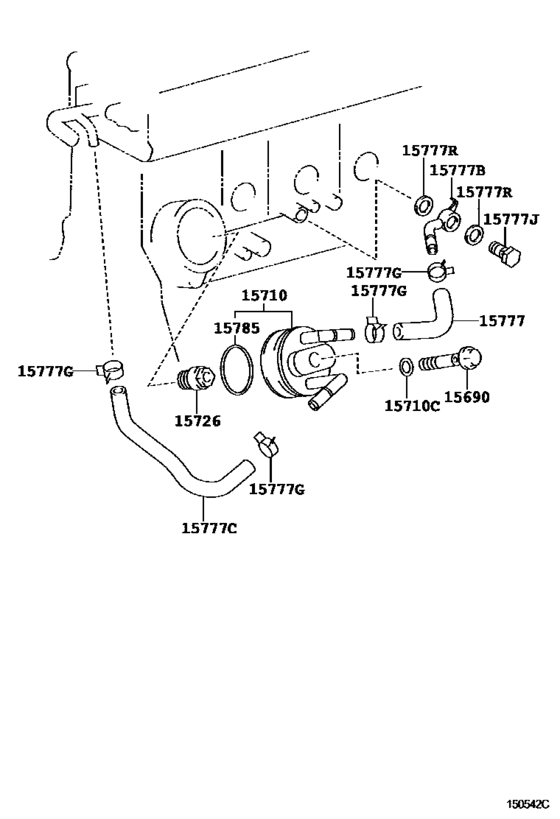

Engine Oil Cooler ([10.2001 - ] (0110- )1CDFTV) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
90401-19009 Valve Assy, Oil Cooler ReliefOIL COOLER RELIEF [10.2001 - 01.2004] 1CDFTV..CDE120 |
90401-19009 |
US $9.17 |
||
|
15710
|
15710
15710-27030
Cooler Assy, Oil
[10.2001 - 01.2004] 1CDFTV..CDE120 |
15710-27030 |
— | ||
|
15710C
|
15710C
90301-24017 Gasket(For Oil Cooler)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90301-24017 |
US $5.02 |
||
|
15726
|
15726
15726-27010 Connector, Oil Cooler Union BoltOIL COOLER UNION BOLT [10.2001 - 01.2004] 1CDFTV..CDE120 |
15726-27010 |
US $20.53 |
||
|
15777
|
15777
15777-27020 Hose, Oil CoolerOIL COOLER [10.2001 - 01.2004] 1CDFTV..CDE120 |
15777-27020 |
US $16.42 |
||
|
15777B
|
15777B
15768-27020 Pipe, Oil CoolerOIL COOLER [10.2001 - 01.2004] 1CDFTV..CDE120 |
15768-27020 |
US $42.66 |
||
|
15777C
|
15777C
15778-27050 Hose, Oil CoolerOIL COOLER [10.2001 - 01.2004] 1CDFTV..CDE120 |
15778-27050 |
US $27.66 |
||
|
15777G
|
15777G
90467-20005
Clip(For Ventilation Hose No.2)
[10.2001 - 01.2004] 1CDFTV..CDE120 |
90467-20005 |
— | ||
| replacement | |||||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[10.2001 - 01.2004] 1CDFTV..CDE120 |
96134-41900 |
from US $1.61 |
||
|
15777J
|
15777J
90401-20004 Bolt, Union(For Oil Cooler Pipe)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90401-20004 |
from US $9.30 |
||
|
15777R
|
15777R
90430-20014 Gasket(For Oil Filter Bracket Union)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90430-20014 |
US $2.34 |
||
|
15785
|
15785
15785-27010
Gasket, Oil Cooler
[10.2001 - 01.2004] 1CDFTV..CDE120 |
15785-27010 |
— | ||
