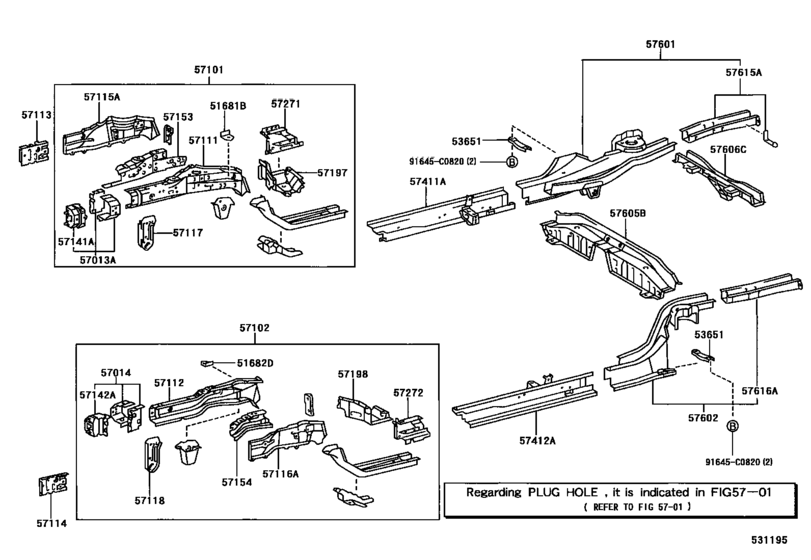

Floor Side Member ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681B
|
51681B
51681-32050 Bracket, Flexible Hose[09.2001 - 01.2004] CDE120,ZZE12# |
51681-32050 |
US $7.86 |
||
|
51682D
|
51682D
51682-32040 Bracket, Flexible Hose, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
51682-32040 |
US $8.01 |
||
|
53651
|
53651
53651-32010 Brace, Rear Floor Side Member[09.2001 - 01.2004] CDE120,ZZE12# |
53651-32010 |
US $5.39 |
||
|
57013A
|
57013A
52011-13030 Member Sub-Assy, Floor, Front RhFLOOR, FRONT RH [09.2001 - 01.2004] CDE120,ZZE12# |
52011-13030 |
US $48.34 |
||
|
57014
|
57014
52012-13030 Member Sub-Assy, Floor, Front LhFLOOR, FRONT LH [09.2001 - 01.2004] CDE120,ZZE12# |
52012-13030 |
US $62.46 |
||
|
57101
|
57101
57101-13030 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [10.2001 - 01.2004] CDE120 |
57101-13030 |
US $1,014.83 |
||
|
57102
|
57102
57102-13030 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [10.2001 - 01.2004] CDE120 |
57102-13030 |
US $931.84 |
||
|
57111
|
57111
57111-13020 Member, Front Side, RhFRONT SIDE, RH [10.2001 - 01.2004] CDE120 |
57111-13020 |
US $202.38 |
||
|
57112
|
57112
57112-13030 Member, Front Side, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57112-13030 |
US $205.30 |
||
|
57113
|
57113
57113-13010 Extension, Front Side Member, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57113-13010 |
from US $27.23 |
||
|
57114
|
57114
57114-13010 Extension, Front Side Member, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57114-13010 |
from US $27.23 |
||
|
57115A
|
57115A
57115-12080 Plate, Front Side Member, Outer Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57115-12080 |
from US $80.08 |
||
|
57116A
|
57116A
57116-12080 Plate, Front Side Member, Outer Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57116-12080 |
US $74.26 |
||
|
57117
|
57117
57117-12130 Plate Sub-Assy, Front Side Member, Front Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57117-12130 |
from US $19.66 |
||
|
57118
|
57118
57118-12130 Plate Sub-Assy, Front Side Member, Front Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57118-12130 |
US $19.66 |
||
|
57141A
|
57141A
57013-13010 Support, Front Bumper Arm, RhFRONT BUMPER ARM, RH [09.2001 - 01.2004] CDE120,ZZE12# |
57013-13010 |
US $41.50 |
||
|
57142A
|
57142A
57014-13010 Support, Front Bumper Arm, LhFRONT BUMPER ARM, LH [09.2001 - 01.2004] CDE120,ZZE12# |
57014-13010 |
US $41.50 |
||
|
57153
|
57153
57016-12070 Reinforcement, Front Side Member, No.2 Rh[10.2001 - 01.2004] CDE120 |
57016-12070 |
US $56.49 |
||
|
57154
|
57154
57017-12050 Reinforcement Sub-Assy, Front Side Member, Lh[10.2001 - 01.2004] CDE120 |
57017-12050 |
US $41.64 |
||
|
57197
|
57197
57197-12030 Box, Torque, Front Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57197-12030 |
US $52.85 |
||
|
57198
|
57198
57198-12030 Box, Torque, Front Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57198-12030 |
US $52.85 |
||
|
57271
|
57271
57271-13020 Extension, Steering Gear Box Support Member, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57271-13020 |
US $47.76 |
||
|
57272
|
57272
57272-13020 Extension, Steering Gear Box Suport Member, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57272-13020 |
US $47.76 |
||
|
57411A
|
57411A
57401-13070 Member, Floor Side, Inner Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57401-13070 |
US $209.66 |
||
| replacement | |||||
|
57411A
|
57411A
57401-13090 Member, Floor Side, Inner Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57401-13090 |
US $215.49 |
||
|
57412A
|
57412A
57402-13050 Member, Floor Side, Inner Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57402-13050 |
US $209.66 |
||
| replacement | |||||
|
57412A
|
57412A
57402-13070 Member, Floor Side, Inner Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57402-13070 |
US $215.49 |
||
|
57601
|
57601
57601-13470 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [09.2001 - 01.2004] CDE120,ZZE12# |
57601-13470 |
US $626.08 |
||
|
57602
|
57602
57602-13460 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [09.2001 - 01.2004] CDE120,ZZE12# |
57602-13460 |
US $626.08 |
||
|
57605B
|
57605B
57605-13080 Member Sub-Assy, Rear Floor Cross, No.1REAR FLOOR CROSS, NO.1 [09.2001 - 01.2004] CDE120,ZZE12# |
57605-13080 |
US $285.38 |
||
|
57606C
|
57606C
57606-13160 Member Sub-Assy, Rear Floor Cross, No.2REAR FLOOR CROSS, NO.2 [09.2001 - 01.2004] CDE120,ZZE12# |
57606-13160 |
US $218.40 |
||
|
57615A
|
57615A
57615-13904 Member, Rear Floor Side, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57615-13904 |
US $88.82 |
||
|
57616A
|
57616A
57616-13906 Member, Rear Floor Side, Rear LhREAR FLOOR SIDE, REAR LH [09.2001 - 01.2004] CDE120,ZZE12# |
57616-13906 |
US $152.88 |
||
| replacement | |||||
|
57616A
|
57616A
57616-13910 Member, Rear Floor Side, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57616-13910 |
US $154.34 |
||
|
91645C0820
|
91645C0820
91645-C0820 New Genuine Part |
91645-C0820 |
US $8.01 |
||
| replacement | |||||
|
91645C0820
|
91645C0820
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
