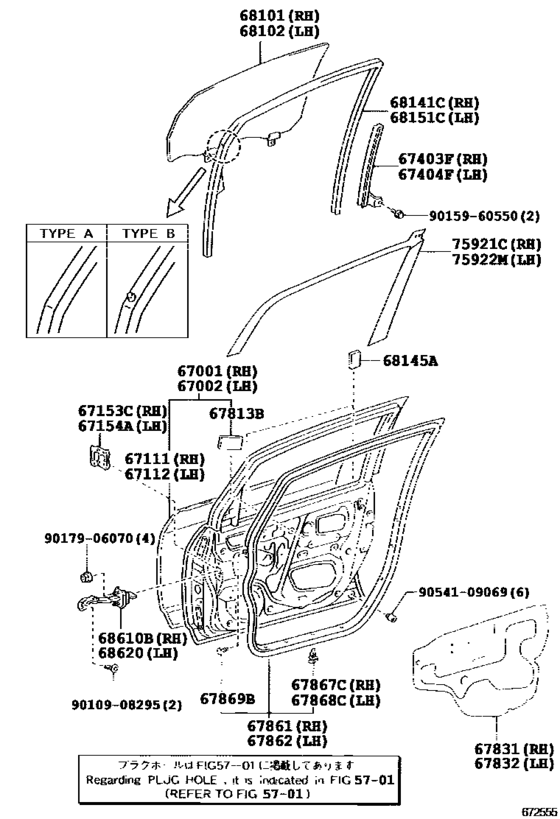

Front Door Panel & Glass ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-13130 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [09.2001 - 02.2002] CDE120,ZZE12# |
67001-13130 |
US $879.42 |
||
| replacement | |||||
|
67001
|
67001
67001-13131 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [09.2001 - 02.2002] CDE120,ZZE12# |
67001-13131 |
from US $730.12 |
||
|
67001
|
67001
67001-13131 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [02.2002 - 01.2004] CDE120,ZZE12# |
67001-13131 |
from US $730.12 |
||
|
67002
|
67002
67002-13110 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [09.2001 - 02.2002] CDE120,ZZE12# |
67002-13110 |
US $879.42 |
||
| replacement | |||||
|
67002
|
67002
67002-13111 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [09.2001 - 02.2002] CDE120,ZZE12# |
67002-13111 |
US $879.42 |
||
|
67002
|
67002
67002-13111 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [02.2002 - 01.2004] CDE120,ZZE12# |
67002-13111 |
US $879.42 |
||
|
67111
|
67111
67111-12670 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [09.2001 - 01.2004] CDE120,ZZE12# |
67111-12670 |
from US $224.54 |
||
|
67112
|
67112
67112-12660 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [09.2001 - 01.2004] CDE120,ZZE12# |
67112-12660 |
from US $224.54 |
||
|
67153C
|
67153C
67153-13010 Reinforcement, Front Door Inside, No.1FRONT DOOR INSIDE, NO.1 [08.2003 - 01.2004] CDE120,ZZE12# |
67153-13010 |
US $14.71 |
||
|
67154A
|
67154A
67154-13010 Reinforcement, Front Door Inside, No.2FRONT DOOR INSIDE, NO.2 [08.2003 - 01.2004] CDE120,ZZE12# |
67154-13010 |
US $14.71 |
||
|
67403F
|
67403F
67403-13020 Frame Sub-Assy, Front Door, Rear Lower Rh[09.2001 - 01.2004] CDE120,ZZE12# |
67403-13020 |
US $17.47 |
||
|
67404F
|
67404F
67404-13020 Frame Sub-Assy, Front Door, Rear Lower Lh[09.2001 - 01.2004] CDE120,ZZE12# |
67404-13020 |
US $17.47 |
||
|
67813B
|
67813B
67817-47010 Pad, Rear Door Silencer[09.2001 - 01.2004] CDE120,ZZE12# |
67817-47010 |
US $17.81 |
||
|
67831
|
67831
67831-13070 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [09.2001 - 01.2004] CDE120,ZZE12# |
67831-13070 |
US $37.13 |
||
|
67832
|
67832
67832-13050 Cover, Front Door Service Hole, LhFRONT DOOR SERVICE HOLE, LH [09.2001 - 01.2004] CDE120,ZZE12# |
67832-13050 |
US $37.13 |
||
|
67861
|
67861
67861-13030 Weatherstrip, Front Door, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
67861-13030 |
US $100.46 |
||
|
67862
|
67862
67862-13030 Weatherstrip, Front Door, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
67862-13030 |
US $100.46 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.2001 - 01.2004] CDE120,ZZE12# |
67867-12150 |
from US $1.79 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.2001 - 01.2004] CDE120,ZZE12# |
67867-12150 |
from US $1.79 |
||
|
67869B
|
67869B
67869-30020 Clip, Headlamp Door Filler[09.2001 - 01.2004] CDE120,ZZE12# |
67869-30020 |
US $3.94 |
||
|
68101
|
68101
68101-13080 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [09.2001 - 01.2004] CDE120,ZZE12# *TT,T=3.5,GREEN |
68101-13080 |
US $353.81 |
||
|
68102
|
68102
68102-13080 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [09.2001 - 01.2004] CDE120,ZZE12# *TT,T=3.5,GREEN |
68102-13080 |
US $353.81 |
||
|
68141C
|
68141C
68141-13140 Run, Front Door Glass, Rh[09.2001 - 04.2002] CDE120,ZZE12# TYPE A |
68141-13140 |
US $46.53 |
||
|
68141C
|
68141C
68141-13141 Run, Front Door Glass, Rh[04.2002 - 01.2004] CDE120,ZZE12# TYPE B |
68141-13141 |
US $52.27 |
||
|
68145A
|
68145A
69759-12110 Seal, Rear Door Frame[09.2001 - 01.2004] CDE120,ZZE12# |
69759-12110 |
US $4.30 |
||
|
68151C
|
68151C
68151-13040
Run, Front Door Glass, Lh
[09.2001 - 04.2002] CDE120,ZZE12# TYPE A |
68151-13040 |
— | ||
|
68151C
|
68151C
68151-13041 Run, Front Door Glass, Lh[04.2002 - 01.2004] CDE120,ZZE12# TYPE B |
68151-13041 |
US $52.27 |
||
|
68610B
|
68610B
68610-12170
Check Assy, Front Door, Rh
[09.2001 - 01.2004] CDE120,ZZE12# |
68610-12170 |
— | ||
|
68620
|
68620
68620-12100
Check Assy, Front Door, Lh
[09.2001 - 01.2004] CDE120,ZZE12# |
68620-12100 |
— | ||
|
75921C
|
75921C
75921-13010 Tape, Black Out, No.1 Rh[09.2001 - 01.2002] CDE120,ZZE12# |
75921-13010 |
US $84.45 |
||
| replacement | |||||
|
75921C
|
75921C
75921-13012 Tape, Black Out, No.1 Rh[09.2001 - 01.2002] CDE120,ZZE12# |
75921-13012 |
US $87.36 |
||
|
75921C
|
75921C
75921-13011 Tape, Black Out, No.1 Rh[01.2002 - 11.2003] CDE120,ZZE12# |
75921-13011 |
US $84.45 |
||
| replacement | |||||
|
75921C
|
75921C
75921-13012 Tape, Black Out, No.1 Rh[01.2002 - 11.2003] CDE120,ZZE12# |
75921-13012 |
US $87.36 |
||
|
75921C
|
75921C
75921-13012 Tape, Black Out, No.1 Rh[11.2003 - 01.2004] CDE120,ZZE12# |
75921-13012 |
US $87.36 |
||
|
75922M
|
75922M
75922-13010 Tape, Black Out, No.1 Lh[09.2001 - 01.2002] CDE120,ZZE12# |
75922-13010 |
US $84.45 |
||
| replacement | |||||
|
75922M
|
75922M
75922-13012 Tape, Black Out, No.1 Lh[09.2001 - 01.2002] CDE120,ZZE12# |
75922-13012 |
US $87.36 |
||
|
75922M
|
75922M
75922-13011 Tape, Black Out, No.1 Lh[01.2002 - 11.2003] CDE120,ZZE12# |
75922-13011 |
US $84.45 |
||
| replacement | |||||
|
75922M
|
75922M
75922-13012 Tape, Black Out, No.1 Lh[01.2002 - 11.2003] CDE120,ZZE12# |
75922-13012 |
US $87.36 |
||
|
75922M
|
75922M
75922-13012 Tape, Black Out, No.1 Lh[11.2003 - 01.2004] CDE120,ZZE12# |
75922-13012 |
US $87.36 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.61 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.22 |
||
