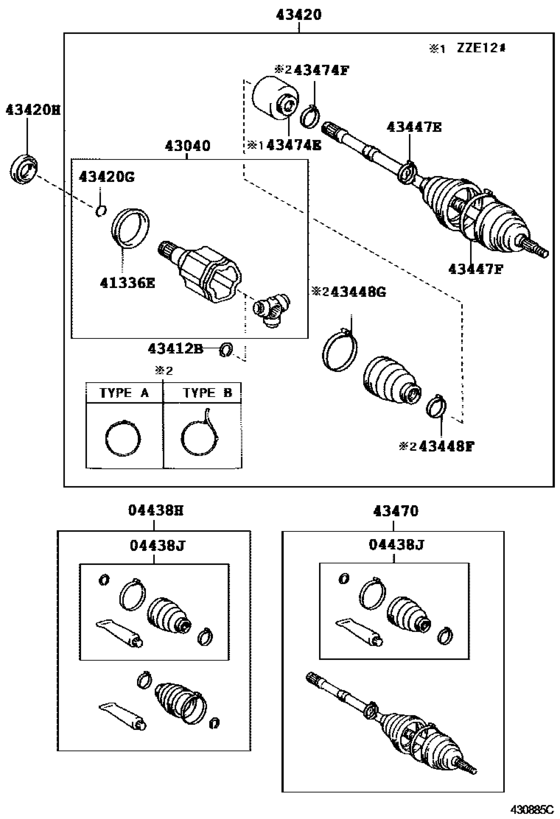

Front Drive Shaft ([09.2001 - ] LH (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-28051
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[10.2001 - 07.2002] CDE120 |
04438-28051 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-42070
Boot Kit, Front Drive Shaft, In & Outboard, LH
[10.2001 - 07.2002] CDE120 |
04428-42070 |
— | ||
|
04438H
|
04438H
04438-28052
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.2002 - 01.2004] CDE120 |
04438-28052 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-42070
Boot Kit, Front Drive Shaft, In & Outboard, LH
[07.2002 - 01.2004] CDE120 |
04428-42070 |
— | ||
|
04438J
|
04438J
04438-28040 Boot Kit, Front Drive Shaft Inboard Joint, Rh[10.2001 - 07.2002] CDE120 |
04438-28040 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[10.2001 - 07.2002] CDE120 |
04438-42180 |
from US $65.77 |
||
|
04438J
|
04438J
04438-28041
Boot Kit, Front Drive Shaft Inboard Joint
[07.2002 - 01.2004] CDE120 |
04438-28041 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[07.2002 - 01.2004] CDE120 |
04438-42180 |
from US $65.77 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[10.2001 - 01.2004] CDE120 |
41336-28020 |
from US $4.54 |
||
|
43040
|
43040
43040-28010 Joint Assy, Front Drive Inboard, Lh[10.2001 - 07.2002] CDE120 |
43040-28010 |
US $355.26 |
||
| replacement | |||||
|
43040
|
43040
43040-28011 Joint Assy, Front Drive Inboard, Lh[10.2001 - 07.2002] CDE120 |
43040-28011 |
from US $252.17 |
||
|
43040
|
43040
43040-28011 Joint Assy, Front Drive Inboard, Lh[08.2002 - 01.2004] CDE120 |
43040-28011 |
from US $252.17 |
||
|
43412B
|
43412B
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[10.2001 - 01.2004] CDE120 |
43425-28010 |
US $0.72 |
||
|
43420
|
43420
43420-13030
Shaft Assy, Front Drive, Lh
[10.2001 - 01.2004] CDE120 |
43420-13030 |
— | ||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[10.2001 - 01.2004] CDE120 |
90521-33002 |
from US $1.76 |
||
|
43420H
|
43420H
90311-50024
Oil Seal, Front Drive Shaft, Lh
[10.2001 - 01.2004] CDE120 |
90311-50024 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50047 Seal, Oil(For Transmission Case)[10.2001 - 01.2004] CDE120 |
90311-50047 |
from US $9.32 |
||
|
43447E
|
43447E
42345-20040 Clamp (For Front Axle Outboard Joint Boot Rh)[10.2001 - 01.2004] CDE120 ID=33.9 |
42345-20040 |
US $4.22 |
||
| replacement | |||||
|
43447E
|
43447E
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [10.2001 - 01.2004] CDE120 ID=33.9 |
42345-42100 |
US $3.94 |
||
|
43447F
|
43447F
42345-28020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[10.2001 - 01.2004] CDE120 ID=98.6 |
42345-28020 |
US $6.84 |
||
| replacement | |||||
|
43447F
|
43447F
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [10.2001 - 01.2004] CDE120 ID=98.6 |
42345-42090 |
from US $5.40 |
||
|
43448F
|
43448F
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [04.2002 - 01.2004] CDE120 TYPE A:REFER TO ILLUSTRATION |
42345-42010 |
from US $1.60 |
||
|
43448F
|
43448F
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[10.2001 - 04.2002] CDE120 |
90949-01559 |
US $5.73 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [04.2002 - 01.2004] CDE120,ZZE12# TYPE A:REFER TO ILLUSTRATION |
42345-12160 |
from US $4.43 |
||
|
43448G
|
43448G
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[10.2001 - 01.2004] CDE120 TYPE B:REFER TO ILLUSTRATION; ZZE12# TYPE B:REFER TO ILLUSTRATION,ORANGE MARK |
90949-01076 |
— | ||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [10.2001 - 01.2004] CDE120 TYPE B:REFER TO ILLUSTRATION; ZZE12# TYPE B:REFER TO ILLUSTRATION,ORANGE MARK |
42345-12160 |
from US $4.43 |
||
|
43470
|
43470
43470-80013 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [10.2001 - 07.2002] CDE120 |
43470-80013 |
US $637.73 |
||
| replacement | |||||
|
43470
|
43470
43470-80029 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [10.2001 - 07.2002] CDE120 |
43470-80029 |
US $637.73 |
||
|
43470
|
43470
43470-80029 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [07.2002 - 01.2004] CDE120 |
43470-80029 |
US $637.73 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[10.2001 - 01.2004] CDE120 |
42345-14010 |
US $12.54 |
||
