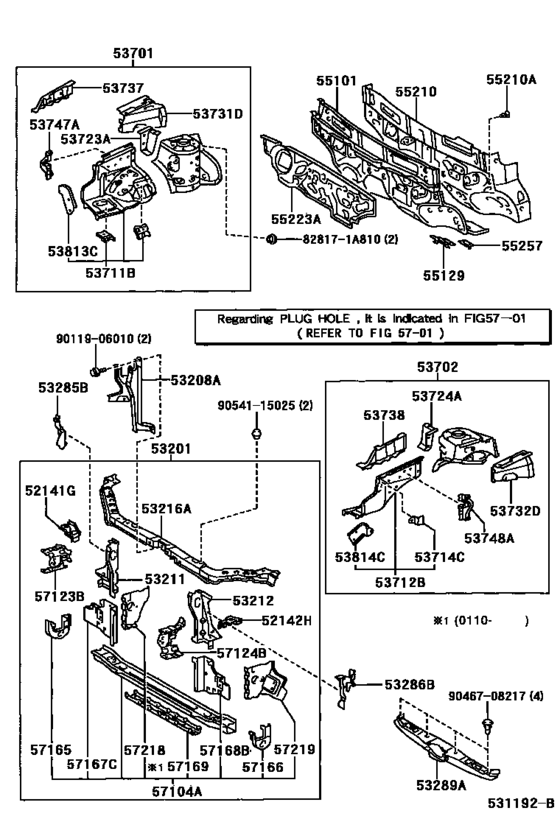

Front Fender Apron & Dash Panel ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-13040 Stay, Front Bumper, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
52141-13040 |
US $20.68 |
||
|
52142H
|
52142H
52142-13040 Stay, Front Bumper, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
52142-13040 |
US $20.68 |
||
|
53201
|
53201
53201-13050 Support Sub-Assy, RadiatorRADIATOR [09.2001 - 01.2004] CDE120,ZZE12# |
53201-13050 |
US $396.03 |
||
|
53208A
|
53208A
53208-13050 Support Sub-Assy, Hood Lock[09.2001 - 01.2004] CDE120,ZZE12# |
53208-13050 |
US $47.90 |
||
|
53211
|
53211
53211-12410 Support, Radiator, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53211-12410 |
US $24.32 |
||
|
53212
|
53212
53212-12350 Support, Radiator, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53212-12350 |
from US $22.25 |
||
|
53216A
|
53216A
53216-13900 Support, Radiator, Upper[09.2001 - 01.2004] CDE120,ZZE12# |
53216-13900 |
US $110.66 |
||
|
53285B
|
53285B
53285-13010 Seal, Radiator Side Air, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
53285-13010 |
US $9.90 |
||
|
53286B
|
53286B
53286-13010 Seal, Radiator Side Air, No.2[09.2001 - 01.2004] CDE120,ZZE12# |
53286-13010 |
US $12.67 |
||
|
53289A
|
53289A
53289-13010 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [09.2001 - 01.2004] CDE120,ZZE12# |
53289-13010 |
US $56.06 |
||
|
53701
|
53701
53701-13040 Apron Sub-Assy, Front Fender, Rh[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
53701-13040 |
US $308.67 |
||
|
53702
|
53702
53702-13030 Apron Sub-Assy, Front Fender, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53702-13030 |
US $308.67 |
||
|
53711B
|
53711B
53711-13900 Apron, Front Fender, Front Rh[09.2001 - 05.2002] CDE120,ZZE12# |
53711-13900 |
US $88.82 |
||
| replacement | |||||
|
53711B
|
53711B
53711-13902 Apron, Front Fender, Front Rh[09.2001 - 05.2002] CDE120,ZZE12# |
53711-13902 |
US $88.82 |
||
|
53711B
|
53711B
53711-13902 Apron, Front Fender, Front Rh[05.2002 - 01.2004] CDE120,ZZE12# |
53711-13902 |
US $88.82 |
||
|
53712B
|
53712B
53712-13900 Apron, Front Fender, Front Lh[09.2001 - 05.2002] CDE120,ZZE12# |
53712-13900 |
US $88.82 |
||
| replacement | |||||
|
53712B
|
53712B
53712-13902 Apron, Front Fender, Front Lh[09.2001 - 05.2002] CDE120,ZZE12# |
53712-13902 |
US $88.82 |
||
|
53712B
|
53712B
53712-13902 Apron, Front Fender, Front Lh[05.2002 - 01.2004] CDE120,ZZE12# |
53712-13902 |
US $88.82 |
||
|
53714C
|
53714C
53714-12150 Extension, Front Fender Apron, Front Lh[09.2001 - 05.2002] CDE120,ZZE12# |
53714-12150 |
US $4.80 |
||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[05.2002 - 01.2004] CDE120,ZZE12# |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-13020 Plate, Front Apron To Cowl Side Member, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53737-13020 |
US $28.54 |
||
|
53738
|
53738
53738-13020 Plate, Front Apron To Cowl Side Member, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53738-13020 |
US $28.54 |
||
|
53747A
|
53747A
53747-13010 Extension, Apron Fender Side, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53747-13010 |
US $16.31 |
||
|
53748A
|
53748A
53748-13010 Extension, Apron Fender Side, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53748-13010 |
US $16.31 |
||
|
53813C
|
53813C
53813-13010 Extension, Front Fender, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53813-13010 |
US $9.03 |
||
|
53814C
|
53814C
53814-13010 Extension, Front Fender, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53814-13010 |
US $7.86 |
||
|
55101
|
55101
55101-13160 Panel Sub-Assy, DashDASH [10.2001 - 01.2004] CDE120..RHD |
55101-13160 |
US $468.83 |
||
| replacements | |||||
|
55101
|
55101
55101-13150 Panel Sub-Assy, DashDASH [10.2001 - 01.2004] CDE120..RHD |
55101-13150 |
US $468.83 |
||
|
55101
|
55101
90333-15002 PLUG[10.2001 - 01.2004] CDE120..RHD |
90333-15002 |
US $1.61 |
||
|
55101
|
55101
90333-25003 Plug, Hole(For Hood)[10.2001 - 01.2004] CDE120..RHD |
90333-25003 |
from US $1.25 |
||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[09.2001 - 01.2004] CDE120,ZZE12# RH |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[09.2001 - 01.2004] CDE120,ZZE12# LH |
55139-32010 |
US $5.68 |
||
|
55210
|
55210
55210-13040 Insulator Assy, Dash Panel[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
55210-13040 |
US $334.88 |
||
|
55210A
|
55210A
90467-10005-B0 Clip[09.2001 - 11.2001] CDE120,ZZE12#..SOL MD.CHARCOAL,TRIM0#,1#; CDE120,ZZE12#..TERRA MD.CHARCOAL,TRIM1# |
90467-10005-B0 |
US $3.58 |
||
|
55210A
|
55210A
90467-10005-C0 Clip[11.2001 - 01.2004] CDE120,ZZE12#..SOL BLACK,TRIM0#,1#; CDE120,ZZE12#..TERRA BLACK,TRIM1# |
90467-10005-C0 |
from US $1.33 |
||
|
55223A
|
55223A
55223-12140 Insulator, Dash Panel, Outer[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
55223-12140 |
US $113.57 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[09.2001 - 01.2004] CDE120,ZZE12# |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12170 Member Sub-Assy, Front Cross[10.2001 - 11.2001] CDE120,ZZE12# |
57104-12170 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-12250 Member Sub-Assy, Front Cross[10.2001 - 11.2001] CDE120,ZZE12# |
57104-12250 |
US $251.89 |
||
|
57104A
|
57104A
57104-12250 Member Sub-Assy, Front Cross[11.2001 - 01.2004] CDE120,ZZE12# |
57104-12250 |
US $251.89 |
||
|
57123B
|
57123B
57123-13010 Support, Front Side Member, RhFRONT SIDE MEMBER, RH [09.2001 - 01.2004] CDE120,ZZE12# |
57123-13010 |
US $18.20 |
||
|
57124B
|
57124B
57124-13010 Support, Front Side Member, LhFRONT SIDE MEMBER, LH [09.2001 - 01.2004] CDE120,ZZE12# |
57124-13010 |
US $18.20 |
||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12110 Gusset, Front Crossmember Side, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
57167-12110 |
US $26.21 |
||
|
57168B
|
57168B
57168-12110 Gusset, Front Crossmember Side, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
57168-12110 |
from US $23.59 |
||
|
57169
|
57169
57169-12020 Member, Front Floor, Front Rh[10.2001 - 01.2004] CDE120,ZZE12# |
57169-12020 |
US $39.89 |
||
|
57218
|
57218
57218-12020 Gusset, Front Side Member, No.1[10.2001 - 08.2002] CDE120,ZZE12# |
57218-12020 |
US $18.05 |
||
|
57218
|
57218
57218-12030 Gusset, Front Side Member, No.1[08.2002 - 01.2004] CDE120,ZZE12# |
57218-12030 |
US $12.38 |
||
|
57219
|
57219
57219-12010 Gusset, Front Side Member, No.2[09.2001 - 08.2002] CDE120,ZZE12# |
57219-12010 |
US $11.21 |
||
|
57219
|
57219
57219-12030 Gusset, Front Side Member, No.2[08.2002 - 01.2004] CDE120,ZZE12# |
57219-12030 |
US $12.38 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.94 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.90 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.57 |
||
