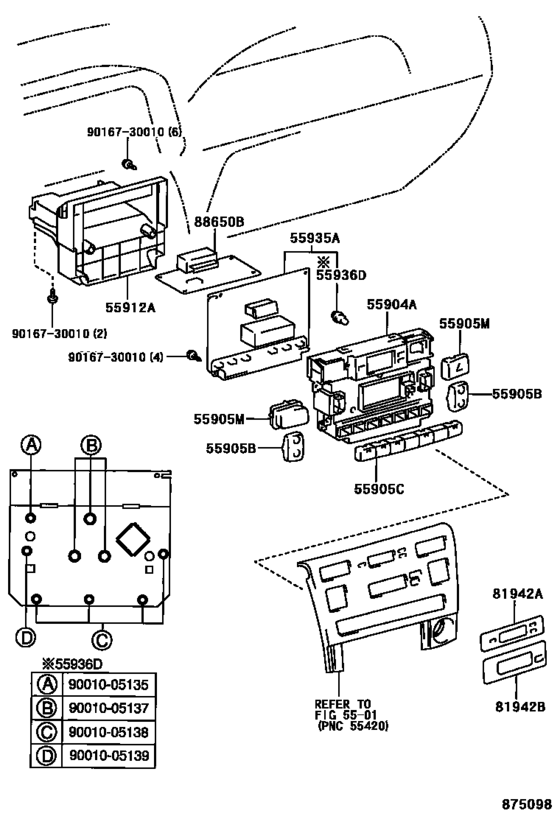

Heating & Air Conditioning - Control & Air Duct ([09.2001 - ] CONTROL PANEL--AUTO AIR CONDITIONER (0109- )SOL) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55904A
|
55904A
55904-12010 Housing Sub-Assy, Heater Control[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
55904-12010 |
US $126.28 |
||
|
55905B
|
55905B
55905-12670 Knob, Heater Control, No.2[09.2001 - 01.2004] CDE120,ZZE12#..SOL BLOWER |
55905-12670 |
US $9.32 |
||
|
55905B
|
55905B
55905-12680 Knob, Heater Control, No.2[09.2001 - 01.2004] CDE120,ZZE12#..SOL TEMP |
55905-12680 |
US $9.32 |
||
|
55905C
|
55905C
55905-12690 Knob, Heater Control, No.3[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
55905-12690 |
US $36.81 |
||
|
55905M
|
55905M
55905-12660 Knob Sub-Assy, Control[09.2001 - 01.2004] CDE120,ZZE12#..SOL HAZARD |
55905-12660 |
US $9.32 |
||
|
55905M
|
55905M
55905-12720 Knob Sub-Assy, ControlCONTROL [09.2001 - 01.2004] CDE120,ZZE12#..SOL SECURITY |
55905-12720 |
US $7.28 |
||
|
55912A
|
55912A
55912-12070 Housing, Heater ControlHEATER CONTROL [09.2001 - 01.2004] CDE120,ZZE12#..SOL |
55912-12070 |
US $39.17 |
||
|
55935A
|
55935A
55935-12120
Circuit, Center Cluster Module
[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
55935-12120 |
— | ||
|
55936D
|
55936D
90010-05135 Bulb, Air Conditioner Control[09.2001 - 01.2004] CDE120,ZZE12#..SOL 14V 0.91W,TYPE A:REFER TO ILLUSTRATION |
90010-05135 |
from US $5.07 |
||
|
55936D
|
55936D
90010-05137 Blub, Center Cluster Module Switch[09.2001 - 01.2004] CDE120,ZZE12#..SOL 14V 1.12W,TYPE B:REFER TO ILLUSTRATION |
90010-05137 |
US $7.69 |
||
|
55936D
|
55936D
90010-05138 Blub, Center Cluster Module Switch[09.2001 - 01.2004] CDE120,ZZE12#..SOL 14V 1.12W,TYPE C:REFER TO ILLUSTRATION |
90010-05138 |
US $7.69 |
||
|
55936D
|
55936D
90010-05139 Blub, Center Cluster Module Switch[09.2001 - 01.2004] CDE120,ZZE12#..SOL 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
90010-05139 |
US $7.69 |
||
|
81942A
|
81942A
81942-13040 Sheet, Heater Control Name, No.1[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
81942-13040 |
US $18.35 |
||
|
81942B
|
81942B
81942-12650 Sheet, Heater Control Name, No.2[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
81942-12650 |
US $18.35 |
||
| replacement | |||||
|
81942B
|
81942B
81942-12820 Sheet, Heater Control Name, No.2[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
81942-12820 |
US $18.17 |
||
|
88650B
|
88650B
88650-13030
Amplifier Assy, Airconditioner
[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
88650-13030 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
