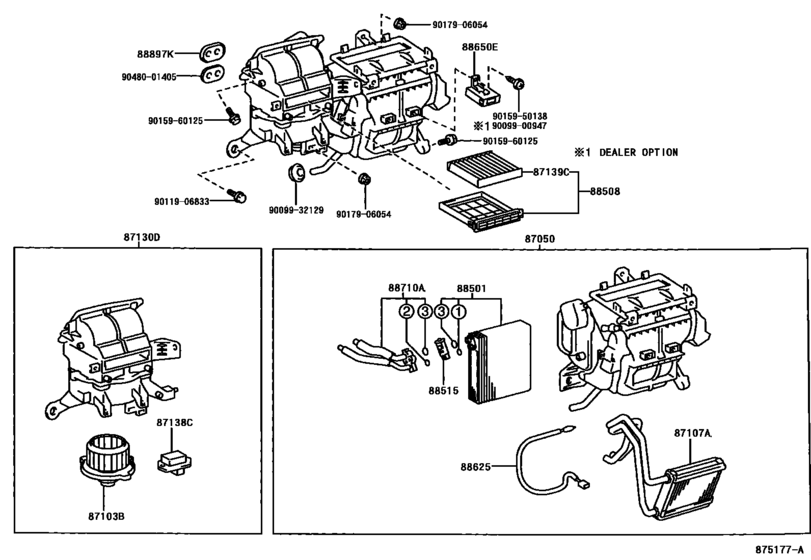

Heating & Air Conditioning - Cooler Unit ([09.2001 - ] MANUAL AIR CONDITIONER (0109- )RHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-13020 Radiator Assy, Air ConditionerAIR CONDITIONER [10.2001 - 01.2004] CDE120..RHD W/O(COOLER) |
87050-13020 |
US $867.78 |
||
|
87050
|
87050
87050-13040 Radiator Assy, Air ConditionerAIR CONDITIONER [10.2001 - 01.2004] CDE120..RHD..SOL W(COOLER) |
87050-13040 |
US $1,907.36 |
||
|
87103B
|
87103B
87103-12050 Motor Sub-Assy, Blower W/fan[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
87103-12050 |
US $219.39 |
||
|
87107A
|
87107A
87107-13010
Unit Sub-Assy, Heater Radiator
[10.2001 - 01.2004] CDE120..RHD |
87107-13010 |
— | ||
|
87130D
|
87130D
87130-12440
Blower Assy
[09.2001 - 01.2004] CDE120,ZZE12#..RHD MANUAL AIR CONDITIONER |
87130-12440 |
— | ||
|
87130D
|
87130D
87130-12450
Blower Assy
[09.2001 - 01.2004] CDE120,ZZE12#..RHD..SOL AUTO AIR CONDITIONER |
87130-12450 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-13030
Blower Assy
[09.2001 - 01.2004] CDE120,ZZE12#..RHD..SOL AUTO AIR CONDITIONER |
87130-13030 |
— | ||
|
87138C
|
87138C
87138-20350
Resistor, Blower
[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
87138-20350 |
— | ||
|
87139C
|
87139C
88568-13010
Filter, Clean Air
[09.2001 - 01.2004] CDE120,ZZE12# |
88568-13010 |
— | ||
|
88501
|
88501
88501-12440 Evaporator Sub-Assy, Cooler, No.1[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
88501-12440 |
US $490.96 |
||
|
88508
|
88508
88508-13010 Filter Sub-Assy, Clean AirCLEAN AIR [09.2001 - 01.2004] CDE120,ZZE12# |
88508-13010 |
US $88.80 |
||
|
88515
|
88515
88515-27020 Valve, Cooler Expansion[02.2003 - 08.2003] CDE120,ZZE12# |
88515-27020 |
US $138.32 |
||
| replacement | |||||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[02.2003 - 08.2003] CDE120,ZZE12# |
88515-28160 |
from US $67.28 |
||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[08.2003 - 01.2004] CDE120,ZZE12# |
88515-28160 |
from US $67.28 |
||
|
88515
|
88515
88515-48040 Valve, Cooler Expansion[09.2001 - 02.2003] CDE120,ZZE12# |
88515-48040 |
from US $125.56 |
||
|
88625
|
88625
88625-60140 Thermistor, Cooler, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
88625-60140 |
US $10.51 |
||
|
88650E
|
88650E
88650-1E410
Amplifier Assy, Air Conditioner, No.1
[10.2001 - 01.2004] CDE120 |
88650-1E410 |
— | ||
|
88710A
|
88710A
88710-12540 Tube Assy, Air Conditioner[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
88710-12540 |
US $108.24 |
||
|
88897K
|
88897K
90480-01434 Grommet, (For Cooler Pipe)[09.2001 - 01.2004] CDE120,ZZE12# |
90480-01434 |
US $4.54 |
||
|
9009900947
|
9009900947
90099-00947
New Genuine Part
|
90099-00947 |
— | ||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
||
