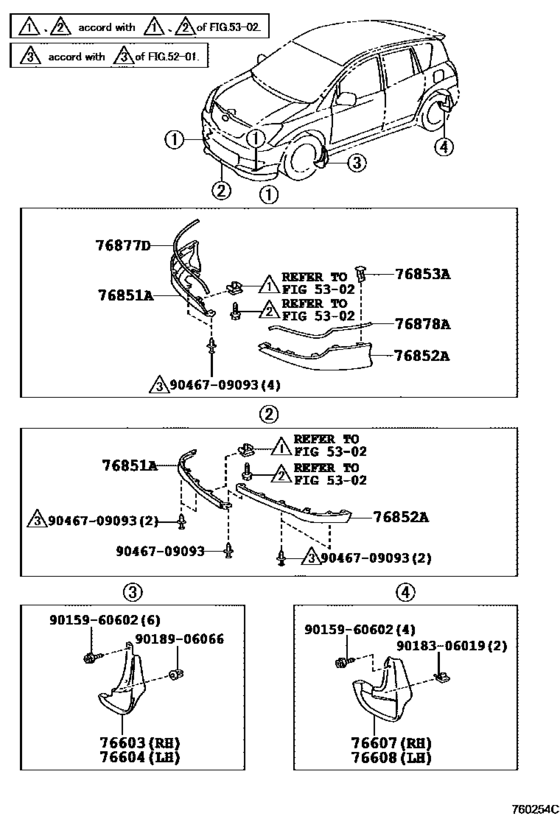

Mudguard & Spoiler ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76621-12210
Mudguard Sub-Assy, Front Fender, Rh
[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
76621-12210 |
— | ||
|
76604
|
76604
76622-12210
Mudguard Sub-Assy, Front Fender, Lh
[09.2001 - 01.2004] CDE120,ZZE12#..SOL |
76622-12210 |
— | ||
|
76607
|
76607
76625-13110
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[09.2001 - 01.2004] CDE120,ZZE12#..SOL UNPAINTED |
76625-13110 |
— | ||
|
76607
|
76607
76625-13120-A0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12#..SOL SUPER WHITE 2,040 |
76625-13120-A0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-B0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12#..SOL SILVER ME.GR.,1D9 |
76625-13120-B0 |
from US $82.99 |
||
|
76607
|
76607
76625-13120-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.2003 - 01.2004] CDE120,ZZE12#..SOL SILVER M.M.,1E7 |
76625-13120-B2 |
US $82.99 |
||
|
76607
|
76607
76625-13120-C0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 04.2003] CDE120,ZZE12#..SOL BLACK ME,205 |
76625-13120-C0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-C1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.2003 - 01.2004] CDE120,ZZE12#..SOL BLACK MC.,209 |
76625-13120-C1 |
US $82.99 |
||
|
76607
|
76607
76625-13120-D0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12#..SOL RED M.M.,3N8 |
76625-13120-D0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-D1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12#..SOL BORDEAUX MC.,3P2 |
76625-13120-D1 |
US $82.99 |
||
|
76607
|
76607
76625-13120-F0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 04.2003] CDE120,ZZE12#..SOL GOLD ME.,585 |
76625-13120-F0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-G0 Mudguard Sub-Assy, Quarter Panel, Rear RhQUARTER PANEL, REAR RH [09.2001 - 01.2004] CDE120,ZZE12#..SOL DARK GREEN MC.,6R4 |
76625-13120-G0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-H0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.2003 - 01.2004] CDE120,ZZE12#..SOL LT.AQUA ME.OP.,761 |
76625-13120-H0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-J0 Mudguard Sub-Assy, Quarter Panel, Rear RhQUARTER PANEL, REAR RH [09.2001 - 01.2004] CDE120,ZZE12#..SOL GRAYISH BLUE ME.,8N6 |
76625-13120-J0 |
US $82.99 |
||
|
76607
|
76607
76625-13120-J1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 01.2004] CDE120,ZZE12#..SOL DK.BLUE M.M.,8P4 |
76625-13120-J1 |
US $82.99 |
||
|
76607
|
76607
76625-13120-J2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[09.2001 - 04.2003] CDE120,ZZE12#..SOL BLUE M.M.,8Q1 |
76625-13120-J2 |
US $82.99 |
||
|
76608
|
76608
76626-13110
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[09.2001 - 01.2004] CDE120,ZZE12#..SOL UNPAINTED |
76626-13110 |
— | ||
|
76608
|
76608
76626-13120-A0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12#..SOL SUPER WHITE 2,040 |
76626-13120-A0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-B0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12#..SOL SILVER ME.GR.,1D9 |
76626-13120-B0 |
from US $82.99 |
||
|
76608
|
76608
76626-13120-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.2003 - 01.2004] CDE120,ZZE12#..SOL SILVER M.M.,1E7 |
76626-13120-B2 |
US $82.99 |
||
|
76608
|
76608
76626-13120-C0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 04.2003] CDE120,ZZE12#..SOL BLACK ME,205 |
76626-13120-C0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-C1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.2003 - 01.2004] CDE120,ZZE12#..SOL BLACK MC.,209 |
76626-13120-C1 |
US $82.99 |
||
|
76608
|
76608
76626-13120-D0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12#..SOL RED M.M.,3N8 |
76626-13120-D0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-D1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12#..SOL BORDEAUX MC.,3P2 |
76626-13120-D1 |
US $82.99 |
||
|
76608
|
76608
76626-13120-F0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 04.2003] CDE120,ZZE12#..SOL GOLD ME.,585 |
76626-13120-F0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-G0 Mudguard Sub-Assy, Quarter Panel, Rear LhQUARTER PANEL, REAR LH [09.2001 - 01.2004] CDE120,ZZE12#..SOL DARK GREEN MC.,6R4 |
76626-13120-G0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-H0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.2003 - 01.2004] CDE120,ZZE12#..SOL LT.AQUA ME.OP.,761 |
76626-13120-H0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-J0 Mudguard Sub-Assy, Quarter Panel, Rear LhQUARTER PANEL, REAR LH [09.2001 - 01.2004] CDE120,ZZE12#..SOL GRAYISH BLUE ME.,8N6 |
76626-13120-J0 |
US $82.99 |
||
|
76608
|
76608
76626-13120-J1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 01.2004] CDE120,ZZE12#..SOL DK.BLUE M.M.,8P4 |
76626-13120-J1 |
US $82.99 |
||
|
76608
|
76608
76626-13120-J2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[09.2001 - 04.2003] CDE120,ZZE12#..SOL BLUE M.M.,8Q1 |
76626-13120-J2 |
US $82.99 |
||
|
76851A
|
76851A
76851-13080 Cover, Front Spoiler, RhFRONT SPOILER, RH [09.2001 - 01.2004] CDE120,ZZE12# TYPE B:REFER TO ILLUSTRATION |
76851-13080 |
US $126.67 |
||
|
76852A
|
76852A
76852-13060 Cover, Front Spoiler, LhFRONT SPOILER, LH [09.2001 - 01.2004] CDE120,ZZE12# TYPE B:REFER TO ILLUSTRATION |
76852-13060 |
US $126.67 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.74 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.70 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $1.72 |
