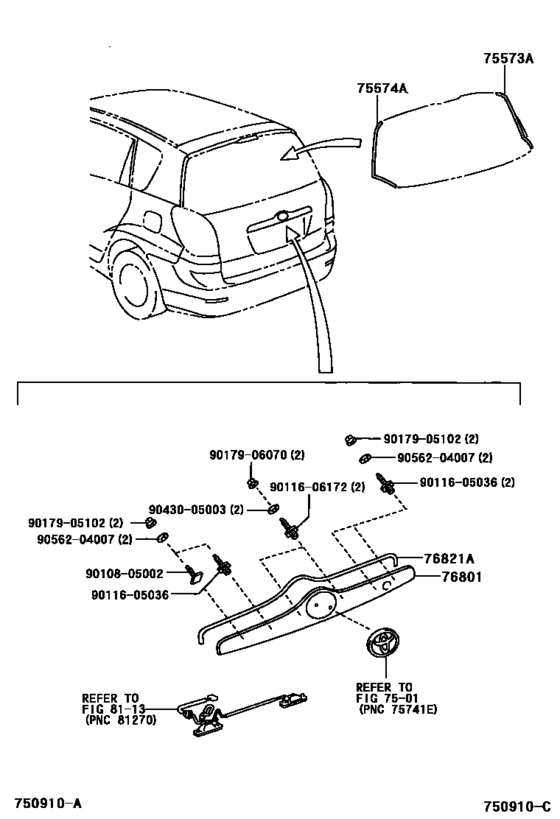

Rear Moulding ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75573A
|
75573A
75573-13080 Moulding, Back Window, Outside Rh[10.2001 - 01.2004] CDE120,ZZE12# |
75573-13080 |
US $20.68 |
||
|
75574A
|
75574A
75574-13030 Moulding, Back Window, Outside Lh[10.2001 - 01.2004] CDE120,ZZE12# |
75574-13030 |
from US $17.36 |
||
|
76801
|
76801
76811-13110-A0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# SUPER WHITE 2,040 |
76811-13110-A0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# SUPER WHITE 2,040 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# SILVER ME.GR.,1D9 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-B2 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.2003 - 01.2004] CDE120,ZZE12# SILVER M.M.,1E7 |
76811-13110-B2 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[04.2003 - 01.2004] CDE120,ZZE12# SILVER M.M.,1E7 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-C0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
76811-13110-C0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# BLACK ME,205 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-C1 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.2003 - 01.2004] CDE120,ZZE12# BLACK MC.,209 |
76811-13110-C1 |
US $141.23 |
||
|
76801
|
76801
76811-13110-D0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# RED M.M.,3N8 |
76811-13110-D0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# RED M.M.,3N8 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-D1 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# BORDEAUX MC.,3P2 |
76811-13110-D1 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# BORDEAUX MC.,3P2 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-F0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# GOLD ME.,585 |
76811-13110-F0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# GOLD ME.,585 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-G0 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [09.2001 - 01.2004] CDE120,ZZE12# DARK GREEN MC.,6R4 |
76811-13110-G0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# DARK GREEN MC.,6R4 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-H0 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.2003 - 01.2004] CDE120,ZZE12# LT.AQUA ME.OP.,761 |
76811-13110-H0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-J0 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [09.2001 - 01.2004] CDE120,ZZE12# GRAYISH BLUE ME.,8N6 |
76811-13110-J0 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# GRAYISH BLUE ME.,8N6 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-J1 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [09.2001 - 01.2004] CDE120,ZZE12# DK.BLUE M.M.,8P4 |
76811-13110-J1 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 01.2004] CDE120,ZZE12# DK.BLUE M.M.,8P4 |
76811-13110-B0 |
US $141.23 |
||
|
76801
|
76801
76811-13110-J2 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# BLUE M.M.,8Q1 |
76811-13110-J2 |
US $141.23 |
||
| replacement | |||||
|
76801
|
76801
76811-13110-B0 Garnish Sub-Assy, Back Door, Outside[09.2001 - 04.2003] CDE120,ZZE12# BLUE M.M.,8Q1 |
76811-13110-B0 |
US $141.23 |
||
|
76821A
|
76821A
76821-13040 Protector, Luggage Compartment Door Outside Garnish[09.2001 - 01.2004] CDE120,ZZE12# |
76821-13040 |
US $1.60 |
||
|
9010805002
|
9010805002
90108-05002 BOLT SQUARE |
90108-05002 |
from US $0.64 |
||
|
9011605036
|
9011605036
90116-05036 Bolt(For Garnish Setting) |
90116-05036 |
from US $1.60 |
||
|
9011606172
|
9011606172
90116-06172 BOLT STUD |
90116-06172 |
from US $0.74 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.76 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043005003
|
9043005003
90430-05003 GASKET |
90430-05003 |
from US $0.62 |
||
|
9056204007
|
9056204007
90562-04007 RING |
90562-04007 |
US $1.43 |
||
