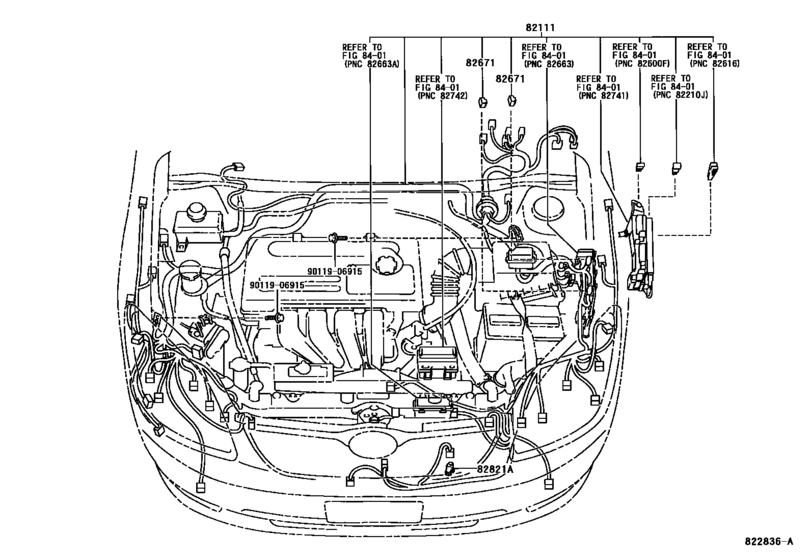

Wiring & Clamp ([09.2001 - ] ENGINE ROOM (0109- )RHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-13730 Wire, Engine Room MainENGINE ROOM MAIN [10.2001 - 01.2004] CDE120..RHD |
82111-13730 |
US $1,189.55 |
||
|
82671
|
82671
82671-30360 Block, Junction[09.2001 - 01.2004] CDE120,ZZE12# |
82671-30360 |
US $8.04 |
||
|
82821A
|
82821A
82821-10050 Retainer, Headlamp Harness[09.2001 - 01.2004] CDE120,ZZE12# |
82821-10050 |
US $2.33 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
