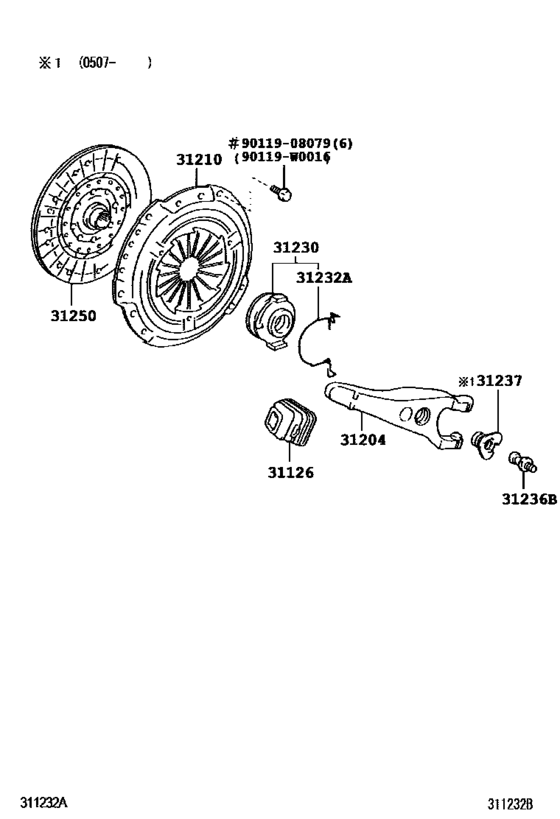

Clutch & Release Fork ([02.2004 - ] (0402- )CUR10) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[02.2004 - 05.2007] AUR10,CUR10 |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [02.2004 - 08.2005] CUR10 |
31204-20131 |
US $82.99 |
||
|
31210
|
31210
31210-05050
Cover Assy, Clutch
[02.2004 - 08.2005] CUR10 |
31210-05050 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-05051
Cover Assy, Clutch
[02.2004 - 08.2005] CUR10 |
31210-05051 |
— | ||
|
31230
|
31230
31230-20191 Bearing Assy, Clutch Release[02.2004 - 08.2005] CUR10 |
31230-20191 |
from US $27.66 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[02.2004 - 05.2007] AUR10,CUR10 |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[02.2004 - 05.2007] AUR10,CUR10 |
31236-20080 |
— | ||
|
31237
|
31237
31237-20010
Boot, Clutch Release Fork Support
[07.2005 - 08.2005] CUR10 |
31237-20010 |
— | ||
|
31250
|
31250
31250-05070 Disc Assy, ClutchCLUTCH [02.2004 - 08.2005] CUR10 |
31250-05070 |
US $103.08 |
||
|
90119W0016
|
90119W0016
90119-W0016
Bolt (For Transmission Control Cable Bracket)
|
90119-W0016 |
— | ||
| replacement | |||||
|
90119W0016
|
90119W0016
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
