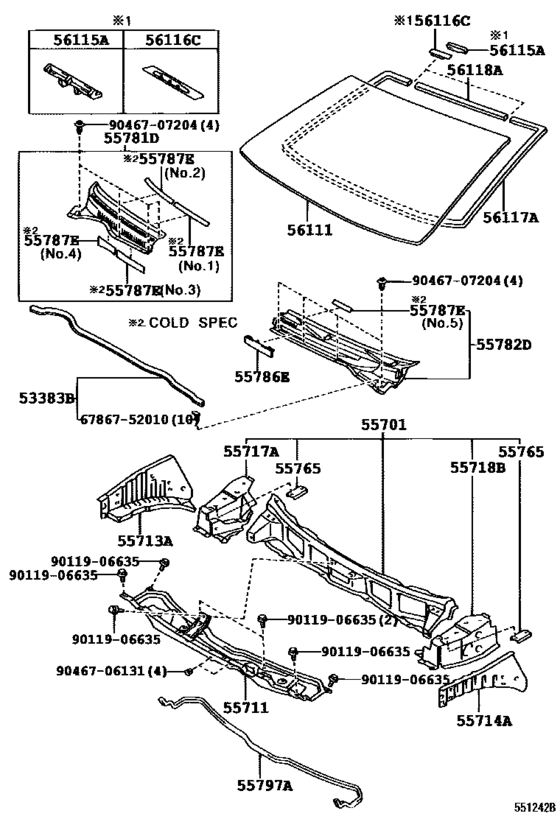

Cowl Panel & Windshield Glass ([02.2004 - ] (0402- )LHD) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-0F010
Seal, Hood To Cowl Top
[02.2004 - 08.2005] CUR10 |
53383-0F010 |
— | ||
|
55701
|
55701
55700-0F010
Panel Sub-Assy, Cowl
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD |
55700-0F010 |
— | ||
|
55711
|
55711
55701-0F010
Panel, Cowl Top, Outer
[02.2004 - 07.2005] CUR10,ZNR1#..LHD |
55701-0F010 |
— | ||
| replacement | |||||
|
55711
|
55711
55701-0F011
Panel, Cowl Top, Outer
[02.2004 - 07.2005] CUR10,ZNR1#..LHD |
55701-0F011 |
— | ||
|
55713A
|
55713A
55713-0F010
Panel, Cowl Top Side, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
55713-0F010 |
— | ||
|
55714A
|
55714A
55714-0F010
Panel, Cowl Top Side, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
55714-0F010 |
— | ||
|
55717A
|
55717A
55717-0F010
Panel, Cowl Top Side, Inner Rh
[02.2004 - 08.2005] CUR10 |
55717-0F010 |
— | ||
|
55718B
|
55718B
55718-0F010
Panel, Cowl Top Side, Inner Lh
[02.2004 - 08.2005] CUR10 |
55718-0F010 |
— | ||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[02.2004 - 08.2005] CUR10 |
55765-44010 |
US $4.96 |
||
|
55781D
|
55781D
55708-0F010
Louver, Cowl Top Ventilator, Rh
[02.2004 - 08.2005] CUR10..LHD |
55708-0F010 |
— | ||
|
55781D
|
55781D
55708-0F020
Louver, Cowl Top Ventilator, Rh
[02.2004 - 08.2005] CUR10..LHD COLD SPEC |
55708-0F020 |
— | ||
|
55782D
|
55782D
55709-0F010
Louver, Cowl Top Ventilator, Lh
[02.2004 - 08.2005] CUR10..LHD |
55709-0F010 |
— | ||
|
55782D
|
55782D
55709-0F020
Louver, Cowl Top Ventilator, Lh
[02.2004 - 08.2005] CUR10..LHD COLD SPEC |
55709-0F020 |
— | ||
|
55786E
|
55786E
55786-0F010
Plate, Cowl Top Ventilator Louver
[02.2004 - 08.2005] CUR10 |
55786-0F010 |
— | ||
|
55787E
|
55787E
55787-0F010
Net, Cowl Top Ventilator Louver, Center No.1
[02.2004 - 08.2005] CUR10..LHD COLD SPEC,NO.1 |
55787-0F010 |
— | ||
|
55787E
|
55787E
55787-0F020
Net, Cowl Top Ventilator Louver, Center No.1
[02.2004 - 08.2005] CUR10..LHD COLD SPEC,NO.2 |
55787-0F020 |
— | ||
|
55787E
|
55787E
55787-0F030
Net, Cowl Top Ventilator Louver, Center No.1
[02.2004 - 08.2005] CUR10..LHD COLD SPEC,NO.3 |
55787-0F030 |
— | ||
|
55787E
|
55787E
55787-0F040
Net, Cowl Top Ventilator Louver, Center No.1
[02.2004 - 08.2005] CUR10..LHD COLD SPEC,NO.4 |
55787-0F040 |
— | ||
|
55787E
|
55787E
55787-0F050
Net, Cowl Top Ventilator Louver, Center No.1
[02.2004 - 08.2005] CUR10..LHD COLD SPEC,NO.5 |
55787-0F050 |
— | ||
|
55797A
|
55797A
55797-0F010
Seal, Cowl Water Extract
[02.2004 - 08.2005] CUR10 |
55797-0F010 |
— | ||
|
56111
|
56111
56101-0F030
Glass, Windshield
[02.2004 - 08.2005] CUR10..TERRA *LAM,T=4.96,GREEN |
56101-0F030 |
— | ||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[02.2004 - 08.2005] CUR10 |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[02.2004 - 08.2005] CUR10 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[02.2004 - 08.2005] CUR10 L=3500 |
56117-64010 |
from US $22.50 |
||
|
56118A
|
56118A
56118-64010 Dam, Window Glass Adhesive, No.2WINDOW GLASS ADHESIVE, NO.2 [02.2004 - 08.2005] CUR10 L=720 |
56118-64010 |
US $4.80 |
||
| replacement | |||||
|
56118A
|
56118A
56117-52040
Dam, Window Glass Adhesive
[02.2004 - 08.2005] CUR10 L=720 |
56117-52040 |
— | ||
|
6786752010
|
6786752010
67867-52010 Retainer(For Front Door Weatherstrip) |
67867-52010 |
US $1.60 |
||
|
9011906635
|
9011906635
90119-06635 New Genuine Part |
90119-06635 |
US $1.92 |
||
|
9046706131
|
9046706131
90467-06131 New Genuine Part |
90467-06131 |
US $2.62 |
||
| replacement | |||||
|
9046706131
|
9046706131
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9046707204
|
9046707204
90467-07204 CLIP |
90467-07204 |
US $2.08 |
||
