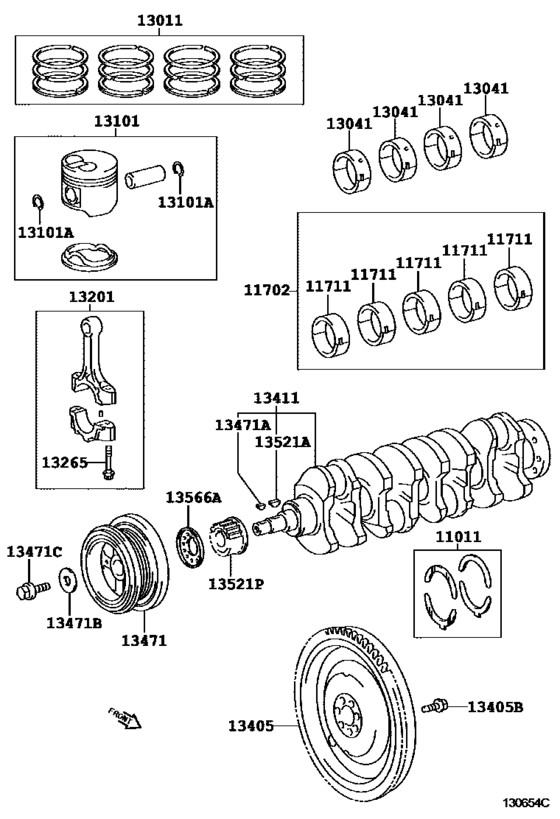

Crankshaft & Piston ([02.2004 - ] (0402- )1CDFTV) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-64010 Washer Set, Crankshaft Thrust[02.2004 - 08.2005] 1CDFTV..CUR10 STD |
11011-64010 |
US $32.15 |
||
|
11011
|
11011
11012-64010 Washer Set, Crankshaft Thrust[02.2004 - 08.2004] 1CDFTV..CUR10 O/S 0.125 |
11012-64010 |
US $25.92 |
||
|
11011
|
11011
11013-64010 Washer Set, Crankshaft Thrust[02.2004 - 08.2004] 1CDFTV..CUR10 O/S 0.250 |
11013-64010 |
US $25.92 |
||
|
11702
|
11702
11704-27020 Bearing Set, CrankshaftCRANKSHAFT [02.2004 - 08.2005] 1CDFTV..CUR10 U/S 0.25 |
11704-27020 |
US $321.78 |
||
| replacement | |||||
|
11702
|
11702
11704-27023 Bearing Set, Crankshaft[02.2004 - 08.2005] 1CDFTV..CUR10 U/S 0.25 |
11704-27023 |
US $242.86 |
||
|
11711
|
11711
11701-0G010-01
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 1,(L),*129 |
11701-0G010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 1,(L),*129 |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-0G010-02
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 2,(L),*129 |
11701-0G010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 2,(L),*129 |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-0G010-03
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 3,(L),*129 |
11701-0G010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 3,(L),*129 |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-0G010-04
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 4,(L),*129 |
11701-0G010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 4,(L),*129 |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-0G010-05
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 5,(L),*129 |
11701-0G010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 5,(L),*129 |
11701-27021-05 |
US $48.63 |
||
|
11711
|
11711
11701-0G011-01
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK1,(L),*129 |
11701-0G011-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK1,(L),*129 |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-0G011-02
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK2,(L),*129 |
11701-0G011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK2,(L),*129 |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-0G011-03
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK3,(L),*129 |
11701-0G011-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK3,(L),*129 |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-0G011-04
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK4,(L),*129 |
11701-0G011-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK4,(L),*129 |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-0G011-05
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK5,(L),*129 |
11701-0G011-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK5,(L),*129 |
11701-27021-05 |
US $48.63 |
||
|
11711
|
11711
11701-27020-01
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 1,(J),*129,*128 |
11701-27020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 1,(J),*129,*128 |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-27020-02 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 2,(J),*129,*128 |
11701-27020-02 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[02.2004 - 01.2005] 1CDFTV..CUR10 MARK 2,(J),*129,*128 |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-27020-03 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 3,(J),*129,*128 |
11701-27020-03 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 3,(J),*129,*128 |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-27020-04 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 4,(J),*129,*128 |
11701-27020-04 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 4,(J),*129,*128 |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-27020-05 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 5,(J),*129,*128 |
11701-27020-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [02.2004 - 01.2005] 1CDFTV..CUR10 MARK 5,(J),*129,*128 |
11701-27021-05 |
US $48.63 |
||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK1,(J),*129,*128 |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[01.2005 - 08.2005] 1CDFTV..CUR10 MARK2,(J),*129,*128 |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK3,(J),*129,*128 |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK4,(J),*129,*128 |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [01.2005 - 08.2005] 1CDFTV..CUR10 MARK5,(J),*129,*128 |
11701-27021-05 |
US $48.63 |
||
|
13011
|
13011
13011-27040 Ring Set, PistonPISTON [02.2004 - 08.2005] 1CDFTV..CUR10 STD |
13011-27040 |
from US $244.34 |
||
|
13041
|
13041
13041-0G010-01
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 1,(L),*129 |
13041-0G010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-01
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 1,(L),*129 |
13041-27010-01 |
— | ||
|
13041
|
13041
13041-0G010-02
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 2,(L),*129 |
13041-0G010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-02 Bearing, Connecting RodCONNECTING ROD [02.2004 - 08.2005] 1CDFTV..CUR10 MARK 2,(L),*129 |
13041-27010-02 |
US $17.34 |
||
|
13041
|
13041
13041-0G010-03
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 3,(L),*129 |
13041-0G010-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-03
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 3,(L),*129 |
13041-27010-03 |
— | ||
|
13041
|
13041
13041-0G010-04
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 4,(L),*129 |
13041-0G010-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-04
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 4,(L),*129 |
13041-27010-04 |
— | ||
|
13041
|
13041
13041-0G010-05
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 5,(L),*129 |
13041-0G010-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-05 Bearing, Connecting RodCONNECTING ROD [02.2004 - 08.2005] 1CDFTV..CUR10 MARK 5,(L),*129 |
13041-27010-05 |
US $32.03 |
||
|
13041
|
13041
13041-27010-01
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 1,(J),*129,*128 |
13041-27010-01 |
— | ||
|
13041
|
13041
13041-27010-02 Bearing, Connecting RodCONNECTING ROD [02.2004 - 08.2005] 1CDFTV..CUR10 MARK 2,(J),*129,*128 |
13041-27010-02 |
US $17.34 |
||
|
13041
|
13041
13041-27010-03
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 3,(J),*129,*128 |
13041-27010-03 |
— | ||
|
13041
|
13041
13041-27010-04
Bearing, Connecting Rod
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK 4,(J),*129,*128 |
13041-27010-04 |
— | ||
|
13041
|
13041
13041-27010-05 Bearing, Connecting RodCONNECTING ROD [02.2004 - 08.2005] 1CDFTV..CUR10 MARK 5,(J),*129,*128 |
13041-27010-05 |
US $32.03 |
||
|
13101
|
13101
13101-0G010-A0
Piston Sub-Assy, W/pin
[02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK A,(L):REFER R/M |
13101-0G010-A0 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-27080-A0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK A,(L):REFER R/M |
13101-27080-A0 |
US $163.07 |
||
|
13101
|
13101
13101-0G010-B0
Piston Sub-Assy, W/pin
[02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK B,(L):REFER R/M |
13101-0G010-B0 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-27080-B0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK B,(L):REFER R/M |
13101-27080-B0 |
US $163.07 |
||
|
13101
|
13101
13101-0G010-C0
Piston Sub-Assy, W/pin
[02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK C,(L):REFER R/M |
13101-0G010-C0 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-27080-C0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK C,(L):REFER R/M |
13101-27080-C0 |
US $163.07 |
||
|
13101
|
13101
13101-27080-01 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK1,(J):REFER R/M |
13101-27080-01 |
US $164.53 |
||
| replacement | |||||
|
13101
|
13101
13101-27080-A0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK1,(J):REFER R/M |
13101-27080-A0 |
US $163.07 |
||
|
13101
|
13101
13101-27080-02 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK2,(J):REFER R/M |
13101-27080-02 |
US $164.53 |
||
| replacement | |||||
|
13101
|
13101
13101-27080-B0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK2,(J):REFER R/M |
13101-27080-B0 |
US $163.07 |
||
|
13101
|
13101
13101-27080-03 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK3,(J):REFER R/M |
13101-27080-03 |
US $164.53 |
||
| replacement | |||||
|
13101
|
13101
13101-27080-C0 Piston Sub-Assy, W/pinW/PIN [02.2004 - 08.2005] 1CDFTV..CUR10 STD,MARK3,(J):REFER R/M |
13101-27080-C0 |
US $163.07 |
||
|
13101A
|
13101A
90520-32013 Ring, Hole Snap(For Piston Pin)HOLE SNAP(FOR PISTON PIN) [02.2004 - 08.2005] 1CDFTV..CUR10 |
90520-32013 |
US $0.29 |
||
|
13201
|
13201
13201-27011-A0 Rod Sub-Assy, ConnectingCONNECTING [02.2004 - 08.2005] 1CDFTV..CUR10 MARK A |
13201-27011-A0 |
US $189.28 |
||
|
13201
|
13201
13201-27011-B0
Rod Sub-Assy, Connecting
[02.2004 - 08.2005] 1CDFTV..CUR10 MARK B |
13201-27011-B0 |
— | ||
|
13201
|
13201
13201-27011-C0 Rod Sub-Assy, ConnectingCONNECTING [02.2004 - 08.2005] 1CDFTV..CUR10 MARK C |
13201-27011-C0 |
US $189.28 |
||
|
13265
|
13265
13265-46020 Bolt, Connecting Rod[02.2004 - 08.2005] 1CDFTV..CUR10 |
13265-46020 |
from US $4.43 |
||
|
13405
|
13405
13450-0G010
Flywheel Sub-Assy
[02.2004 - 08.2005] 1CDFTV..CUR10 |
13450-0G010 |
— | ||
| replacement | |||||
|
13405
|
13405
13450-0G011
Flywheel Sub-Assy
[02.2004 - 08.2005] 1CDFTV..CUR10 |
13450-0G011 |
— | ||
|
13405B
|
13405B
90148-10004 Bolt, Flywheel SettingFLYWHEEL SET [02.2004 - 08.2005] 1CDFTV..CUR10 |
90148-10004 |
US $0.73 |
||
|
13411
|
13411
13401-27011
Crankshaft
[02.2004 - 08.2005] 1CDFTV..CUR10 |
13401-27011 |
— | ||
|
13471
|
13471
13470-0G010
Pulley, Crankshaft
[02.2004 - 05.2005] 1CDFTV..CUR10 (L) |
13470-0G010 |
— | ||
|
13471
|
13471
13470-0G011
Pulley, Crankshaft
[05.2005 - 08.2005] 1CDFTV..CUR10 (L) |
13470-0G011 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-27010 Pulley, CrankshaftCRANKSHAFT [05.2005 - 08.2005] 1CDFTV..CUR10 (L) |
13470-27010 |
US $405.15 |
||
|
13471
|
13471
13470-27010 Pulley, CrankshaftCRANKSHAFT [02.2004 - 08.2005] 1CDFTV..CUR10 (J) |
13470-27010 |
US $405.15 |
||
|
13471A
|
13471A
90280-05007 Key, Crankshaft(For Crankshaft Pulley Set)[02.2004 - 08.2005] 1CDFTV..CUR10 |
90280-05007 |
from US $0.88 |
||
|
13471B
|
13471B
90560-16026 Washer, Plate(For Crankshaft Pulley Set)[02.2004 - 08.2005] 1CDFTV..CUR10 |
90560-16026 |
US $9.17 |
||
|
13471C
|
13471C
90105-16065
Bolt(For Crankshaft Pulley Set)
[02.2004 - 08.2005] 1CDFTV..CUR10 |
90105-16065 |
— | ||
|
13521A
|
13521A
90280-06001 Key(For Crankshaft Timing Gear)[02.2004 - 08.2005] 1CDFTV..CUR10 |
90280-06001 |
from US $1.66 |
||
|
13521P
|
13521P
13521-27010 Pulley, Crankshaft TimingCRANKSHAFT TIMING [02.2004 - 08.2005] 1CDFTV..CUR10 |
13521-27010 |
US $51.98 |
||
|
13566A
|
13566A
13566-64011 Guide, Timing Belt[02.2004 - 08.2005] 1CDFTV..CUR10 |
13566-64011 |
from US $3.82 |
||
