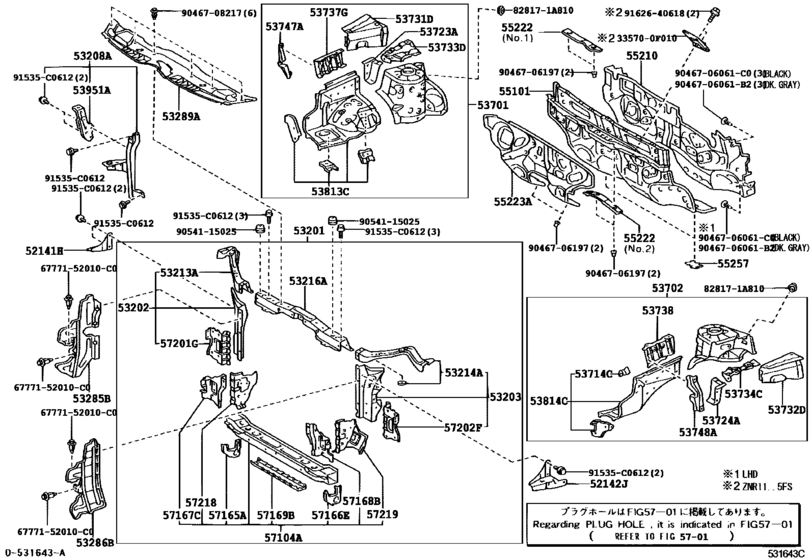

Front Fender Apron & Dash Panel ([02.2004 - ] (0402- )CUR10,ZNR1#) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141H
|
52141H
52141-0F020
Arm, Front Bumper, Upper Rh
[02.2004 - 08.2005] CUR10 |
52141-0F020 |
— | ||
|
52142J
|
52142J
52142-0F020
Arm, Front Bumper, Upper Lh
[02.2004 - 08.2005] CUR10 |
52142-0F020 |
— | ||
|
53201
|
53201
53201-0F901
Support Sub-Assy, Radiator
[02.2004 - 08.2005] CUR10 |
53201-0F901 |
— | ||
|
53202
|
53202
53202-0F010
Support Sub-Assy, Radiator, Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
53202-0F010 |
— | ||
| replacement | |||||
|
53202
|
53202
53202-0F020
Support Sub-Assy, Radiator, Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
53202-0F020 |
— | ||
|
53203
|
53203
53203-0F010
Support Sub-Assy, Radiator, Lh
[02.2004 - 08.2005] CUR10 |
53203-0F010 |
— | ||
| replacement | |||||
|
53203
|
53203
53203-0F011
Support Sub-Assy, Radiator, Lh
[02.2004 - 08.2005] CUR10 |
53203-0F011 |
— | ||
|
53208A
|
53208A
53208-0F010
Support Sub-Assy, Hood Lock
[02.2004 - 05.2007] CUR10,ZNR1# |
53208-0F010 |
— | ||
|
53213A
|
53213A
53213-0F010
Support, Radiator, Upper Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
53213-0F010 |
— | ||
| replacement | |||||
|
53213A
|
53213A
53213-0F011
Support, Radiator, Upper Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
53213-0F011 |
— | ||
|
53214A
|
53214A
53214-0F900
Support, Radiator, Upper Lh
[02.2004 - 08.2005] CUR10..RHD;CUR10..LHD..07S;CUR10..LHD..05S..TERRA |
53214-0F900 |
— | ||
|
53216A
|
53216A
53205-0F020
Support, Radiator, Upper
[02.2004 - 08.2005] CUR10 |
53205-0F020 |
— | ||
|
53285B
|
53285B
53285-0F010
Seal, Radiator Side Air, No.1
[02.2004 - 08.2005] CUR10 |
53285-0F010 |
— | ||
|
53286B
|
53286B
53286-0F010
Seal, Radiator Side Air, No.2
[02.2004 - 08.2005] CUR10 |
53286-0F010 |
— | ||
|
53289A
|
53289A
53289-0F010
Cover, Radiator Support Opening
[02.2004 - 05.2004] CUR10,ZNR1# |
53289-0F010 |
— | ||
| replacement | |||||
|
53289A
|
53289A
53289-0F011
Cover, Radiator Support Opening
[02.2004 - 05.2004] CUR10,ZNR1# |
53289-0F011 |
— | ||
|
53289A
|
53289A
53289-0F011
Cover, Radiator Support Opening
[06.2004 - 08.2005] CUR10 |
53289-0F011 |
— | ||
|
53701
|
53701
53701-0F010
Apron Sub-Assy, Front Fender, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
53701-0F010 |
— | ||
|
53702
|
53702
53702-0F010
Apron Sub-Assy, Front Fender, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
53702-0F010 |
— | ||
|
53714C
|
53714C
53714-02040
Extension, Front Fender Apron, Front Lh
[02.2004 - 08.2005] CUR10 (L) |
53714-02040 |
— | ||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[02.2004 - 08.2005] CUR10 (J) |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-02010
Reinforcement, Front Spring Support, Rh
[02.2004 - 08.2005] CUR10 |
53723-02010 |
— | ||
|
53724A
|
53724A
53724-02010
Reinforcement, Front Spring Support, Lh
[02.2004 - 08.2005] CUR10 |
53724-02010 |
— | ||
|
53731D
|
53731D
53705-0F010
Member, Front Apron To Cowl Side, Upper Rh
[02.2004 - 08.2005] CUR10 |
53705-0F010 |
— | ||
|
53732D
|
53732D
53706-0F010
Member, Front Apron To Cowl Side, Upper Lh
[02.2004 - 08.2005] CUR10 |
53706-0F010 |
— | ||
|
53733D
|
53733D
53733-0F010
Member, Front Apron To Cowl Side, Lower Front Rh
[02.2004 - 08.2005] CUR10 |
53733-0F010 |
— | ||
|
53734C
|
53734C
53734-0F010
Member, Front Apron To Cowl Side, Lower Front Lh
[02.2004 - 08.2005] CUR10 |
53734-0F010 |
— | ||
|
53737G
|
53737G
53737-0F010
Plate, Front Apron To Cowl Side Member, Rh
[02.2004 - 08.2005] CUR10 |
53737-0F010 |
— | ||
|
53738
|
53738
53738-0F010
Plate, Front Apron To Cowl Side Member, Lh
[02.2004 - 08.2005] CUR10 |
53738-0F010 |
— | ||
|
53747A
|
53747A
53747-0F010
Extension, Apron Fender Side, Rh
[02.2004 - 08.2005] CUR10 |
53747-0F010 |
— | ||
|
53748A
|
53748A
53748-0F010
Extension, Apron Fender Side, Lh
[02.2004 - 08.2005] CUR10 |
53748-0F010 |
— | ||
|
53813C
|
53813C
53707-0F900
Extension, Front Fender, Rh
[02.2004 - 08.2005] CUR10 |
53707-0F900 |
— | ||
|
53814C
|
53814C
53708-0F900
Extension, Front Fender, Lh
[02.2004 - 08.2005] CUR10 |
53708-0F900 |
— | ||
|
53951A
|
53951A
53951-0F010
Support, Front End Panel, Upper
[02.2004 - 08.2005] CUR10 |
53951-0F010 |
— | ||
|
55101
|
55101
55101-0F020
Panel Sub-Assy, Dash
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD..(5F,6F) |
55101-0F020 |
— | ||
|
55210
|
55210
55210-0F010
Insulator Assy, Dash Panel
[02.2004 - 08.2005] CUR10..LHD |
55210-0F010 |
— | ||
|
55222
|
55222
55222-0F010
Insulator, Dash Panel, Outer Center
[02.2004 - 07.2004] CUR10,ZNR1# NO.1 |
55222-0F010 |
— | ||
| replacement | |||||
|
55222
|
55222
55222-0F011
Insulator, Dash Panel, Outer Center
[02.2004 - 07.2004] CUR10,ZNR1# NO.1 |
55222-0F011 |
— | ||
|
55222
|
55222
55222-0F011
Insulator, Dash Panel, Outer Center
[08.2004 - 08.2005] CUR10 NO.1 |
55222-0F011 |
— | ||
|
55222
|
55222
55224-0F010
Insulator, Dash Panel, Outer Center
[02.2004 - 08.2005] CUR10 NO.2 |
55224-0F010 |
— | ||
|
55223A
|
55223A
55223-02090
Insulator, Dash Panel, Outer
[02.2004 - 08.2005] CUR10,ZNR1#..LHD |
55223-02090 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-02091
Insulator, Dash Panel, Outer
[02.2004 - 08.2005] CUR10,ZNR1#..LHD |
55223-02091 |
— | ||
|
55257
|
55257
55257-02030
Cover, Dash Panel Opening
[02.2004 - 08.2005] CUR10 |
55257-02030 |
— | ||
|
57104A
|
57104A
57104-0F010
Member Sub-Assy, Front Cross
[02.2004 - 08.2005] CUR10 |
57104-0F010 |
— | ||
|
57165A
|
57165A
57165-02050
Reinforcement, Front Crossmember, Lower Rh
[02.2004 - 08.2005] CUR10 |
57165-02050 |
— | ||
|
57166E
|
57166E
57166-02040
Reinforcement, Front Crossmember, Lower Lh
[02.2004 - 08.2005] CUR10 |
57166-02040 |
— | ||
|
57167C
|
57167C
57167-0F010
Gusset, Front Crossmember Side, Rh
[02.2004 - 08.2005] CUR10 |
57167-0F010 |
— | ||
|
57168B
|
57168B
57168-0F010
Gusset, Front Crossmember Side, Lh
[02.2004 - 08.2005] CUR10 |
57168-0F010 |
— | ||
|
57169B
|
57169B
57169-02040
Member, Front Floor, Front Rh
[02.2004 - 08.2005] CUR10 |
57169-02040 |
— | ||
|
57201G
|
57201G
57201-02010
Extension Sub-Assy, Front Side Member, Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
57201-02010 |
— | ||
| replacement | |||||
|
57201G
|
57201G
57201-02011
Extension Sub-Assy, Front Side Member, Rh
[02.2004 - 08.2005] CUR10,ZNR1# |
57201-02011 |
— | ||
|
57202F
|
57202F
57202-02010
Extension Sub-Assy, Front Side Member, Lh
[02.2004 - 08.2005] CUR10,ZNR1# |
57202-02010 |
— | ||
| replacement | |||||
|
57202F
|
57202F
57202-02011
Extension Sub-Assy, Front Side Member, Lh
[02.2004 - 08.2005] CUR10,ZNR1# |
57202-02011 |
— | ||
|
57218
|
57218
57218-02041
Gusset, Front Side Member, No.1
[02.2004 - 08.2005] CUR10 |
57218-02041 |
— | ||
|
57219
|
57219
57219-02041
Gusset, Front Side Member, No.2
[02.2004 - 08.2005] CUR10 |
57219-02041 |
— | ||
|
91535C0612
|
91535C0612
91535-C0612 New Genuine Part |
91535-C0612 |
US $1.16 |
||
|
335700F010
|
335700F010
33570-0F010
Column Shift Assy, Transmission
|
33570-0F010 |
— | ||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
6777152010C0
|
6777152010C0
67771-52010-C0 Clip |
67771-52010-C0 |
US $3.52 |
||
|
9046706061B2
|
9046706061B2
90467-06061-B2 Clip(For Front Floor Silencer) |
90467-06061-B2 |
US $1.02 |
||
|
9046706061C0
|
9046706061C0
90467-06061-C0 Clip(For Front Floor Carpet) |
90467-06061-C0 |
US $1.60 |
||
| replacement | |||||
|
9046706061C0
|
9046706061C0
90467-06061-B2 Clip(For Front Floor Silencer) |
90467-06061-B2 |
US $1.02 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.92 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.87 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
