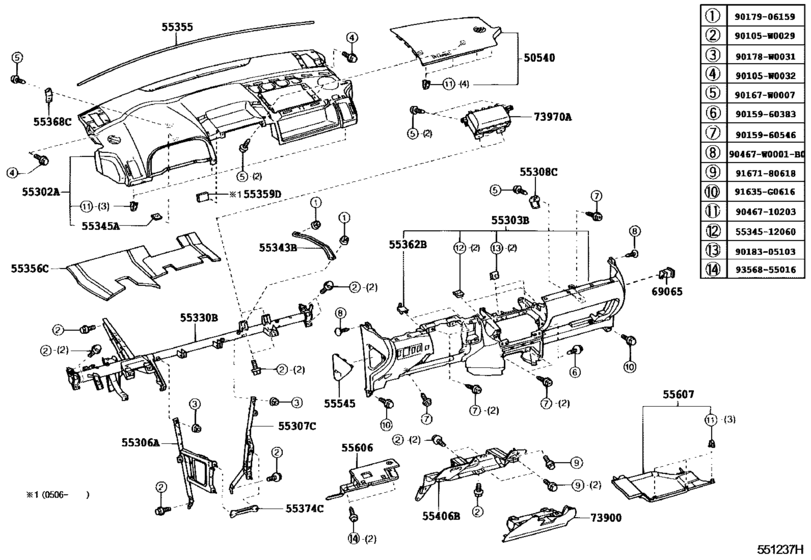

Instrument Panel & Glove Compartment ([02.2004 - ] (0402- )LHD) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50540
|
50540
50540-0F010-B0
Do0R Assy, Air Bag Passenger
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
50540-0F010-B0 |
— | ||
|
55302A
|
55302A
55302-0F010-B0
Panel Sub-Assy, Instrument, Upper
[02.2004 - 07.2004] CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55302-0F010-B0 |
— | ||
| replacements | |||||
|
55302A
|
55302A
55302-0F011-B0
Panel Sub-Assy, Instrument, Upper
[02.2004 - 07.2004] CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55302-0F011-B0 |
— | ||
|
55302A
|
55302A
55440-0F011-B0
Box Assy, Instrument Panel
[02.2004 - 07.2004] CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55440-0F011-B0 |
— | ||
|
55302A
|
55302A
55302-0F011-B0
Panel Sub-Assy, Instrument, Upper
[07.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55302-0F011-B0 |
— | ||
|
55303B
|
55303B
55303-0F010-B0
Panel Sub-Assy, Instrument, Lower
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55303-0F010-B0 |
— | ||
|
55306A
|
55306A
55306-0F010
Brace Sub-Assy, Instrument Panel, No.1
[02.2004 - 08.2005] CUR10..LHD |
55306-0F010 |
— | ||
|
55307C
|
55307C
55307-0F010
Brace Sub-Assy, Instrument Panel, No.2
[02.2004 - 08.2005] CUR10..LHD |
55307-0F010 |
— | ||
|
55308C
|
55308C
55308-0F010
Bracket Sub-Assy, Instrument Panel, Center
[02.2004 - 08.2005] CUR10 |
55308-0F010 |
— | ||
|
55330B
|
55330B
55330-0F010
Reinforcement Assy, Instrument Panel
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD |
55330-0F010 |
— | ||
|
55343B
|
55343B
55343-0F010
Brace, Instrument Panel To Cowl, Center
[02.2004 - 08.2005] CUR10..LHD |
55343-0F010 |
— | ||
|
55345A
|
55345A
55345-12060 Clip, Instrument Panel, No.1[02.2004 - 03.2004] CUR10,ZNR1# |
55345-12060 |
US $1.10 |
||
|
55355
|
55355
55355-0F010
Cushion, Instrument Panel, No.1
[02.2004 - 08.2005] CUR10 |
55355-0F010 |
— | ||
|
55356C
|
55356C
55356-0F010
Cushion, Instrument Panel, No.2
[02.2004 - 08.2005] CUR10..LHD |
55356-0F010 |
— | ||
|
55362B
|
55362B
55362-12050 Bracket, Meter Mounting[02.2004 - 08.2005] CUR10 |
55362-12050 |
US $1.46 |
||
|
55368C
|
55368C
55368-02050
Bracket, Meter Mounting
[02.2004 - 08.2005] CUR10 |
55368-02050 |
— | ||
|
55374C
|
55374C
55349-0F010
Bracket, Instrument Panel Lower Mounting, No.1
[02.2004 - 08.2005] CUR10 |
55349-0F010 |
— | ||
|
55406B
|
55406B
55406-0F010
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[02.2004 - 08.2005] CUR10..LHD |
55406-0F010 |
— | ||
|
55545
|
55545
55545-0F010-B0
Cover, Fuse Box Opening
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55545-0F010-B0 |
— | ||
|
55606
|
55606
55606-0F010-B0
Cover Sub-Assy, Instrument Panel Under, No.1
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
55606-0F010-B0 |
— | ||
|
55607
|
55607
55607-02030
Cover Sub-Assy, Instrument Panel Under, No.2
[02.2004 - 08.2005] CUR10..LHD |
55607-02030 |
— | ||
|
69065
|
69065
69065-64020
Cylinder Sub-Assy, Air Bag Cut Off Sw
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
69065-64020 |
— | ||
|
73900
|
73900
73900-0F010-B0
Air Bag Assy, Instrument Panel, Lower No.1
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GRAY,TRIM1# |
73900-0F010-B0 |
— | ||
|
73970A
|
73970A
73970-0F010-B0
Air Bag Assy, Instrument Panel Passenger
[02.2004 - 08.2005] CUR10 DK.GRAY,TRIM1# |
73970-0F010-B0 |
— | ||
|
90105W0029
|
90105W0029
90105-W0029 New Genuine Part |
90105-W0029 |
US $1.75 |
||
|
90105W0032
|
90105W0032
90105-W0032
New Genuine Part
|
90105-W0032 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
90467W0001B0
|
90467W0001B0
90467-W0001-B0 Clip (For Air Duct)INSTRUMENT PANEL |
90467-W0001-B0 |
US $1.02 |
||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $0.96 |
||
|
5534512060
|
5534512060
55345-12060 Clip, Instrument Panel, No.1 |
55345-12060 |
US $1.10 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.96 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
