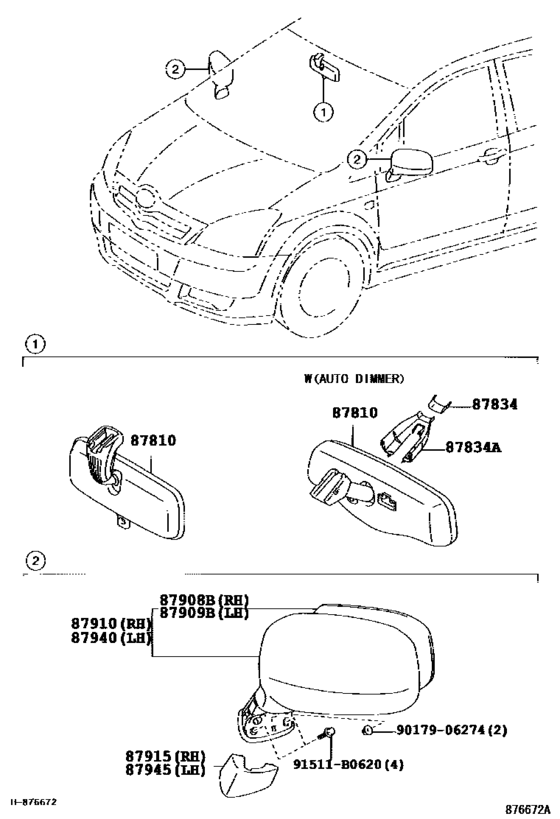

Mirror ([02.2004 - ] (0402- )) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-0D010 Mirror Assy, Inner Rear View[02.2004 - 06.2004] CUR10,ZNR1#..TERRA |
87810-0D010 |
US $103.38 |
||
| replacement | |||||
|
87810
|
87810
87810-0D011 Mirror Assy, Inner Rear View[02.2004 - 06.2004] CUR10,ZNR1#..TERRA |
87810-0D011 |
from US $65.31 |
||
|
87810
|
87810
87810-0D011 Mirror Assy, Inner Rear View[07.2004 - 08.2005] CUR10..TERRA |
87810-0D011 |
from US $65.31 |
||
|
87908B
|
87908B
87908-0F030
Mirror Sub-Assy, Rh
[02.2004 - 08.2005] CUR10..LHD |
87908-0F030 |
— | ||
|
87908B
|
87908B
87908-0F040
Mirror Sub-Assy, Rh
[02.2004 - 08.2005] CUR10..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
87908-0F040 |
— | ||
|
87909B
|
87909B
87909-0F030
Mirror Sub-Assy, Lh
[02.2004 - 08.2005] CUR10..LHD |
87909-0F030 |
— | ||
|
87909B
|
87909B
87909-0F040
Mirror Sub-Assy, Lh
[02.2004 - 08.2005] CUR10..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
87909-0F040 |
— | ||
|
87910
|
87910
87910-0F030-A0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SUPER WHITE 2,040 |
87910-0F030-A0 |
— | ||
|
87910
|
87910
87910-0F030-B0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SILVER ME.,1C0 |
87910-0F030-B0 |
— | ||
|
87910
|
87910
87910-0F030-B1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD GRAY M.M.,1C3 |
87910-0F030-B1 |
— | ||
|
87910
|
87910
87910-0F030-C0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BLACK MC.,209 |
87910-0F030-C0 |
— | ||
|
87910
|
87910
87910-0F030-D1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK. RED M.M.,3Q3 |
87910-0F030-D1 |
— | ||
|
87910
|
87910
87910-0F030-E0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BEIGE M.M.,4S0 |
87910-0F030-E0 |
— | ||
|
87910
|
87910
87910-0F030-G0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GREEN M.M.,6S3 |
87910-0F030-G0 |
— | ||
|
87910
|
87910
87910-0F030-J0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE M.M.,8P4 |
87910-0F030-J0 |
— | ||
|
87910
|
87910
87910-0F030-J1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE,8Q4 |
87910-0F030-J1 |
— | ||
|
87910
|
87910
87910-0F030-J2
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD LT.BLUE M.M.,8S1 |
87910-0F030-J2 |
— | ||
|
87910
|
87910
87910-0F040-A0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040 |
87910-0F040-A0 |
— | ||
|
87910
|
87910
87910-0F040-B0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1C0 |
87910-0F040-B0 |
— | ||
|
87910
|
87910
87910-0F040-B1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY M.M.,1C3 |
87910-0F040-B1 |
— | ||
|
87910
|
87910
87910-0F040-C0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK MC.,209 |
87910-0F040-C0 |
— | ||
|
87910
|
87910
87910-0F040-D1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK. RED M.M.,3Q3 |
87910-0F040-D1 |
— | ||
|
87910
|
87910
87910-0F040-E0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M.M.,4S0 |
87910-0F040-E0 |
— | ||
|
87910
|
87910
87910-0F040-G0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN M.M.,6S3 |
87910-0F040-G0 |
— | ||
|
87910
|
87910
87910-0F040-J0
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE M.M.,8P4 |
87910-0F040-J0 |
— | ||
|
87910
|
87910
87910-0F040-J1
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE,8Q4 |
87910-0F040-J1 |
— | ||
|
87910
|
87910
87910-0F040-J2
Mirror Assy, Outer Rear View, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE M.M.,8S1 |
87910-0F040-J2 |
— | ||
|
87915
|
87915
87915-0F020-A0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SUPER WHITE 2,040 |
87915-0F020-A0 |
— | ||
|
87915
|
87915
87915-0F020-B0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SILVER ME.,1C0 |
87915-0F020-B0 |
— | ||
|
87915
|
87915
87915-0F020-B1
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD GRAY M.M.,1C3 |
87915-0F020-B1 |
— | ||
|
87915
|
87915
87915-0F020-C0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BLACK MC.,209 |
87915-0F020-C0 |
— | ||
|
87915
|
87915
87915-0F020-D1
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK. RED M.M.,3Q3 |
87915-0F020-D1 |
— | ||
|
87915
|
87915
87915-0F020-E0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BEIGE M.M.,4S0 |
87915-0F020-E0 |
— | ||
|
87915
|
87915
87915-0F020-G0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GREEN M.M.,6S3 |
87915-0F020-G0 |
— | ||
|
87915
|
87915
87915-0F020-J0
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE M.M.,8P4 |
87915-0F020-J0 |
— | ||
|
87915
|
87915
87915-0F020-J1
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE,8Q4 |
87915-0F020-J1 |
— | ||
|
87915
|
87915
87915-0F020-J2
Cover, Outer Mirror, Rh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD LT.BLUE M.M.,8S1 |
87915-0F020-J2 |
— | ||
|
87940
|
87940
87940-0F030-A0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SUPER WHITE 2,040 |
87940-0F030-A0 |
— | ||
|
87940
|
87940
87940-0F030-B0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SILVER ME.,1C0 |
87940-0F030-B0 |
— | ||
|
87940
|
87940
87940-0F030-B1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD GRAY M.M.,1C3 |
87940-0F030-B1 |
— | ||
|
87940
|
87940
87940-0F030-C0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BLACK MC.,209 |
87940-0F030-C0 |
— | ||
|
87940
|
87940
87940-0F030-D1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK. RED M.M.,3Q3 |
87940-0F030-D1 |
— | ||
|
87940
|
87940
87940-0F030-E0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BEIGE M.M.,4S0 |
87940-0F030-E0 |
— | ||
|
87940
|
87940
87940-0F030-G0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GREEN M.M.,6S3 |
87940-0F030-G0 |
— | ||
|
87940
|
87940
87940-0F030-J0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE M.M.,8P4 |
87940-0F030-J0 |
— | ||
|
87940
|
87940
87940-0F030-J1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE,8Q4 |
87940-0F030-J1 |
— | ||
|
87940
|
87940
87940-0F030-J2
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD LT.BLUE M.M.,8S1 |
87940-0F030-J2 |
— | ||
|
87940
|
87940
87940-0F040-A0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040 |
87940-0F040-A0 |
— | ||
|
87940
|
87940
87940-0F040-B0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1C0 |
87940-0F040-B0 |
— | ||
|
87940
|
87940
87940-0F040-B1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY M.M.,1C3 |
87940-0F040-B1 |
— | ||
|
87940
|
87940
87940-0F040-C0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK MC.,209 |
87940-0F040-C0 |
— | ||
|
87940
|
87940
87940-0F040-D1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK. RED M.M.,3Q3 |
87940-0F040-D1 |
— | ||
|
87940
|
87940
87940-0F040-E0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M.M.,4S0 |
87940-0F040-E0 |
— | ||
|
87940
|
87940
87940-0F040-G0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN M.M.,6S3 |
87940-0F040-G0 |
— | ||
|
87940
|
87940
87940-0F040-J0
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE M.M.,8P4 |
87940-0F040-J0 |
— | ||
|
87940
|
87940
87940-0F040-J1
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE,8Q4 |
87940-0F040-J1 |
— | ||
|
87940
|
87940
87940-0F040-J2
Mirror Assy, Outer Rear View, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE M.M.,8S1 |
87940-0F040-J2 |
— | ||
|
87945
|
87945
87945-0F020-A0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SUPER WHITE 2,040 |
87945-0F020-A0 |
— | ||
|
87945
|
87945
87945-0F020-B0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD SILVER ME.,1C0 |
87945-0F020-B0 |
— | ||
|
87945
|
87945
87945-0F020-B1
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD GRAY M.M.,1C3 |
87945-0F020-B1 |
— | ||
|
87945
|
87945
87945-0F020-C0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BLACK MC.,209 |
87945-0F020-C0 |
— | ||
|
87945
|
87945
87945-0F020-D1
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK. RED M.M.,3Q3 |
87945-0F020-D1 |
— | ||
|
87945
|
87945
87945-0F020-E0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD BEIGE M.M.,4S0 |
87945-0F020-E0 |
— | ||
|
87945
|
87945
87945-0F020-G0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.GREEN M.M.,6S3 |
87945-0F020-G0 |
— | ||
|
87945
|
87945
87945-0F020-J0
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE M.M.,8P4 |
87945-0F020-J0 |
— | ||
|
87945
|
87945
87945-0F020-J1
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD DK.BLUE,8Q4 |
87945-0F020-J1 |
— | ||
|
87945
|
87945
87945-0F020-J2
Cover, Outer Mirror, Lh
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD LT.BLUE M.M.,8S1 |
87945-0F020-J2 |
— | ||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
