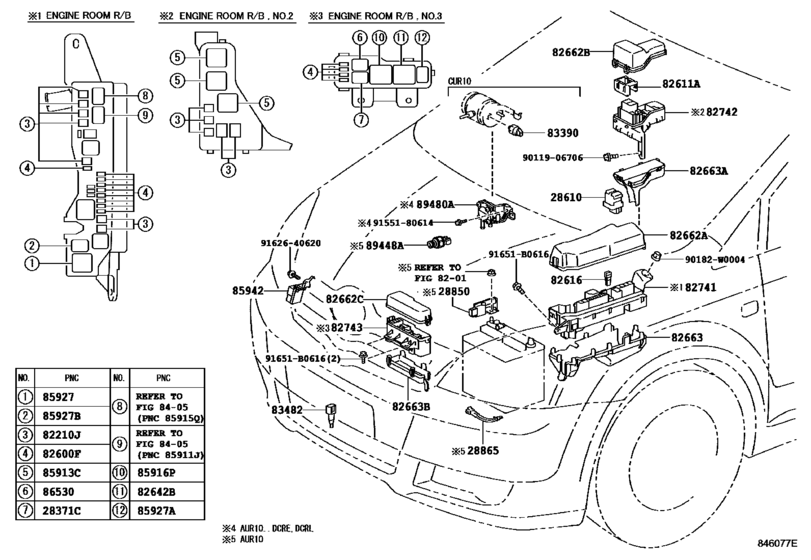

Switch & Relay & Computer ([02.2004 - ] ENGINE ROOM (0402- )AUR10,CUR10) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90080-87019
Relay, Ignition, No.2
[02.2004 - 08.2005] 1CDFTV..CUR10 |
90080-87019 |
— | ||
| replacement | |||||
|
28371C
|
28371C
90080-87021
Relay, Lamp Cut
[02.2004 - 08.2005] 1CDFTV..CUR10 |
90080-87021 |
— | ||
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[02.2004 - 08.2005] 1CDFTV..CUR10 |
28610-67010 |
from US $42.71 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 80A,TERMINAL:MALE,ENGINE ROOM R/B,NO.2 |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08257 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 40A,TERMINAL:MALE,ENGINE ROOM R/B |
90982-08257 |
US $11.20 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[02.2004 - 05.2007] ZNR1#..LHD 30A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2; AUR10,CUR10,ZNR1# 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08280 |
from US $3.92 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 40A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08281 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 50A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08282 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B; AUR10,CUR10..LHD..DCR 30A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2 |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[02.2004 - 05.2007] AUR10,CUR10..LHD..DCR 50A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2 |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 140A,TERMINAL:MALE,ENGINE ROOM R/B,NO.2 |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[02.2004 - 08.2005] CUR10 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 25A,MINI FUSE |
90080-82033 |
— | ||
|
82611A
|
82611A
82611-13010 Cover, Fuse Block, No.2FUSE BLOCK, NO.2 [02.2004 - 05.2007] AUR10,CUR10 |
82611-13010 |
US $9.17 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
82616-20010 |
from US $2.36 |
||
|
82642B
|
82642B
90080-87030 Relay, Ignition, No.1[02.2004 - 08.2005] CUR10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
90080-87030 |
US $39.46 |
||
|
82662A
|
82662A
82662-0F020
Cover, Relay Block, Upper, No.1
[02.2004 - 08.2005] CUR10..TERRA VSC-W/O; CUR10..LHD..TERRA COLD SPEC&VSC-W/O; CUR10..LHD..TERRA COLD SPEC&VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH |
82662-0F020 |
— | ||
|
82662A
|
82662A
82662-0F030
Cover, Relay Block, Upper, No.1
[02.2004 - 08.2005] CUR10 |
82662-0F030 |
— | ||
|
82662B
|
82662B
82662-64010 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [02.2004 - 08.2005] CUR10 |
82662-64010 |
US $24.90 |
||
|
82662C
|
82662C
82662-0F080
Cover, Relay Block, Upper, No.3
[02.2004 - 08.2005] CUR10,ZNR1# |
82662-0F080 |
— | ||
|
82663
|
82663
82663-0F020
Cover, Relay Block, Lower
[02.2004 - 05.2007] AUR10,CUR10 |
82663-0F020 |
— | ||
|
82663A
|
82663A
82663-13020 Cover, Relay Block, Lower, No.2RELAY BLOCK, LOWER, NO.3 [02.2004 - 05.2007] AUR10,CUR10 |
82663-13020 |
US $19.66 |
||
|
82663B
|
82663B
82663-05060
Cover, Relay Block, Lower, No.3
[02.2004 - 05.2007] AUR10,CUR10 |
82663-05060 |
— | ||
|
82741
|
82741
82741-20060
Block, Engine Room Relay
[02.2004 - 05.2007] AUR10,CUR10 |
82741-20060 |
— | ||
|
82742
|
82742
82741-13020 Block, Engine Room Relay, No.2ENGINE ROOM RELAY, NO.3 [02.2004 - 05.2007] AUR10,CUR10 |
82741-13020 |
US $75.71 |
||
|
82743
|
82743
82741-05050 Block, Engine Room Relay, No.3[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
82741-05050 |
US $47.03 |
||
|
83390
|
83390
83390-12350 Switch Assy, Vacuum WarningVACUUM WARNING [02.2004 - 08.2005] CUR10 |
83390-12350 |
US $66.10 |
||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[02.2004 - 08.2005] CUR10 |
83482-02010 |
US $64.75 |
||
|
85913C
|
85913C
90080-87030 Relay, Ignition, No.1[02.2004 - 05.2007] AUR10,CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); AUR10,CUR10..LHD..SOL COLD SPEC |
90080-87030 |
US $39.46 |
||
|
85916P
|
85916P
90080-87030 Relay, Ignition, No.1[02.2004 - 08.2005] CUR10 |
90080-87030 |
US $39.46 |
||
|
85927
|
85927
90080-87030 Relay, Ignition, No.1[02.2004 - 08.2005] CUR10 |
90080-87030 |
US $39.46 |
||
|
85927A
|
85927A
90080-87012
Relay, Cooling Fan, No.2
[02.2004 - 05.2007] ZNR1#;AUR10,CUR10..SOL; AUR10,CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); CUR10..TERRA;AUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION) |
90080-87012 |
— | ||
| replacement | |||||
|
85927A
|
85927A
90080-87020
Relay, Cooling Fan
[02.2004 - 05.2007] ZNR1#;AUR10,CUR10..SOL; AUR10,CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); CUR10..TERRA;AUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION) |
90080-87020 |
— | ||
|
85927B
|
85927B
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,CUR10..SOL; AUR10,CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); CUR10..TERRA;AUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION) |
90080-87019 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,CUR10..SOL; AUR10,CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); CUR10..TERRA;AUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION) |
90080-87021 |
— | ||
|
85942
|
85942
85942-0F010
Relay, Headlamp Cleaner Control
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER) |
85942-0F010 |
— | ||
|
86530
|
86530
90080-87019
Relay, Ignition, No.2
[02.2004 - 08.2005] CUR10 |
90080-87019 |
— | ||
| replacement | |||||
|
86530
|
86530
90080-87021
Relay, Lamp Cut
[02.2004 - 08.2005] CUR10 |
90080-87021 |
— | ||
|
90182W0004
|
90182W0004
90182-W0004
New Genuine Part
|
90182-W0004 |
— | ||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.28 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9162640620
|
9162640620
91626-40620 New Genuine Part |
91626-40620 |
US $2.48 |
||
| replacement | |||||
|
9162640620
|
9162640620
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
