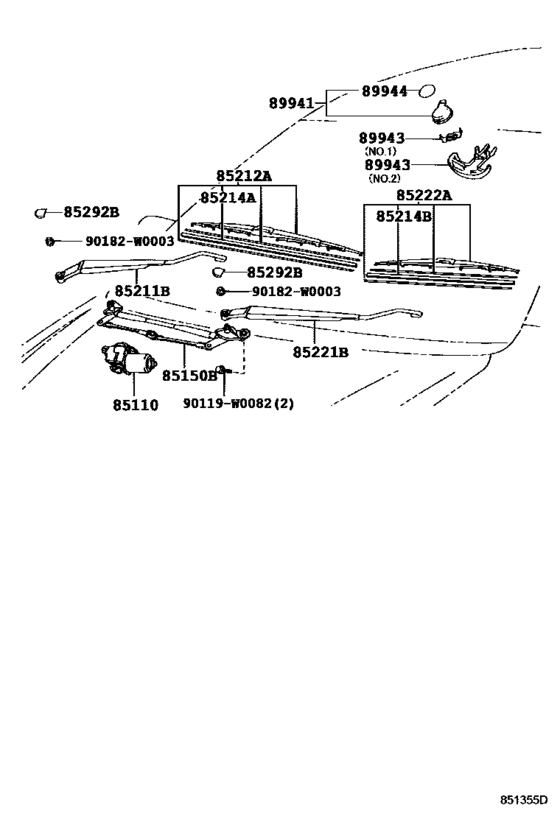

Windshield Wiper ([02.2004 - ] (0402- )) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-0F020
Motor Assy, Windshield Wiper
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD |
85110-0F020 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-0F050
Motor Assy, Windshield Wiper
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD |
85110-0F050 |
— | ||
|
85150B
|
85150B
85150-0F020
Link Assy, Wiper
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..LHD |
85150-0F020 |
— | ||
|
85211B
|
85211B
85211-0F020
Arm, Front Wiper, Rh
[02.2004 - 08.2005] CUR10..LHD |
85211-0F020 |
— | ||
|
85212A
|
85212A
85212-05080
Blade, Fr Wiper, Rh
[02.2004 - 10.2006] AUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC) |
85212-05080 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-05081
Blade, Fr Wiper, Rh
[02.2004 - 10.2006] AUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC) |
85212-05081 |
— | ||
|
85214A
|
85214A
85214-02210
Rubber, Wiper, Lh
[02.2004 - 10.2006] AUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC) |
85214-02210 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-02211 Rubber, Wiper, Lh[02.2004 - 10.2006] AUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC) |
85214-02211 |
US $9.61 |
||
|
85214B
|
85214B
85214-0F020
Rubber, Wiper, Rh
[02.2004 - 08.2005] CUR10..LHD |
85214-0F020 |
— | ||
|
85221B
|
85221B
85221-0F020
Arm, Front Wiper, Lh
[02.2004 - 08.2005] CUR10..LHD |
85221-0F020 |
— | ||
|
85222A
|
85222A
85222-0F010
Blade, Fr Wiper, Lh
[02.2004 - 08.2005] CUR10..LHD |
85222-0F010 |
— | ||
|
85292B
|
85292B
85292-0F010 Cap, Front Wiper Arm HeadFRONT WIPER ARM HEAD [02.2004 - 08.2005] CUR10 |
85292-0F010 |
from US $2.67 |
||
|
90119W0082
|
90119W0082
90119-W0082 New Genuine Part |
90119-W0082 |
US $1.02 |
||
|
90182W0003
|
90182W0003
90182-W0003 Nut (For Front Wiper Arm Setting) |
90182-W0003 |
US $1.16 |
||
| replacement | |||||
|
90182W0003
|
90182W0003
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.28 |
||
