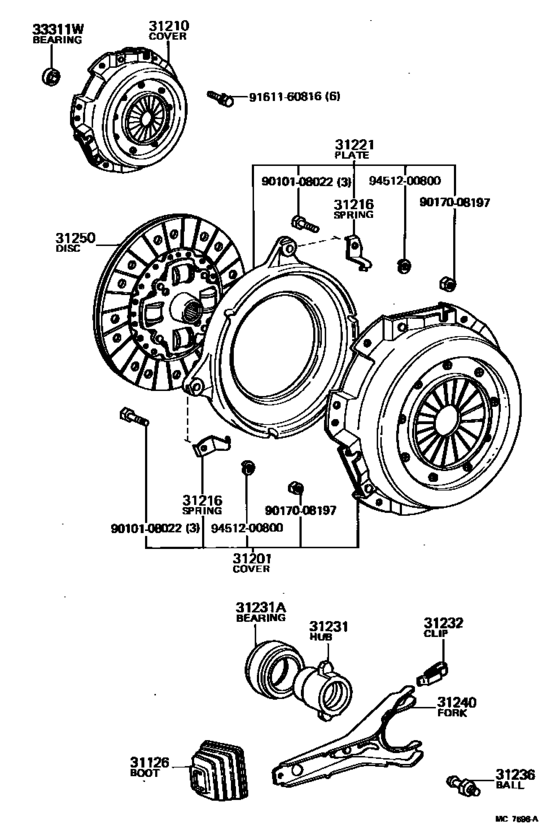

Clutch & Release Fork ([01.1982 - 12.1987] (8201-8712)AT140..MTM) Diagram Toyota CORONA
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- AT140
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[01.1982 - 11.1991] AT14#,CT14#,KT147,ST140,TT14#..MTM |
31126-20070 |
from US $14.70 |
||
|
31201
|
31201
31201-19065
Cover Sub-Assy, Clutch
[01.1982 - 12.1987] AT140,TT147..MTM |
31201-19065 |
— | ||
|
31210
|
31210
31210-20083 Cover Assy, Clutch[01.1982 - 12.1987] AT140..MTM |
31210-20083 |
US $164.53 |
||
| replacement | |||||
|
31210
|
31210
31210-12182 Cover Assy, Clutch[01.1982 - 12.1987] AT140..MTM |
31210-12182 |
US $148.84 |
||
|
31216
|
31216
31216-20020
Spring, Clutch Retracting
[01.1982 - 12.1987] AT140,TT147..MTM |
31216-20020 |
— | ||
|
31221
|
31221
31221-19025 Plate, Clutch Pressure[01.1982 - 12.1987] AT140..MTM |
31221-19025 |
US $50.38 |
||
|
31231
|
31231
31231-20081
Hub, Clutch Release Bearing
[01.1982 - 12.1987] AT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX) |
31231-20081 |
— | ||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[01.1982 - 08.1987] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
90363-40022 |
US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20080 Fork Sub-Assy, Clutch Release[01.1982 - 12.1987] AT14#,KT147,TT14#..MTM..(DLX,GT,GX,STD,SX) |
31204-20080 |
US $32.98 |
||
|
31250
|
31250
31250-12081 Disc Assy, Clutch[01.1982 - 12.1987] AT140..MTM |
31250-12081 |
US $163.07 |
||
| replacement | |||||
|
31250
|
31250
31250-12393 Disc Assy, Clutch[01.1982 - 12.1987] AT140..MTM |
31250-12393 |
from US $106.56 |
||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[01.1982 - 12.1987] AT14#,KT147,TT14#..MTM |
90363-12003 |
from US $10.56 |
||
|
9010108022
|
9010108022
90101-08022
Bolt, Clutch Pressure Plate
|
90101-08022 |
— | ||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
