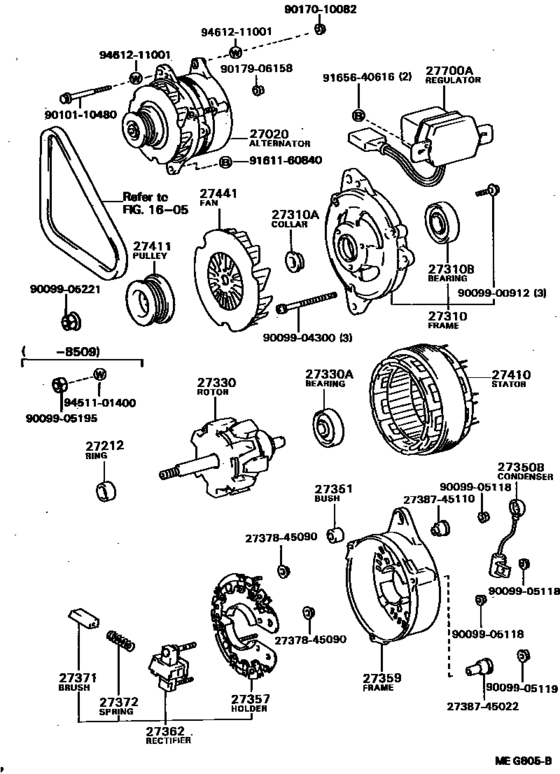

Alternator ([10.1983 - ] 12V 50A (8310- )3ALU) Diagram Toyota CORONA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1983
- To
- 11.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-16030 Alternator Assy[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27020-16030 |
US $960.96 |
||
|
27212
|
27212
27412-15150
Ring, Space(For Alternator Rotor)
[02.1985 - 11.1987] 3ALU..AT150 12V 50A |
27412-15150 |
— | ||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[10.1983 - 02.1985] 3ALU..AT150 12V 50A |
27412-45070 |
— | ||
|
27310
|
27310
27310-15150
Frame Assy, Drive End, Alternator
[10.1983 - 12.1983] 3ALU..AT150 12V 50A |
27310-15150 |
— | ||
| replacements | |||||
|
27310
|
27310
27310-16030
Frame Assy, Drive End, Alternator
[10.1983 - 12.1983] 3ALU..AT150 12V 50A |
27310-16030 |
— | ||
|
27310
|
27310
27412-16040
Ring, Space(For Alternator Rotor)
[10.1983 - 12.1983] 3ALU..AT150 12V 50A |
27412-16040 |
— | ||
|
27310
|
27310
27310-16030
Frame Assy, Drive End, Alternator
[12.1983 - 11.1987] 3ALU..AT150 12V 50A |
27310-16030 |
— | ||
|
27310A
|
27310A
27412-16030
Collar Or Nut(For Alternator Drive End Frame)
[12.1983 - 02.1985] 3ALU..AT150 12V 50A |
27412-16030 |
— | ||
|
27310A
|
27310A
27412-16040
Ring, Space(For Alternator Rotor)
[02.1985 - 11.1987] 3ALU..AT150 12V 50A |
27412-16040 |
— | ||
|
27310A
|
27310A
27412-63030
Collar Or Nut(For Alternator Drive End Frame)
[10.1983 - 12.1983] 3ALU..AT150 12V 50A |
27412-63030 |
— | ||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
90099-10142 |
— | ||
|
27330
|
27330
27330-16030
Rotor Assy, Alternator
[02.1985 - 11.1987] 3ALU..AT150 12V 50A |
27330-16030 |
— | ||
|
27330
|
27330
27330-45070
Rotor Assy, Alternator
[10.1983 - 02.1985] 3ALU..AT150 12V 50A |
27330-45070 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16030
Rotor Assy, Alternator
[10.1983 - 02.1985] 3ALU..AT150 12V 50A |
27330-16030 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27351-38051 |
— | ||
|
27357
|
27357
27357-15022
Holder, Alternator, W/rectifier
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27357-15022 |
— | ||
|
27359
|
27359
27359-63010
Frame, Alternator Rectifier End
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27359-63010 |
— | ||
|
27362
|
27362
27362-15022
Rectifier Assy, W/brush
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27362-15022 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27371-31011 |
from US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27372-31011 |
— | ||
|
27410
|
27410
27410-41080
Stator Assy, Alternator
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27410-41080 |
— | ||
|
27411
|
27411
27411-15150
Pulley, Alternator
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27411-15150 |
— | ||
|
27441
|
27441
27441-15150
Fan, Alternator
[10.1983 - 11.1987] 3ALU..AT150 12V 50A |
27441-15150 |
— | ||
|
27700A
|
27700A
27700-15040 Regulator Assy, Generator[10.1983 - 10.1985] 3ALU,2CL..AT150,CT150 12V 50A,55A |
27700-15040 |
from US $99.78 |
||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905195
|
9009905195
90099-05195
New Genuine Part
|
90099-05195 |
— | ||
|
9009905221
|
9009905221
90099-05221
New Genuine Part
|
90099-05221 |
— | ||
|
9010110480
|
9010110480
90101-10480 Shaft, Brake Pedal |
90101-10480 |
US $1.60 |
||
| replacement | |||||
|
9010110480
|
9010110480
91552-81090 Bolt, No.1(For Alternator) |
91552-81090 |
US $2.62 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
