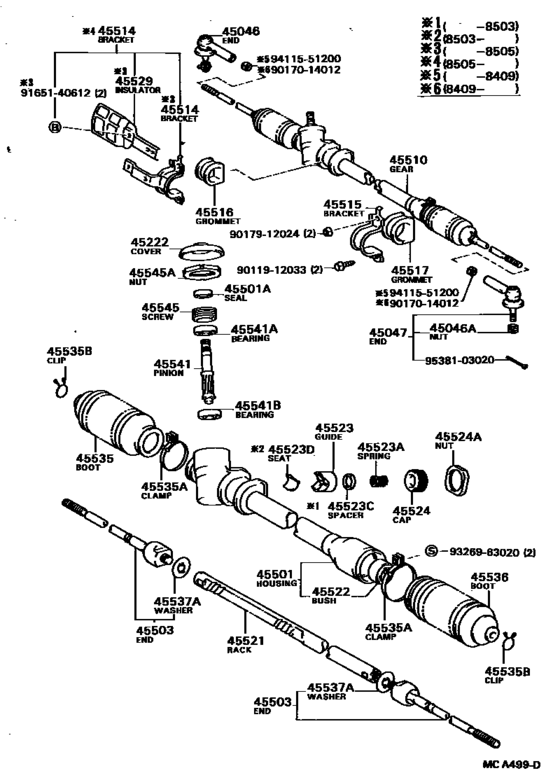

Front Steering Gear & Link ([10.1983 - ] (8310- )AT150..DX,GX,STD) Diagram Toyota CORONA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1983
- To
- 11.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[09.1984 - 11.1987] AT150,CT150,ST150,16# |
45046-19175 |
from US $46.06 |
||
|
45046
|
45046
45046-29135 End Sub-Assy, Tie Rod[01.1983 - 09.1984] AT150,CT150,ST150 |
45046-29135 |
US $58.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.1983 - 11.1987] AT150,CT150,ST150,16# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[09.1984 - 11.1987] AT150,CT150,ST150,16# |
45046-19175 |
from US $46.06 |
||
|
45047
|
45047
45046-29135 End Sub-Assy, Tie Rod[01.1983 - 09.1984] AT150,CT150,ST150 |
45046-29135 |
US $58.06 |
||
|
45222
|
45222
45222-10030
Cover, Steering Gear Dust
[10.1983 - 11.1987] AT150..DX,GX,STD |
45222-10030 |
— | ||
|
45501
|
45501
45501-12090 Housing Sub-Assy, Steering Rack[10.1983 - 11.1987] AT150..DX,GX,STD |
45501-12090 |
US $182 |
||
| replacement | |||||
|
45501
|
45501
45501-12110 Housing Sub-Assy, Steering Rack[10.1983 - 11.1987] AT150..DX,GX,STD |
45501-12110 |
US $180.54 |
||
|
45501A
|
45501A
90311-15001
Seal, Oil(For Steering Bevel Gear Housing)
[10.1983 - 11.1987] AT150..DX,GX,STD |
90311-15001 |
— | ||
| replacement | |||||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[10.1983 - 11.1987] AT150..DX,GX,STD |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-19035 End Sub-Assy, Steering Rack[10.1983 - 09.1984] AT150..DX,GX,STD |
45503-19035 |
US $103.38 |
||
|
45503
|
45503
45503-19036 End Sub-Assy, Steering Rack[09.1984 - 11.1987] AT150..DX,GX,STD |
45503-19036 |
US $80.08 |
||
|
45510
|
45510
45510-12080 Gear Assy, Steering[10.1983 - 09.1984] AT150..DX,GX,STD |
45510-12080 |
US $620.26 |
||
| replacements | |||||
|
45510
|
45510
45222-10030
Cover, Steering Gear Dust
[10.1983 - 09.1984] AT150..DX,GX,STD |
45222-10030 |
— | ||
|
45510
|
45510
45046-19175 End Sub-Assy, Tie Rod[10.1983 - 09.1984] AT150..DX,GX,STD |
45046-19175 |
from US $46.06 |
||
|
45510
|
45510
90170-14012 Nut, Rack End Lock[10.1983 - 09.1984] AT150..DX,GX,STD |
90170-14012 |
from US $1.13 |
||
|
45510
|
45510
45510-12230 Gear Assy, SteeringSTEERING [10.1983 - 09.1984] AT150..DX,GX,STD |
45510-12230 |
US $643.55 |
||
|
45510
|
45510
45510-12081 Gear Assy, Steering[09.1984 - 11.1987] AT150..DX,GX,STD |
45510-12081 |
US $623.17 |
||
| replacements | |||||
|
45510
|
45510
45222-10030
Cover, Steering Gear Dust
[09.1984 - 11.1987] AT150..DX,GX,STD |
45222-10030 |
— | ||
|
45510
|
45510
45510-12230 Gear Assy, SteeringSTEERING [09.1984 - 11.1987] AT150..DX,GX,STD |
45510-12230 |
US $643.55 |
||
|
45514
|
45514
45505-12010 Bracket, Steering Rack Housing, No.1[05.1985 - 11.1987] AT150..DX,GX,STD |
45505-12010 |
US $21.84 |
||
|
45514
|
45514
45514-12050
Bracket, Steering Rack Housing, No.1
[10.1983 - 05.1985] AT150..DX,GX,STD |
45514-12050 |
— | ||
|
45515
|
45515
45515-12060 Bracket, Steering Rack Housing, No.2[10.1983 - 11.1987] AT150..DX,GX,STD |
45515-12060 |
US $10.63 |
||
| replacement | |||||
|
45515
|
45515
45515-12070 Bracket, Steering Rack Housing, No.2[10.1983 - 11.1987] AT150..DX,GX,STD |
45515-12070 |
US $10.77 |
||
|
45516
|
45516
45516-20010 Grommet, Steering Rack Housing, No.1[01.1983 - 11.1987] AT150,CT150,ST150,16# |
45516-20010 |
US $12.16 |
||
|
45517
|
45517
45517-12050
Grommet, Steering Rack Housing, No.2
[10.1983 - 11.1987] AT150..DX,GX,STD |
45517-12050 |
— | ||
|
45521
|
45521
45521-12110 Rack, Steering[10.1983 - 11.1987] AT150..DX,GX,STD |
45521-12110 |
US $128.13 |
||
|
45522
|
45522
45522-10021 Bush, Steering Rack[11.1983 - 11.1987] AT150..DX,GX,STD |
45522-10021 |
US $30.40 |
||
|
45522
|
45522
45522-10030
Bush, Steering Rack
[10.1983 - 11.1983] AT150..DX,GX,STD |
45522-10030 |
— | ||
| replacement | |||||
|
45522
|
45522
45522-10021 Bush, Steering Rack[10.1983 - 11.1983] AT150..DX,GX,STD |
45522-10021 |
US $30.40 |
||
|
45523
|
45523
45523-16011
Guide, Rack(For Steering Gear)
[10.1983 - 03.1985] AT150..DX,GX,STD |
45523-16011 |
— | ||
|
45523
|
45523
45523-17012
Guide, Rack(For Steering Gear)
[03.1985 - 11.1987] AT150..DX,GX,STD |
45523-17012 |
— | ||
| replacement | |||||
|
45523
|
45523
45523-12040 Guide, Rack(For Steering Gear)[03.1985 - 11.1987] AT150..DX,GX,STD |
45523-12040 |
from US $6.81 |
||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[10.1983 - 03.1985] AT150..DX,GX,STD |
90501-23007 |
from US $1.49 |
||
|
45523A
|
45523A
90501-28007 Spring(For Steering Gear Rack Guide)[03.1985 - 11.1987] AT150..DX,GX,STD |
90501-28007 |
US $2.62 |
||
|
45523C
|
45523C
90560-23003 Spacer(For Rack Guide)[10.1983 - 03.1985] AT150..DX,GX,STD |
90560-23003 |
US $8.01 |
||
|
45523D
|
45523D
44277-17010
Seat, Rack Guide
[03.1985 - 11.1987] AT150..DX,GX,STD |
44277-17010 |
— | ||
|
45524
|
45524
45524-12020 Cap, Steering Rack Guide Spring[03.1985 - 11.1987] AT150..DX,GX,STD |
45524-12020 |
US $11.50 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[10.1983 - 03.1985] AT150..DX,GX,STD |
45524-16010 |
US $8.91 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[10.1983 - 11.1987] AT150..DX,GX,STD |
90179-36002 |
US $4.89 |
||
|
45529
|
45529
45529-12010
Insulator, Steering Rack Boot Heat
[10.1983 - 05.1985] AT150 |
45529-12010 |
— | ||
|
45535
|
45535
45535-12011 Boot, Steering Rack, No.1[10.1983 - 11.1987] AT150..DX,GX,STD |
45535-12011 |
US $27.66 |
||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[10.1983 - 11.1987] AT150..DX,GX,STD NO.1 |
90461-10273 |
from US $4.96 |
||
|
45535A
|
45535A
90949-01082 Clamp(For Power Steering Rack Boot)[10.1983 - 11.1987] AT150..DX,GX,STD NO.2 |
90949-01082 |
US $4.96 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[10.1983 - 11.1987] AT150..DX,GX,STD |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45536-12030 Boot, Steering Rack, No.2[10.1983 - 11.1987] AT150..DX,GX,STD |
45536-12030 |
US $26.94 |
||
|
45537A
|
45537A
90214-14002 Washer, Claw(For Power Steering Rack End)[10.1983 - 11.1987] AT150..DX,GX,STD |
90214-14002 |
from US $1.33 |
||
|
45541
|
45541
45541-12050 Pinion, Steering[10.1983 - 11.1987] AT150..DX,GX,STD |
45541-12050 |
from US $47.47 |
||
|
45541A
|
45541A
90363-15003 Bearing, Radial Ball(For Steering Rack Housing)[10.1983 - 11.1987] AT150..DX,GX,STD |
90363-15003 |
from US $32.53 |
||
|
45541B
|
45541B
90363-13001
Bearing, Radial Ball(For Steering Rack Housing)
[10.1983 - 11.1987] AT150..DX,GX,STD |
90363-13001 |
— | ||
|
45545
|
45545
45545-10010 Screw, Pinion Bearing Adjusting[10.1983 - 11.1987] AT150..DX,GX,STD |
45545-10010 |
US $15.03 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[10.1983 - 11.1987] AT150..DX,GX,STD |
90179-38001 |
US $8.91 |
||
|
9011912033
|
9011912033
90119-12033 New Genuine Part |
90119-12033 |
US $4.66 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
