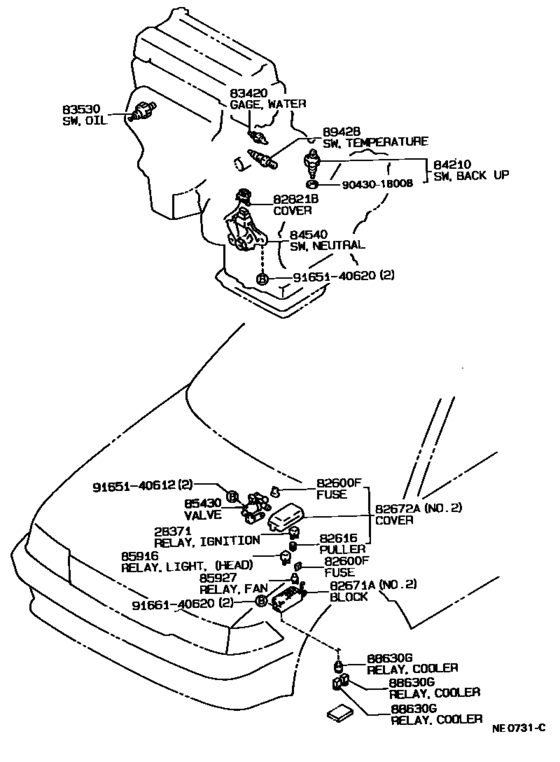

Switch & Relay & Computer ([12.1987 - ] (8712- )AT17#) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AT171
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA/ CARINA 2
- From
- 12.1987
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona/ Carina 2
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1987 - 11.1992] 4AF,2C,3SF#..AT17#,CT17#,ST171 |
90987-04002 |
from US $25.27 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1987 - 11.1992] AT17#,CT17#,ST171 30A,30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1987 - 02.1988] AT17#,CT17#,ST171 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1987 - 02.1988] AT17#,CT17#,ST171 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1987 - 11.1992] AT17#,CT17#,ST171 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1987 - 11.1992] AT17#,CT17#,ST171 7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1987 - 11.1992] AT17#,CT17#,ST171 |
82616-12010 |
from US $3.04 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[12.1987 - 11.1992] AT17#,CT17#,ST171 NO.1 |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20120 Block, JunctionJUNCTION [12.1987 - 11.1992] AT17#,CT17#,ST171..LHD NO.3 |
82671-20120 |
US $230.05 |
||
|
82671A
|
82671A
82671-32030
Block, Junction
[12.1987 - 11.1989] AT17# NO.2 |
82671-32030 |
— | ||
|
82672A
|
82672A
82672-20320 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT17#,CT17#,ST171..LHD NO.3 |
82672-20320 |
US $13.40 |
||
|
82672A
|
82672A
82672-20350 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT17#,CT17#,ST171..LHD NO.1 |
82672-20350 |
US $9.46 |
||
|
82672A
|
82672A
82672-20450 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1989] AT17# NO.2 |
82672-20450 |
US $31.30 |
||
|
82672A
|
82672A
82672-20640 Cover, Junction BlockJUNCTION BLOCK [11.1989 - 11.1992] AT17# NO.2 |
82672-20640 |
US $40.91 |
||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[12.1987 - 11.1992] AT17#,ST171 |
83420-16020 |
US $56.70 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[12.1987 - 11.1989] AT17# |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[12.1987 - 11.1989] AT17# |
83530-60050 |
from US $30.54 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[03.1990 - 11.1992] AT17# |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[03.1990 - 11.1992] AT17# |
83530-60050 |
from US $30.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1987 - 11.1992] AT17#,CT17#,ST171..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1987 - 11.1992] AT17#,CT17#,ST171..MTM |
84210-52050 |
from US $20.67 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,MARUKO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,*ND |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02006 Relay[12.1987 - 08.1990] AT17#,CT17#,ST171 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-03001 Relay[12.1987 - 11.1992] AT17#,CT17#,ST171 |
90987-03001 |
from US $33.90 |
||
|
88630G
|
88630G
85926-30020 Relay, Headlamp Dimmer[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED MB4 TYPE |
85926-30020 |
from US $51.40 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED MB5 TYPE |
88630-32010 |
— | ||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED M4 TYPE |
90987-02004 |
from US $28.20 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT17# ENGINE |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT17# ENGINE |
89428-32010 |
US $84.91 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.28 |
||
