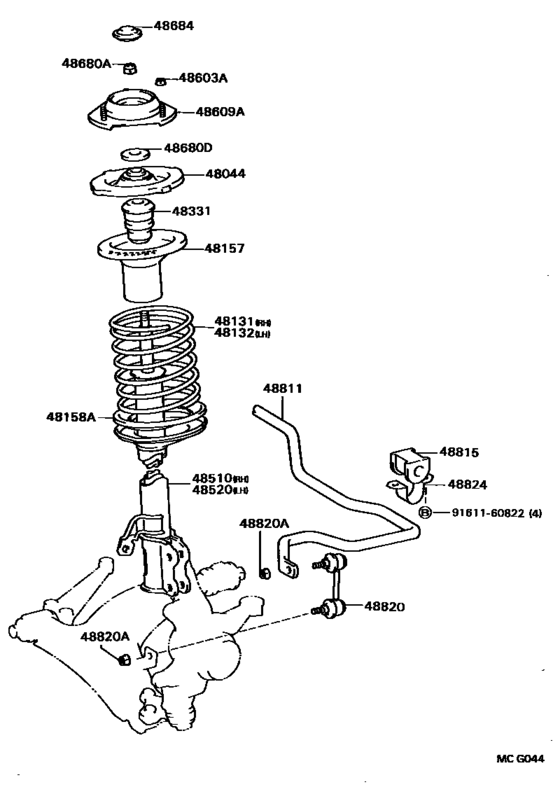

Front Spring & Shock Absorber ([08.1988 - ] (8808- )AT175) Diagram Toyota CORONA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- AT175
- grade
- GX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1988
- To
- 02.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-32010
Seat Sub- Assy, Front Spring, No.1
[08.1988 - 02.1992] AT175 |
48044-32010 |
— | ||
|
48131
|
48131
48131-2D220 Spring, Front Coil, Rh[08.1988 - 02.1992] AT175..5F |
48131-2D220 |
US $133.95 |
||
| replacement | |||||
|
48131
|
48131
48131-1K230 Spring, Front Coil, Rh[08.1988 - 02.1992] AT175..5F |
48131-1K230 |
US $135.41 |
||
|
48132
|
48132
48131-2D220 Spring, Front Coil, Rh[08.1988 - 02.1992] AT175..5F |
48131-2D220 |
US $133.95 |
||
| replacement | |||||
|
48132
|
48132
48131-1K230 Spring, Front Coil, Rh[08.1988 - 02.1992] AT175..5F |
48131-1K230 |
US $135.41 |
||
|
48157
|
48157
48157-20040
Insulator, Front Coil Spring, Upper
[08.1988 - 02.1992] AT175 |
48157-20040 |
— | ||
|
48158A
|
48158A
48158-12030 Insulator, Front Coil Spring, Lower[12.1987 - 08.1990] AT17#,CT17#,ET176,ST17# |
48158-12030 |
from US $10.88 |
||
|
48158A
|
48158A
48158-20060 Insulator, Front Coil Spring, Lower[09.1990 - 11.1992] AT17#,CT17#,ET176,ST17# |
48158-20060 |
US $13.83 |
||
|
48331
|
48331
48331-12130 Bumper, Front Spring, No.1[12.1987 - 02.1992] AT175,CT170,ST17# |
48331-12130 |
US $31.62 |
||
|
48510
|
48510
48510-20262 Absorber Assy, Shock, Front Rh[08.1988 - 02.1992] AT175 |
48510-20262 |
US $327.60 |
||
| replacement | |||||
|
48510
|
48510
48510-20393
Absorber Assy, Shock, Front Rh
[08.1988 - 02.1992] AT175 |
48510-20393 |
— | ||
|
48520
|
48520
48520-20252 Absorber Assy, Shock, Front Lh[08.1988 - 02.1992] AT175 |
48520-20252 |
US $327.60 |
||
| replacement | |||||
|
48520
|
48520
48520-20383
Absorber Assy, Shock, Front Lh
[08.1988 - 02.1992] AT175 |
48520-20383 |
— | ||
|
48603A
|
48603A
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90179-10095 |
US $1.76 |
||
|
48609A
|
48609A
48609-20100 Support Sub-Assy, Front Suspension[08.1988 - 02.1992] AT175 |
48609-20100 |
US $85.90 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90303-22049 |
from US $4.02 |
||
|
48684
|
48684
48684-32010 Cover, Bearing Dust[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
48684-32010 |
US $9.44 |
||
|
48811
|
48811
48811-20480 Bar, Stabilizer, Front[08.1988 - 02.1992] AT175 |
48811-20480 |
US $209.66 |
||
|
48815
|
48815
48815-24020 Bush, Front Stabilizer Bar, No.1[08.1988 - 02.1992] AT175 |
48815-24020 |
US $9.44 |
||
|
48820
|
48820
48820-20010 Link Assy, Front Stabilizer[08.1988 - 02.1992] AT175 |
48820-20010 |
US $78.44 |
||
|
48820A
|
48820A
90179-10054 Nut, No.1 (For Center Support Bearing)[12.1987 - 02.1992] AT17#,CT170,ST17# |
90179-10054 |
from US $0.37 |
||
|
48824
|
48824
48824-20040
Bracket, Stabilizer, Front
[08.1988 - 02.1992] AT175 |
48824-20040 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
