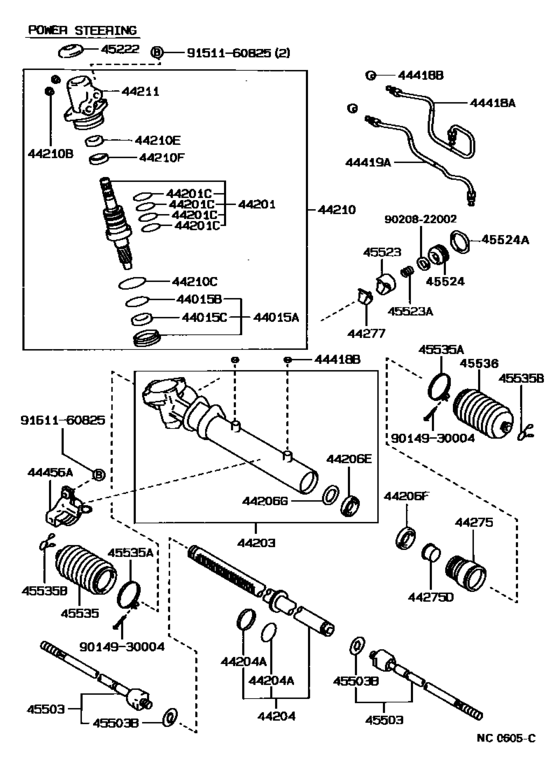

Front Steering Gear & Link ([08.1988 - ] (8808- )AT175) Diagram Toyota CORONA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- AT175
- grade
- GX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1988
- To
- 02.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-20010 Nut Sub-Assy, Bearing Guide[12.1987 - 12.1988] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
44015-20010 |
US $99.01 |
||
| replacement | |||||
|
44015A
|
44015A
44015-22020 Nut Sub-Assy, Bearing Guide[12.1987 - 12.1988] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
44015-22020 |
US $96.10 |
||
|
44015A
|
44015A
44015-22020 Nut Sub-Assy, Bearing Guide[12.1988 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
44015-22020 |
US $96.10 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90301-43002 |
from US $3.84 |
||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[12.1987 - 12.1988] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
90310-25004 |
from US $2.88 |
||
|
44015C
|
44015C
90310-25020 Seal, Oil(For Bearing Guide Nut)[12.1988 - 04.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90310-25020 |
US $2.62 |
||
| replacement | |||||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[12.1988 - 04.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90310-25004 |
from US $2.88 |
||
|
44201
|
44201
44201-20170 Valve Sub-Assy, Power Steering Control[08.1988 - 02.1992] AT175 |
44201-20170 |
US $292.66 |
||
|
44201C
|
44201C
90562-32003
Ring(For Power Steering Control Valve)
[12.1987 - 12.1988] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
90562-32003 |
— | ||
| replacement | |||||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[12.1987 - 12.1988] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
90562-33007 |
US $1.76 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[12.1988 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90562-33007 |
US $1.76 |
||
|
44203
|
44203
44203-20160 Housing Sub-Assy, Power Steering Rack[08.1988 - 02.1992] AT175 |
44203-20160 |
US $522.70 |
||
|
44204
|
44204
44204-20150 Rack Sub-Assy, Power Steering[08.1988 - 02.1992] AT175 |
44204-20150 |
US $216.94 |
||
|
44204A
|
44204A
90301-34003
Ring(For Rack Steering Piston)
[11.1989 - 11.1992] CT176,ET176;AT17#,CT170,ST170..EXS,GX,SELS,X,Z 内側 |
90301-34003 |
— | ||
|
44204A
|
44204A
90562-38002
Ring(For Rack Steering Piston)
[12.1987 - 11.1989] AT175; CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z 外側 |
90562-38002 |
— | ||
|
44206E
|
44206E
90310-25018 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
90310-25018 |
from US $3.84 |
||
|
44206F
|
44206F
90310-25018 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
90310-25018 |
from US $3.84 |
||
|
44206G
|
44206G
90560-26011 Spacer, No.1(For Power Steering Cylinder Tube)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
90560-26011 |
US $3.06 |
||
|
44210
|
44210
44210-20200 Valve Assy, Power Steering Control[08.1988 - 02.1992] AT175 |
44210-20200 |
US $560.56 |
||
|
44210B
|
44210B
90410-06005 Seat, Union(Pressure Control Valve Assy)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90410-06005 |
US $2.56 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90301-51001 |
from US $2.77 |
||
|
44210E
|
44210E
90311-19002 Seal, Oil(For Adjuster Plug)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90311-19002 |
from US $3.04 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90363-19003 |
US $18.85 |
||
|
44211
|
44211
44211-20030 Housing, Control Valve[08.1988 - 02.1992] AT175 |
44211-20030 |
US $192.19 |
||
| replacement | |||||
|
44211
|
44211
44211-20180 Housing, Control Valve[08.1988 - 02.1992] AT175 |
44211-20180 |
US $193.65 |
||
|
44275
|
44275
44275-20050 Stopper, Cylinder End[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
44275-20050 |
US $28.39 |
||
|
44275D
|
44275D
90386-25002 Bush(For Cylinder End Stopper)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90386-25002 |
US $1.43 |
||
|
44277
|
44277
44277-20010
Seat, Rack Guide
[12.1987 - 10.1991] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
44277-20010 |
— | ||
|
44277
|
44277
44277-20050 Seat, Rack Guide[10.1991 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
44277-20050 |
US $5.64 |
||
|
44418A
|
44418A
44418-20150 Tube, Steering Right Turn Pressure[08.1988 - 02.1992] AT175 |
44418-20150 |
US $17.18 |
||
|
44418B
|
44418B
90410-04001 Seat, Union(For Steering Turn Pressure Tube)[08.1988 - 02.1992] AT175 CONTROL VALVE SIDE |
90410-04001 |
US $2.72 |
||
|
44418B
|
44418B
90410-04002 Seat, Union(For Power Steering Rack Housing)[08.1988 - 02.1992] AT175 CYLINDER TUBE SIDE |
90410-04002 |
US $2.72 |
||
|
44419A
|
44419A
44419-20140 Tube, Steering Left Turn Pressure[08.1988 - 02.1992] AT175 |
44419-20140 |
US $17.18 |
||
|
44456A
|
44456A
44456-20040 Retainer, Power Steering Tube Support, No.1[09.1988 - 02.1992] AT175 |
44456-20040 |
US $27.66 |
||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
45222-32010 |
from US $5.48 |
||
|
45503
|
45503
45503-29605 End Sub-Assy, Steering Rack[08.1988 - 02.1992] AT175 |
45503-29605 |
US $94.64 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# 外径＝３７ |
90214-14002 |
from US $1.33 |
||
|
45523
|
45523
45523-12010
Guide, Rack(For Power Steering)
[12.1987 - 10.1991] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z; CT176,ET176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45523-12010 |
— | ||
|
45523
|
45523
45523-20050
Guide, Rack(For Steering Gear)
[10.1991 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
45523-20050 |
— | ||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90501-23007 |
from US $1.49 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[12.1987 - 10.1991] AT17#,CT17#,ET176,ST17# |
45524-16010 |
US $9.61 |
||
|
45524
|
45524
45524-20040 Cap, Rack Guide Spring(For Power Steering)[10.1991 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
45524-20040 |
US $11.01 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-20040 Boot, Steering Rack No.1(For Power Steering)[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
45535-20040 |
US $25.38 |
||
|
45535A
|
45535A
90460-53002 Clamp(For Power Steering Rack Boot)[12.1987 - 11.1992] CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
90460-53002 |
US $6.40 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45535-20040 Boot, Steering Rack No.1(For Power Steering)[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
45535-20040 |
US $25.38 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9020822002
|
9020822002
90208-22002 LEXWASHERCONE SPRG |
90208-22002 |
US $1.75 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
