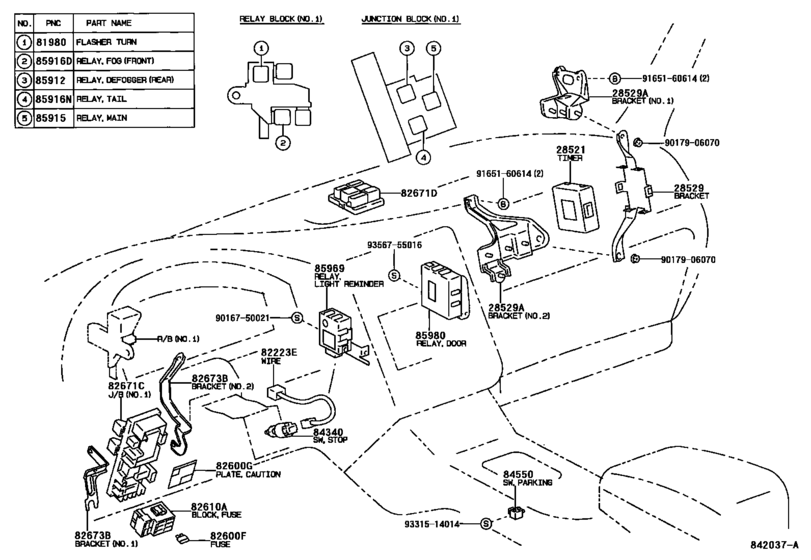

Switch & Relay & Computer ([03.1992 - ] COWL (9203- )JPP..LHD) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- AT190
- grade
- XL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- CORONA (SED/LB/UKP)
- From
- 03.1992
- To
- 01.1996
- Vehicle Model
- Corona (SED/LB)
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
81980-32010 |
from US $54.54 |
||
|
82223E
|
82223E
82223-20130 Wire, Clutch Start Switch[03.1992 - 02.1994] AT190,CT190,ST191..JPP |
82223-20130 |
US $6.84 |
||
|
82600F
|
82600F
90080-82005 Fuse, Fuse Block[03.1992 -] AT190,CT190,ST191..JPP 30A |
90080-82005 |
US $1.46 |
||
|
82600F
|
82600F
90080-82014
Fuse, Fuse Block
[03.1992 -] AT190,CT190,ST191..JPP 20A |
90080-82014 |
— | ||
| replacement | |||||
|
82600F
|
82600F
90982-09004 Fusible Link[03.1992 -] AT190,CT190,ST191..JPP 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[03.1992 - 11.1997] AT190,CT190,ST191..JPP 7.5A |
90080-82015 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[03.1992 - 11.1997] AT190,CT190,ST191..JPP 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[03.1992 - 11.1997] AT190,CT190,ST191..JPP 15A |
90982-09003 |
from US $0.92 |
||
|
82600G
|
82600G
82683-20110 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [03.1992 -] AT190,CT190,ST191..JPP..LHD |
82683-20110 |
US $3.93 |
||
|
82610A
|
82610A
82610-20070 Block Assy, Fuse[03.1992 - 05.1993] ST191..JPP..GL;AT190,CT190..JPP |
82610-20070 |
US $23.59 |
||
|
82671C
|
82671C
82671-20320 Block, JunctionJUNCTION [03.1992 - 02.1994] AT190,CT190,ST191..JPP..LHD NO.1 J/B |
82671-20320 |
US $109.20 |
||
|
82671D
|
82671D
82671-20270 Block, Junction[03.1992 - 05.1993] ST191..JPP..GL;AT190,CT190..JPP |
82671-20270 |
US $38.88 |
||
|
82673B
|
82673B
82673-20100 Bracket, Junction BlockJUNCTION BLOCK [03.1992 -] AT190,CT190,ST191..JPP..LHD NO.2 |
82673-20100 |
US $5.39 |
||
|
82673B
|
82673B
82673-20180 Bracket, Junction BlockJUNCTION BLOCK [03.1992 -] AT190,CT190,ST191..JPP..LHD NO.1 |
82673-20180 |
US $6.70 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84340-32050 |
from US $19.15 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[03.1992 -] AT190,CT190,ST191..JPP..LHD |
84550-16060 |
from US $17.48 |
||
|
85912
|
85912
90987-02009 Relay Assy[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
90987-02009 |
US $64.60 |
||
|
85915
|
85915
90987-02009 Relay Assy[03.1992 - 06.1996] ST191..JPP..GL;AT190,CT190..JPP |
90987-02009 |
US $64.60 |
||
|
85916N
|
85916N
90987-02009 Relay Assy[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
90987-02009 |
US $64.60 |
||
|
85980
|
85980
85980-20320 Relay Assy, Door ControlDOOR CONTROL [03.1992 - 05.1992] AT190,CT190,ST191..JPP..LHD |
85980-20320 |
US $337.79 |
||
| replacement | |||||
|
85980
|
85980
85980-20321 Relay Assy, Door ControlDOOR CONTROL [03.1992 - 05.1992] AT190,CT190,ST191..JPP..LHD |
85980-20321 |
US $337.79 |
||
|
85980
|
85980
85980-20321 Relay Assy, Door ControlDOOR CONTROL [02.1994 - 01.1996] AT190..JPP..LHD..XL W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
85980-20321 |
US $337.79 |
||
|
85980
|
85980
85980-20350 Relay Assy, Door ControlDOOR CONTROL [05.1992 - 02.1994] AT190,CT190,ST191..JPP..LHD W(*EL W/INTERLINKING KNOB) |
85980-20350 |
US $337.79 |
||
|
9016750021
|
9016750021
90167-50021
Direct
|
90167-50021 |
— | ||
| replacement | |||||
|
9016750021
|
9016750021
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
