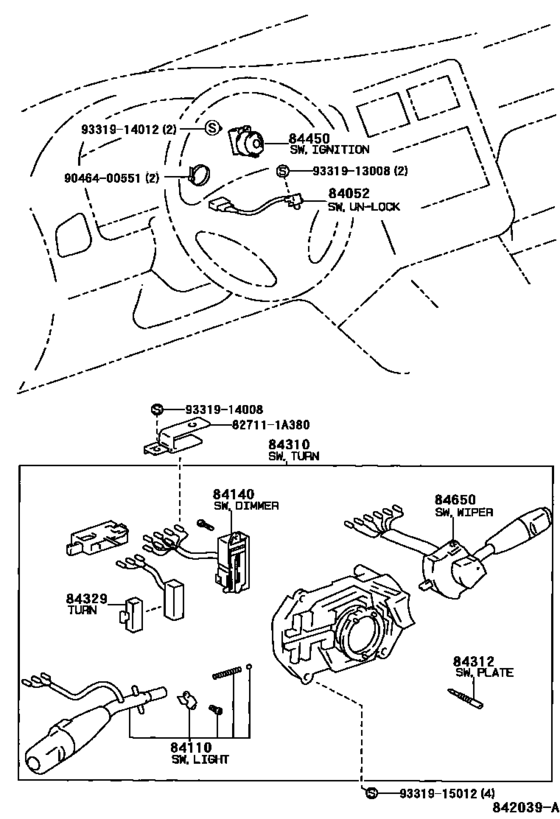

Switch & Relay & Computer ([03.1992 - ] COMBINATION SWITCH (9203- )JPP..LHD) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- AT190
- grade
- XL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- CORONA (SED/LB/UKP)
- From
- 03.1992
- To
- 01.1996
- Vehicle Model
- Corona (SED/LB)
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-20030 Switch Assy, Un-Lock Warning[03.1992 - 06.1996] ST191..JPP..GL;AT190,CT190..JPP |
84052-20030 |
US $26.06 |
||
|
84110
|
84110
84112-80110
Switch Assy, Light Control, No.1
[03.1992 - 01.1996] AT190..JPP..LHD..XL W(INT WIPER) |
84112-80110 |
— | ||
|
84110
|
84110
84112-80113 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [03.1992 - 01.1996] AT190..JPP..LHD..XL |
84112-80113 |
US $70.91 |
||
|
84140
|
84140
84140-12250 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [03.1992 - 01.1996] AT190..JPP..LHD..XL |
84140-12250 |
US $77.17 |
||
|
84140
|
84140
84140-20480 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW) |
84140-20480 |
US $65.37 |
||
| replacement | |||||
|
84140
|
84140
84140-26100
Switch Assy, Headlamp Dimmer
[03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW) |
84140-26100 |
— | ||
|
84310
|
84310
84310-2H610
Switch Assy, Turn Signal
[03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW---WASHER LINKED) |
84310-2H610 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-2H620
Switch Assy, Turn Signal
[03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW---WASHER LINKED) |
84310-2H620 |
— | ||
|
84310
|
84310
84310-2H700 Switch Assy, Turn SignalTURN SIGNAL [03.1992 - 01.1996] AT190..JPP..LHD..XL |
84310-2H700 |
US $234.42 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW) |
84312-12040 |
from US $6.51 |
||
|
84312
|
84312
84312-12050 Plate, Horn Contact[03.1992 - 01.1996] AT190..JPP..LHD..XL |
84312-12050 |
from US $8.74 |
||
|
84329
|
84329
84329-12030 Switch, Turn SignalTURN SIGNAL [03.1992 - 01.1996] AT190..JPP..LHD..XL |
84329-12030 |
US $14.12 |
||
|
84450
|
84450
84450-20260 Switch Assy, Ignition Or Starter[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84450-20260 |
US $76.96 |
||
|
84650
|
84650
84652-2G070 Switch Assy, Windshield WiperWINDSHIELD WIPER [03.1992 - 01.1996] AT190..JPP..LHD..XL |
84652-2G070 |
US $96.10 |
||
|
84650
|
84650
84652-2G120 Switch Assy, Windshield WiperWINDSHIELD WIPER [03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW---WASHER LINKED) |
84652-2G120 |
US $109.20 |
||
| replacement | |||||
|
84650
|
84650
84652-2G130 Switch Assy, Windshield WiperWINDSHIELD WIPER [03.1992 - 01.1996] AT190..JPP..LHD..XL W(*IW---WASHER LINKED) |
84652-2G130 |
US $133.95 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
