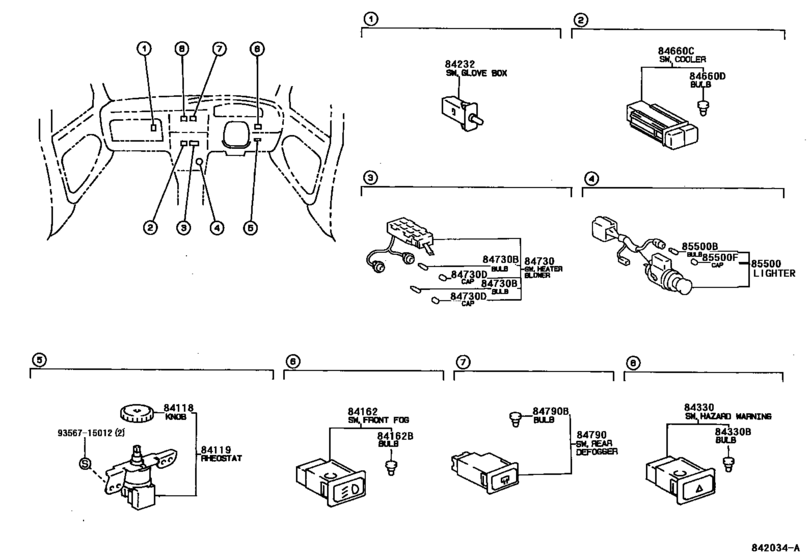

Switch & Relay & Computer ([03.1992 - ] INSTRUMENT PANEL SWITCH (9203- )JPP..RHD) Diagram Toyota CORONA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- AT190
- grade
- GL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CORONA (SED/LB/UKP)
- From
- 03.1992
- To
- 11.1997
- Vehicle Model
- Corona (SED/LB)
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-14020 Knob, Light Control Rheostat[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84118-14020 |
US $12.81 |
||
|
84119
|
84119
84119-20211 Rheostat, Light Control[03.1992 - 06.1996] AT190,ST191..JPP..RHD |
84119-20211 |
US $81.54 |
||
|
84162
|
84162
84160-20150
Switch, Front Fog Lamp
[03.1992 - 06.1996] AT190,CT190,ST191..JPP..GL |
84160-20150 |
— | ||
|
84162B
|
84162B
84999-10320 Bulb, Satellite Switch[03.1992 - 06.1996] AT190,CT190,ST191..JPP..GL 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84232
|
84232
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-20290 Switch Assy, Hazard Warning Signal[03.1992 - 06.1996] AT190,ST191..JPP..RHD |
84332-20290 |
US $56.93 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[03.1992 - 06.1996] AT190,CT190,ST191..JPP 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84660C
|
84660C
84660-20200 Switch, CoolerCOOLER [03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84660-20200 |
from US $36.91 |
||
|
84660D
|
84660D
88607-10020
Bulb(For Cooler Switch)
[02.1994 - 06.1996] AT190,CT190,ST191..JPP 14V 0.08A |
88607-10020 |
— | ||
|
84730
|
84730
84732-20310 Switch Assy, Heater Blower[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84732-20310 |
US $68.43 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[03.1992 - 06.1996] AT190,CT190,ST191..JPP 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
90339-04023 Cap, Position Indicator Lamp[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
90339-04023 |
US $3.84 |
||
|
84790
|
84790
84790-20390 Switch Assy, Rear Window Defogger[03.1992 - 06.1996] AT190,ST191..JPP..RHD |
84790-20390 |
US $136.86 |
||
|
84790B
|
84790B
84999-10510 Bulb(For Rear Window Defogger Switch)[03.1992 - 06.1996] AT190,ST191..JPP..RHD 12V 0.56W |
84999-10510 |
US $5.10 |
||
|
85500
|
85500
85500-20230 Lighter Assy, Cigarette[03.1992 - 02.1994] AT190,CT190,ST191..JPP |
85500-20230 |
US $70.47 |
||
| replacement | |||||
|
85500
|
85500
85500-24040 Lighter Assy, Cigarette[03.1992 - 02.1994] AT190,CT190,ST191..JPP |
85500-24040 |
US $70.32 |
||
|
85500
|
85500
85500-20270 Lighter Assy, Cigarette[02.1994 - 06.1996] AT190,CT190,ST191..JPP |
85500-20270 |
US $70.47 |
||
| replacement | |||||
|
85500
|
85500
85500-24040 Lighter Assy, Cigarette[02.1994 - 06.1996] AT190,CT190,ST191..JPP |
85500-24040 |
US $70.32 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[03.1992 - 06.1996] AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[03.1992 - 06.1996] AT190,CT190,ST191..JPP |
84998-10510 |
US $3.68 |
||
|
9356715012
|
9356715012
93567-15012
New Genuine Part
|
93567-15012 |
— | ||
| replacement | |||||
|
9356715012
|
9356715012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
