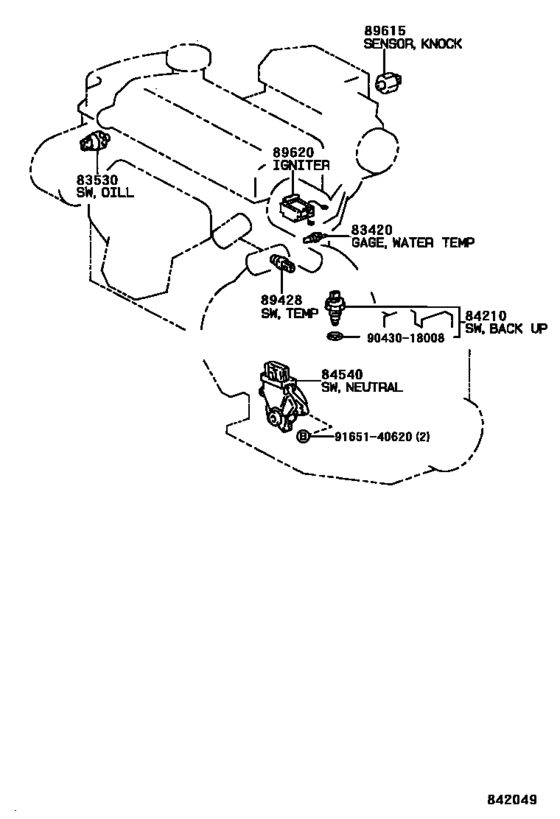

Switch & Relay & Computer ([01.1996 - ] ENGINE & TRANSMISSION (9601- )AT190..UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- AT190
- grade
- GL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-05010
Gage Assy, Water Temperature Sender
[01.1996 - 10.1997] AT190..UKP JAEGER |
83420-05010 |
— | ||
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[01.1996 - 10.1997] AT190,ST191..UKP YAZAKI |
83420-20040 |
from US $37.91 |
||
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 10.1997] AT190..UKP JAEGER |
83530-05010 |
— | ||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 10.1997] AT190..UKP YAZAKI; ST191..UKP |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1996 - 10.1997] AT190..UKP YAZAKI; ST191..UKP |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[01.1996 - 10.1997] AT190,CT190,ST191..UKP..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.1996 - 10.1997] AT190,CT190,ST191..UKP..MTM |
84210-52050 |
from US $20.67 |
||
|
89428
|
89428
89428-12160 Switch, Temperature Detect, No.2[01.1996 - 10.1997] AT190..UKP |
89428-12160 |
from US $78.44 |
||
|
89620
|
89620
89620-12440 Igniter Assy[01.1996 - 08.1997] AT190..UKP |
89620-12440 |
US $396.61 |
||
|
89620
|
89620
89620-16260 Igniter Assy[08.1997 - 10.1997] AT190..UKP |
89620-16260 |
US $338.96 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
