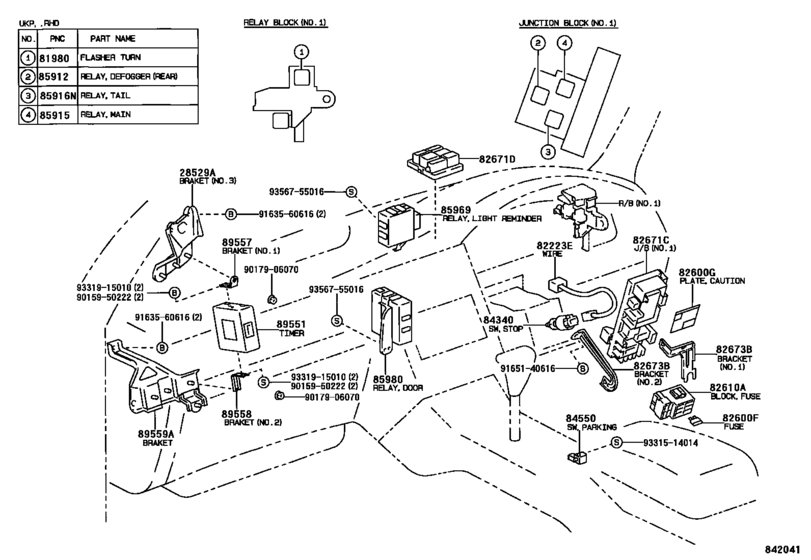

Switch & Relay & Computer ([01.1996 - ] COWL (9601- )UKP..RHD) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- AT190
- grade
- GL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-05010
Flasher Assy, Turn Signal
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
81980-05010 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
81980-32010 |
from US $56.55 |
||
|
82223E
|
82223E
82223-20130 Wire, Clutch Start Switch[01.1996 - 07.1996] AT190,CT190,ST191..UKP |
82223-20130 |
US $6.84 |
||
|
82223E
|
82223E
82223-20150 Wire, Clutch Start SwitchCLUTCH START SWITCH [07.1996 - 10.1997] AT190,CT190,ST191..UKP |
82223-20150 |
US $6.26 |
||
|
82600F
|
82600F
90080-82005 Fuse, Fuse Block[01.1996 - 10.1997] AT190,CT190,ST191..UKP 30A |
90080-82005 |
US $1.46 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 10A |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[01.1996 - 10.1997] AT190,CT190,ST191..UKP 15A |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82014
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 20A |
90080-82014 |
— | ||
| replacement | |||||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1996 - 10.1997] AT190,CT190,ST191..UKP 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 7.5A |
90080-82015 |
— | ||
|
82600G
|
82600G
82683-20140 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [01.1996 - 10.1997] AT190,ST191..UKP..RHD |
82683-20140 |
US $3.64 |
||
|
82610A
|
82610A
82610-20070 Block Assy, Fuse[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
82610-20070 |
US $23.59 |
||
|
82671C
|
82671C
82671-20290 Block, Junction[01.1996 - 10.1997] AT190,ST191..UKP..RHD |
82671-20290 |
US $109.20 |
||
|
82671D
|
82671D
82671-20270 Block, Junction[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
82671-20270 |
US $38.88 |
||
|
82673B
|
82673B
82673-20090 Bracket, Junction Block[01.1996 - 10.1997] AT190,ST191..UKP..RHD NO.1 |
82673-20090 |
US $6.26 |
||
|
82673B
|
82673B
82673-20110 Bracket, Junction Block[01.1996 - 10.1997] AT190,ST191..UKP..RHD NO.2 |
82673-20110 |
US $5.24 |
||
|
84340
|
84340
84340-05010 Switch Assy, Stop LampSTOP LAMP [01.1996 - 02.1997] AT190,CT190,ST191..UKP BONNELLA |
84340-05010 |
US $29.85 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[01.1996 - 10.1997] AT190,CT190,ST191..UKP MATSUSHITA |
84340-32050 |
from US $19.29 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[01.1996 - 10.1997] AT190,ST191..UKP..RHD |
84550-33010 |
from US $18.39 |
||
|
85912
|
85912
90080-87005
Relay, Computer (For Efi)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90080-87005 |
— | ||
|
85915
|
85915
90080-87005
Relay, Computer (For Efi)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90080-87005 |
— | ||
|
85916N
|
85916N
90080-87005
Relay, Computer (For Efi)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90080-87005 |
— | ||
|
85969
|
85969
85969-05010 Relay, Light ReminderLIGHT REMINDER [01.1996 - 10.1997] AT190,ST191..UKP..RHD |
85969-05010 |
US $147.06 |
||
|
85980
|
85980
85980-05010 Relay Assy, Door ControlDOOR CONTROL [01.1996 - 10.1997] ST191..UKP..RHD; AT190..UKP..RHD W(*PW) |
85980-05010 |
US $362.54 |
||
|
85980
|
85980
85980-05030 Relay Assy, Door ControlDOOR CONTROL [01.1996 - 10.1997] AT190..UKP..RHD |
85980-05030 |
US $276.64 |
||
|
9015950222
|
9015950222
90159-50222 New Genuine Part |
90159-50222 |
US $1.60 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
