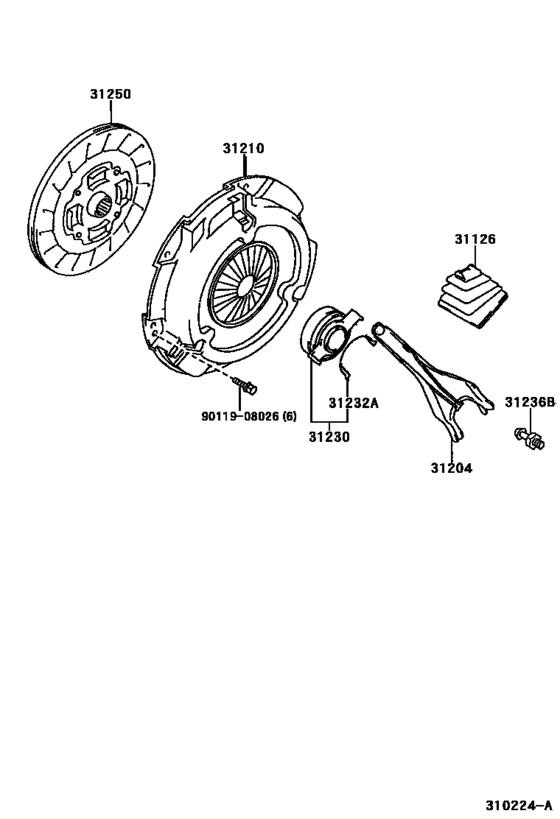

Clutch & Release Fork ([01.1996 - ] (9601- )AT21#..MTM) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- AT210
- grade
- PRM
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[01.1996 - 12.2001] AT21#..MTM |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[01.1996 - 12.2001] AT21#..MTM |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12201 Cover Assy, Clutch[01.1996 -] AT21#..MTM |
31210-12201 |
US $155.79 |
||
| replacement | |||||
|
31210
|
31210
31210-52053 Cover Assy, Clutch[01.1996 -] AT21#..MTM |
31210-52053 |
from US $137.10 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[01.1996 - 01.2001] AT21#..MTM |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[01.1996 - 01.2001] AT21#..MTM |
31230-12191 |
from US $37.65 |
||
|
31230
|
31230
31230-12171 Bearing Assy, Clutch Release[01.2001 - 12.2001] AT21#..MTM |
31230-12171 |
US $65.08 |
||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[01.2001 - 12.2001] AT21#..MTM |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[01.1996 - 12.2001] AT21#..MTM |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[01.1996 - 12.2001] AT21#..MTM |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12370 Disc Assy, Clutch[01.1996 - 08.1996] AT21#..MTM |
31250-12370 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[01.1996 - 08.1996] AT21#..MTM |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-20280 Disc Assy, Clutch[08.1997 -] AT21#..MTM |
31250-20280 |
US $116.48 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[08.1997 -] AT21#..MTM |
31250-12570 |
from US $146.88 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
