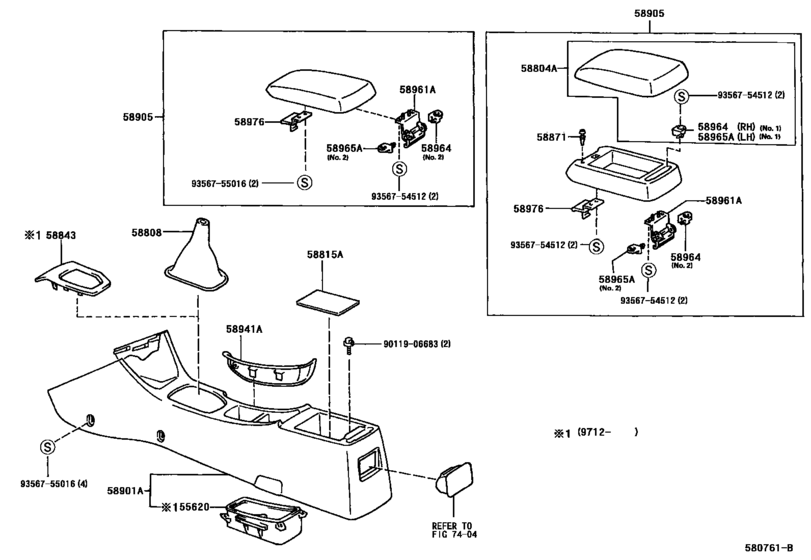

Console Box & Bracket ([01.1996 - ] (9601- )) Diagram Toyota CORONA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AT210
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 10.1998
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55604-20060-B0 Holder Assy, Instrument Panel Cup[12.1997 -] AT210,ST210 SHADOW GRAY,TRIM11 |
55604-20060-B0 |
US $69.31 |
||
|
55620
|
55620
55604-20060-B1 Holder Assy, Instrument Panel Cup[12.1997 -] AT210,ST210 DK. CHARCOAL,TRIM17 |
55604-20060-B1 |
US $69.31 |
||
| replacement | |||||
|
55620
|
55620
55604-20060-B0 Holder Assy, Instrument Panel Cup[12.1997 -] AT210,ST210 DK. CHARCOAL,TRIM17 |
55604-20060-B0 |
US $69.31 |
||
|
58808
|
58808
58808-20130-C0
Cover Sub-Assy, Shifting Hole
[01.1996 - 12.1997] AT210..MTM BLACK,TRIM1#,4# |
58808-20130-C0 |
— | ||
|
58815A
|
58815A
58815-20060 Carpet, Console Box[01.1996 - 08.1997] AT210,ST210 |
58815-20060 |
US $5.97 |
||
|
58815A
|
58815A
58815-20070 Carpet, Console Box[12.1997 -] AT210,ST210 |
58815-20070 |
US $3.49 |
||
|
58815A
|
58815A
58815-21010 Carpet, Console Box[08.1997 - 12.1997] AT210,ST210 |
58815-21010 |
US $4.22 |
||
|
58843
|
58843
58843-20120 Bezel, Shifting Hole[12.1997 - 01.1999] AT210,ST210 |
58843-20120 |
US $119.39 |
||
| replacement | |||||
|
58843
|
58843
58843-20140 Bezel, Shifting Hole[12.1997 - 01.1999] AT210,ST210 |
58843-20140 |
US $131.04 |
||
|
58901A
|
58901A
58901-20140-B0 Box Sub-Assy, Console, Rear[01.1996 - 12.1997] AT210,ST210 SHADOW GRAY,TRIM1# |
58901-20140-B0 |
US $347.98 |
||
|
58901A
|
58901A
58901-20140-E0 Box Sub-Assy, Console, Rear[01.1996 - 12.1997] AT210,ST210 ANTELOPE,TRIM4# |
58901-20140-E0 |
US $347.98 |
||
|
58901A
|
58901A
58901-20160-B0 Box Sub-Assy, Console, Rear[12.1997 -] AT210,ST210 SHADOW GRAY,TRIM11 |
58901-20160-B0 |
US $396.03 |
||
| replacement | |||||
|
58901A
|
58901A
58901-20160-B1 Box Sub-Assy, Console, Rear[12.1997 -] AT210,ST210 SHADOW GRAY,TRIM11 |
58901-20160-B1 |
US $396.03 |
||
|
58901A
|
58901A
58901-20160-B1 Box Sub-Assy, Console, Rear[12.1997 -] AT210,ST210 DK.CHARCOAL,TRIM17 |
58901-20160-B1 |
US $396.03 |
||
|
58905
|
58905
58905-20250-B0 Door Sub-Assy, Console Compartment[01.1996 - 12.1997] AT210 SHADOW GRAY,TRIM1# |
58905-20250-B0 |
US $100.46 |
||
|
58905
|
58905
58905-20250-E0 Door Sub-Assy, Console Compartment[01.1996 - 12.1997] AT210 ANTELOPE,TRIM4# |
58905-20250-E0 |
US $100.46 |
||
| replacement | |||||
|
58905
|
58905
58905-20250-B0 Door Sub-Assy, Console Compartment[01.1996 - 12.1997] AT210 ANTELOPE,TRIM4# |
58905-20250-B0 |
US $100.46 |
||
|
58905
|
58905
58905-20340-B0 Door Sub-Assy, Console Compartment[12.1997 -] AT210 SHADOW GRAY,TRIM11 |
58905-20340-B0 |
US $100.46 |
||
|
58905
|
58905
58905-20340-B1 Door Sub-Assy, Console Compartment[12.1997 -] AT210 DK.CHARCOAL,TRIM17 |
58905-20340-B1 |
US $100.46 |
||
| replacement | |||||
|
58905
|
58905
58905-20340-B0 Door Sub-Assy, Console Compartment[12.1997 -] AT210 DK.CHARCOAL,TRIM17 |
58905-20340-B0 |
US $100.46 |
||
|
58941A
|
58941A
58904-20050-B0 Cover, Parking Brake Hole[01.1996 - 12.1997] AT210,ST210 SHADOW GRAY,TRIM1# |
58904-20050-B0 |
US $49.94 |
||
|
58941A
|
58941A
58904-20050-B2 Cover, Parking Brake Hole[12.1997 - 11.1998] AT210,ST210 DK.CHARCOAL,TRIM17 |
58904-20050-B2 |
US $49.94 |
||
| replacement | |||||
|
58941A
|
58941A
58904-20050-B0 Cover, Parking Brake Hole[12.1997 - 11.1998] AT210,ST210 DK.CHARCOAL,TRIM17 |
58904-20050-B0 |
US $49.94 |
||
|
58941A
|
58941A
58904-20050-E0 Cover, Parking Brake Hole[01.1996 - 12.1997] AT210,ST210 ANTELOPE,TRIM4# |
58904-20050-E0 |
US $49.94 |
||
| replacement | |||||
|
58941A
|
58941A
58904-20050-B0 Cover, Parking Brake Hole[01.1996 - 12.1997] AT210,ST210 ANTELOPE,TRIM4# |
58904-20050-B0 |
US $49.94 |
||
|
58961A
|
58961A
58961-20030
Hinge, Console Compartment Door Male
[01.1996 -] AT210,ST210 |
58961-20030 |
— | ||
| replacement | |||||
|
58961A
|
58961A
58907-12050 Hinge Sub-Assy, Console Compartment Door[01.1996 -] AT210,ST210 |
58907-12050 |
from US $15.78 |
||
|
58964
|
58964
58964-20030-C0
Stopper, Console Compartment Door, No.1
[01.1996 - 12.1997] AT210,ST210 BLACK,TRIM1#,4#,NO.2 |
58964-20030-C0 |
— | ||
| replacement | |||||
|
58964
|
58964
58964-20030 Stopper, Console Compartment Door, No.1CONSOLE COMPARTMENT DOOR, NO.1 [01.1996 - 12.1997] AT210,ST210 BLACK,TRIM1#,4#,NO.2 |
58964-20030 |
from US $2.46 |
||
|
58964
|
58964
58964-20060 Stopper, Console Compartment Door, No.1[12.1997 -] AT210,ST210 NO.2 |
58964-20060 |
US $2.52 |
||
|
58965A
|
58965A
58965-20040-C0
Stopper, Console Compartment Door, No.2
[01.1996 - 12.1997] AT210,ST210 BLACK,TRIM1#,4#,NO.2 |
58965-20040-C0 |
— | ||
| replacement | |||||
|
58965A
|
58965A
58965-20040 Stopper, Console Compartment Door, No.2CONSOLE COMPARTMENT DOOR, NO.2 [01.1996 - 12.1997] AT210,ST210 BLACK,TRIM1#,4#,NO.2 |
58965-20040 |
from US $2.54 |
||
|
58965A
|
58965A
58965-20070
Stopper, Console Compartment Door, No.2
[12.1997 -] AT210,ST210 NO.2 |
58965-20070 |
— | ||
|
58976
|
58976
58976-20020 Striker, Console Compartment Door Lock[01.1996 - 12.1997] AT210,ST210 |
58976-20020 |
from US $5.62 |
||
|
9011906683
|
9011906683
90119-06683 New Genuine Part |
90119-06683 |
US $1.92 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
