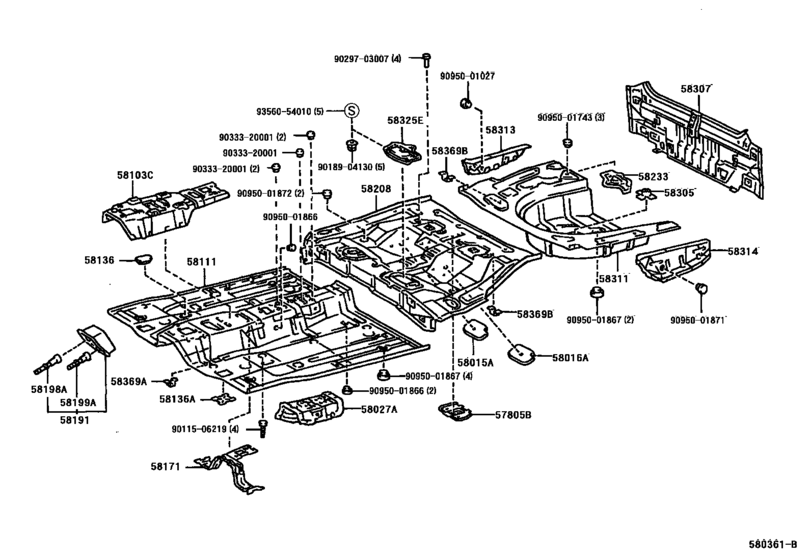

Floor Pan & Lower Back Panel ([01.1996 - ] (9601- )) Diagram Toyota CORONA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AT210
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 10.1998
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57805B
|
57805B
57805-20030 Reinforcement Sub-Assy, Belt Anchor, Rh[12.1997 -] AT210,ST210 |
57805-20030 |
US $28.39 |
||
|
58015A
|
58015A
58015-32040 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[01.1996 - 12.1997] AT210,ST210 |
58015-32040 |
US $27.66 |
||
|
58015A
|
58015A
58282-21010 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[12.1997 -] AT210,ST210 |
58282-21010 |
US $41.35 |
||
|
58016A
|
58016A
58016-20100 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[01.1996 -] AT210,ST210 |
58016-20100 |
US $28.39 |
||
|
58027A
|
58027A
58027-20160 Reinforce Sub-Assy, Seat Belt Anchor[01.1996 - 12.1996] AT210,ST210 |
58027-20160 |
US $47.32 |
||
|
58027A
|
58027A
58027-20210 Reinforce Sub-Assy, Seat Belt Anchor[12.1996 -] AT210,ST210 |
58027-20210 |
US $47.32 |
||
|
58103C
|
58103C
58103-20060 Reinforcement Sub-Assy, Front Floor, Front[01.1996 - 08.1996] AT210,ST210 |
58103-20060 |
US $142.69 |
||
| replacement | |||||
|
58103C
|
58103C
58103-20061 Reinforcement Sub-Assy, Front Floor, Front[01.1996 - 08.1996] AT210,ST210 |
58103-20061 |
US $142.69 |
||
|
58103C
|
58103C
58103-20061 Reinforcement Sub-Assy, Front Floor, Front[08.1996 - 08.1997] AT210,ST210 |
58103-20061 |
US $142.69 |
||
|
58103C
|
58103C
58103-20063 Reinforcement Sub-Assy, Front Floor, Front[08.1997 -] AT210,ST210 |
58103-20063 |
US $144.14 |
||
|
58111
|
58111
58111-20180 Pan, Front Floor[01.1996 - 12.1996] AT210,ST210 |
58111-20180 |
US $610.06 |
||
| replacements | |||||
|
58111
|
58111
58111-20181 Pan, Front Floor[01.1996 - 12.1996] AT210,ST210 |
58111-20181 |
US $612.98 |
||
|
58111
|
58111
90331-20044
Plug(For Transmission Case)
[01.1996 - 12.1996] AT210,ST210 |
90331-20044 |
— | ||
|
58111
|
58111
58111-20181 Pan, Front Floor[12.1996 -] AT210,ST210 |
58111-20181 |
US $612.98 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[01.1996 -] AT210,ST210 |
58136-33010 |
US $3.06 |
||
|
58136A
|
58136A
58136-20020 Cover, Front Floor Hole[01.1996 -] AT210,ST210 |
58136-20020 |
US $5.10 |
||
|
58171
|
58171
58107-20110 Reinforcement, Parking Brake Base[01.1996 -] AT210,ST210 |
58107-20110 |
US $69.45 |
||
|
58191
|
58191
58191-20080 Footrest, Front Floor[01.1996 -] AT210,ST210 |
58191-20080 |
US $26.50 |
||
|
58198A
|
58198A
58198-20170
Clip, Footrest
[01.1996 -] AT210,ST210 |
58198-20170 |
— | ||
|
58199A
|
58199A
58198-20180 Clip, Footrest[01.1996 -] AT210,ST210 |
58198-20180 |
US $6.99 |
||
|
58208
|
58208
58211-20420 Pan, Center Floor[01.1996 - 01.1997] AT210,ST210 |
58211-20420 |
US $503.78 |
||
| replacement | |||||
|
58208
|
58208
58211-20421 Pan, Center Floor[01.1996 - 01.1997] AT210,ST210 |
58211-20421 |
US $505.23 |
||
|
58208
|
58208
58211-20421 Pan, Center Floor[01.1997 -] AT210,ST210 |
58211-20421 |
US $505.23 |
||
|
58233
|
58233
58233-20090 Bracket, Exhaust Pipe Mounting[01.1996 -] AT210,ST210 |
58233-20090 |
US $25.19 |
||
|
58305
|
58305
58351-20040 Bracket Sub-Assy, Spare Wheel Clamp[01.1996 -] AT210,ST210 |
58351-20040 |
US $7.43 |
||
|
58307
|
58307
58307-2B240 Panel Sub-Assy, Body Lower Back[01.1996 -] AT210,ST210 |
58307-2B240 |
US $270.82 |
||
|
58311
|
58311
58311-20320 Pan, Rear Floor[01.1996 - 12.1999] AT210,ST210 |
58311-20320 |
US $506.69 |
||
| replacement | |||||
|
58311
|
58311
58311-21060 Pan, Rear Floor[01.1996 - 12.1999] AT210,ST210 |
58311-21060 |
US $506.69 |
||
|
58313
|
58313
58305-20040 Panel, Rear Floor Side, Rh[01.1996 -] AT210,ST210 |
58305-20040 |
US $63.19 |
||
|
58314
|
58314
58314-20370 Panel, Rear Floor Side, Lh[01.1996 -] AT210,ST210 |
58314-20370 |
US $53.29 |
||
|
58325E
|
58325E
58325-32030 Cover, Rear Floor Service Hole[01.1996 -] AT210,ST210 |
58325-32030 |
US $19.66 |
||
|
58369A
|
58369A
58369-20020 Bracket, Center Floor Heat Insulator[01.1996 -] AT210,ST210 |
58369-20020 |
US $2.91 |
||
|
58369B
|
58369B
58369-20020 Bracket, Center Floor Heat Insulator[01.1996 -] AT210,ST210 FOR REAR FLOOR PAN |
58369-20020 |
US $2.91 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[01.1996 -] AT210,ST210 FOR CENTER FLOOR PAN |
58369-32010 |
US $3.32 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001867
|
9095001867
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
US $1.60 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
