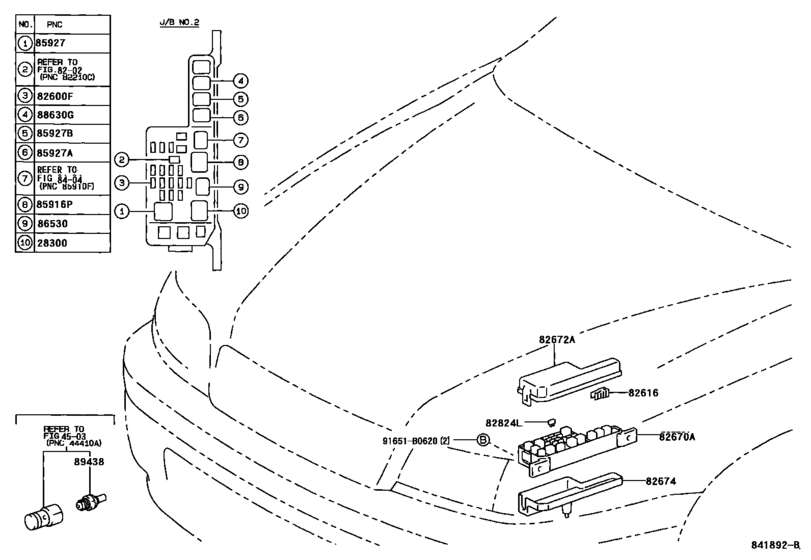

Switch & Relay & Computer ([12.1997 - ] ENGINE ROOM (9712- )) Diagram Toyota CORONA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AT210
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 10.1998
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1996 - 08.1998] 4AFE,3SFE..AT210,ST210 |
28300-10020 |
from US $53.76 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[01.1996 - 12.1997] AT210,ST210 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1996 - 12.1997] AT210,ST210 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1996 - 12.1997] AT210,ST210 10A,MINI FUSE |
90982-09009 |
US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1996 - 12.1997] AT210,ST210 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1996 - 12.1997] AT210,ST210 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.1996 - 12.1997] AT210,ST210 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.1996 - 08.1998] AT210,ST210 |
82616-20010 |
from US $2.38 |
||
|
82670A
|
82670A
82720-20010 Block Assy, Junction, No.1[01.1996 - 12.1997] AT210,ST210 |
82720-20010 |
US $330.51 |
||
|
82670A
|
82670A
82720-21010 Block Assy, Junction, No.1[12.1997 - 08.1998] AT210,ST210 |
82720-21010 |
US $247.52 |
||
|
82672A
|
82672A
82672-2B030 Cover, Junction Block[01.1996 - 12.1997] AT210,ST210 |
82672-2B030 |
US $38.58 |
||
|
82672A
|
82672A
82672-2B160 Cover, Junction Block[12.1997 - 08.1998] AT210,ST210 |
82672-2B160 |
US $38.58 |
||
|
82674
|
82674
82674-20040 Cover, Junction Block[01.1996 - 12.1997] AT210,ST210 |
82674-20040 |
US $25.19 |
||
|
82674
|
82674
82674-21020 Cover, Junction Block Lower[12.1997 - 08.1998] AT210,ST210 |
82674-21020 |
US $50.67 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[12.1997 - 08.1998] AT210,ST210 |
82824-20140 |
US $3.32 |
||
|
85916P
|
85916P
90987-02006 Relay[01.1996 - 08.1998] AT210,ST210 |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-02009 Relay Assy[12.1997 - 08.1998] AT210,ST210 |
90987-02009 |
US $64.60 |
||
|
85927
|
85927
90987-03003 Relay Assy, Fuel Pump[01.1996 - 12.1997] AT210,ST210 |
90987-03003 |
from US $24.14 |
||
|
85927A
|
85927A
90987-02012 Relay, Ignition, No.1[01.1996 - 06.1998] AT210,ST210 |
90987-02012 |
from US $27.85 |
||
|
85927A
|
85927A
90987-02015 Relay, Ignition, No.2[06.1998 - 08.1998] AT210,ST210 GREEN |
90987-02015 |
US $62.90 |
||
|
85927B
|
85927B
90987-04004 Relay, Starter Cut[01.1996 - 08.1998] AT210,ST210 |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[01.1996 - 12.1997] AT210,ST210 |
86530-20070 |
from US $12.19 |
||
|
86530
|
86530
90080-87010 Relay, Ignition, No.1[12.1997 - 08.1998] AT210,ST210 GRAY |
90080-87010 |
US $14.27 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[12.1997 - 08.1998] AT210,ST210 BLACK |
90987-02012 |
from US $27.85 |
||
|
86530
|
86530
90987-02015 Relay, Ignition, No.2[06.1998 - 08.1998] AT210,ST210 GREEN |
90987-02015 |
US $62.90 |
||
|
88630G
|
88630G
90987-02012 Relay, Ignition, No.1[01.1996 - 06.1998] AT210,ST210 |
90987-02012 |
from US $27.85 |
||
|
88630G
|
88630G
90987-02015 Relay, Ignition, No.2[06.1998 - 08.1998] AT210,ST210 GREEN |
90987-02015 |
US $62.90 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
