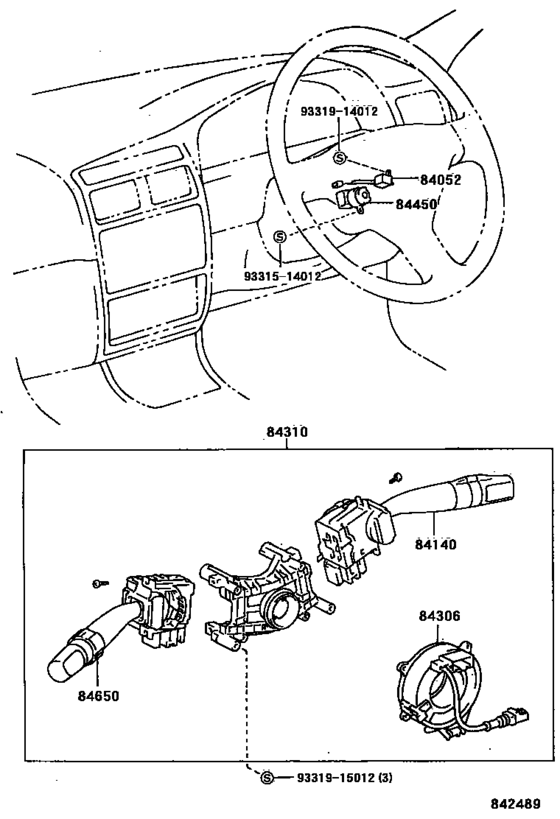

Switch & Relay & Computer ([01.1996 - ] COMBINATION SWITCH (9601- )) Diagram Toyota CORONA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AT210
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 10.1998
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12070 Switch Assy, Un-Lock Warning[01.1996 - 08.1998] AT210,ST210 |
84052-12070 |
US $16.42 |
||
|
84140
|
84140
84140-20570
Switch Assy, Headlamp Dimmer
[01.1996 - 12.1997] AT210 |
84140-20570 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26170 Switch Assy, Headlamp Dimmer[01.1996 - 12.1997] AT210 |
84140-26170 |
from US $57.72 |
||
|
84140
|
84140
84140-20590 Switch Assy, Headlamp Dimmer[12.1997 - 08.1998] AT210,ST210 |
84140-20590 |
US $109.20 |
||
| replacement | |||||
|
84140
|
84140
84140-35130 Switch Assy, Headlamp Dimmer[12.1997 - 08.1998] AT210,ST210 |
84140-35130 |
US $107.74 |
||
|
84306
|
84306
84306-12070 Cable Sub-Assy, Spiral[12.1997 - 08.1998] AT210,ST210 |
84306-12070 |
from US $174.25 |
||
|
84306
|
84306
84306-20090 Cable Sub-Assy, Spiral[06.1996 - 12.1997] AT210,ST210 |
84306-20090 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[06.1996 - 12.1997] AT210,ST210 |
84306-35011 |
US $291.78 |
||
|
84306
|
84306
84306-35010 Cable Sub-Assy, Spiral[01.1996 - 06.1996] AT210,ST210 |
84306-35010 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[01.1996 - 06.1996] AT210,ST210 |
84306-35011 |
US $291.78 |
||
|
84310
|
84310
84310-2L430 Switch Assy, Turn Signal[01.1996 - 12.1997] AT210 |
84310-2L430 |
US $393.12 |
||
|
84310
|
84310
84310-2L760 Switch Assy, Turn Signal[12.1997 - 08.1998] AT210,ST210 |
84310-2L760 |
US $521.25 |
||
| replacements | |||||
|
84310
|
84310
84140-35130 Switch Assy, Headlamp Dimmer[12.1997 - 08.1998] AT210,ST210 |
84140-35130 |
US $107.74 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[12.1997 - 08.1998] AT210,ST210 |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84319-12020 Housing, Steering Wheel Switch[12.1997 - 08.1998] AT210,ST210 |
84319-12020 |
US $42.22 |
||
|
84310
|
84310
84652-2G360 Switch Assy, Windshield Wiper[12.1997 - 08.1998] AT210,ST210 |
84652-2G360 |
US $126.67 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[01.1996 - 08.1998] AT210,ST210 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-2G360 Switch Assy, Windshield Wiper[01.1996 - 08.1998] AT210,ST210 |
84652-2G360 |
US $126.67 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
