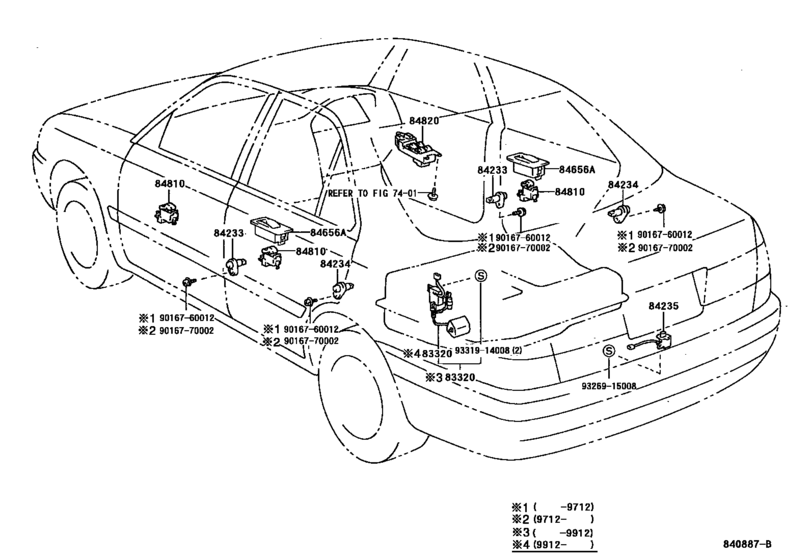

Switch & Relay & Computer ([01.1996 - ] ROOF,DOOR,SEAT & LUGGAGE (9601- )) Diagram Toyota CORONA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AT210
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 10.1998
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80243 Gage Assy, Fuel Sender[01.1996 - 08.1998] AT210,ST210 |
83320-80243 |
US $74.26 |
||
|
84233
|
84233
84231-12160 Switch Assy, Courtesy Lamp (For Front Door)[01.1996 - 08.1998] AT210,ST210 |
84231-12160 |
US $16.26 |
||
|
84234
|
84234
84231-12160 Switch Assy, Courtesy Lamp (For Front Door)[01.1996 - 08.1998] AT210,ST210 |
84231-12160 |
US $16.26 |
||
|
84235
|
84235
84231-20380 Switch Assy, Courtesy Lamp(For Back Door)[01.1996 - 08.1998] AT210,ST210 |
84231-20380 |
US $14.41 |
||
|
84656A
|
84656A
84656-20040-B1 Bezel, Switch[01.1996 - 12.1997] AT210,ST210 SHADOW GRAY,TRIM1# |
84656-20040-B1 |
US $16.45 |
||
| replacement | |||||
|
84656A
|
84656A
84656-20040-C0 Bezel, Switch[01.1996 - 12.1997] AT210,ST210 SHADOW GRAY,TRIM1# |
84656-20040-C0 |
US $16.45 |
||
|
84656A
|
84656A
84656-20040-B2 Bezel, Switch[12.1997 - 08.1998] AT210,ST210 DK.CHARCOAL,TRIM17 |
84656-20040-B2 |
US $16.45 |
||
| replacement | |||||
|
84656A
|
84656A
84656-20040-C0 Bezel, Switch[12.1997 - 08.1998] AT210,ST210 DK.CHARCOAL,TRIM17 |
84656-20040-C0 |
US $16.45 |
||
|
84656A
|
84656A
84656-20040-E1 Bezel, Switch[01.1996 - 12.1997] AT210,ST210 ANTELOPE,TRIM4# |
84656-20040-E1 |
US $16.45 |
||
| replacement | |||||
|
84656A
|
84656A
84656-20040-C0 Bezel, Switch[01.1996 - 12.1997] AT210,ST210 ANTELOPE,TRIM4# |
84656-20040-C0 |
US $16.45 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[01.1996 - 08.1998] AT210,ST210 |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-20510 Master Switch Assy, Power Window Regulator[01.1996 - 12.1997] AT210,ST210 |
84820-20510 |
US $304.10 |
||
|
84820
|
84820
84820-21020 Master Switch Assy, Power Window Regulator[12.1997 - 08.1998] AT210,ST210 |
84820-21020 |
US $323.23 |
||
|
9016760012
|
9016760012
90167-60012 New Genuine Part |
90167-60012 |
US $0.87 |
||
|
9016770002
|
9016770002
90167-70002 New Genuine Part |
90167-70002 |
US $1.46 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
