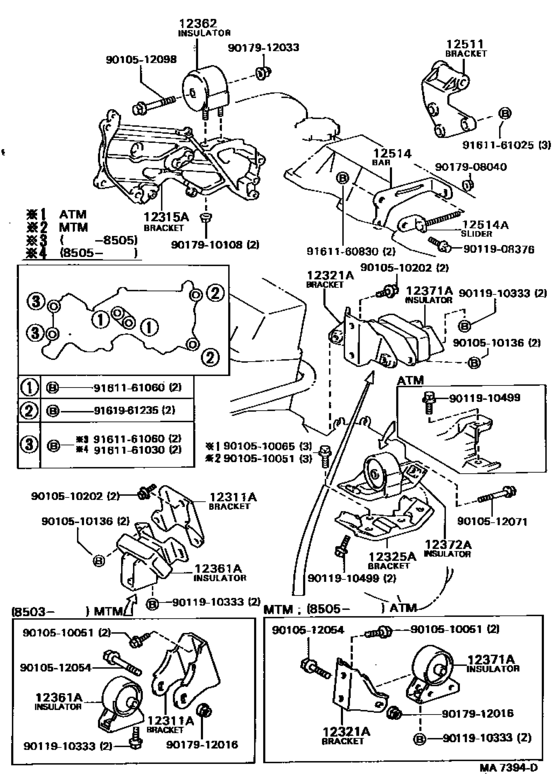

Mounting ([10.1983 - ] (8310- )2CL) Diagram Toyota CORONA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- CT150
- grade
- EXS
- body
- 4D
- ENGINE
- 2CL
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1983
- To
- 11.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-63031 Bracket, Engine Mounting, Front(For Transverse Engine)[10.1983 - 03.1985] 2CL..CT150 |
12311-63031 |
US $21.99 |
||
|
12311A
|
12311A
12311-64070 Bracket, Engine Mounting, Front(For Transverse Engine)[03.1985 - 11.1987] 2CL..CT150..5F; 1S#..ST150..5F |
12311-64070 |
US $21.99 |
||
|
12315A
|
12315A
12315-64030 Bracket, Engine Mounting, Rh(For Transverse Engine)[10.1983 - 08.1985] 2CL..CT150 |
12315-64030 |
US $129.58 |
||
| replacements | |||||
|
12315A
|
12315A
12315-64040 Bracket, Engine Mounting, Rh(For Transverse Engine)[10.1983 - 08.1985] 2CL..CT150 |
12315-64040 |
US $117.94 |
||
|
12315A
|
12315A
91612-61030 Bolt (For Transmission Control Cable Bracket)[10.1983 - 08.1985] 2CL..CT150 |
91612-61030 |
from US $1.13 |
||
|
12315A
|
12315A
12315-64031 Bracket, Engine Mounting, Rh(For Transverse Engine)[08.1985 - 08.1986] 2CL..CT150 |
12315-64031 |
US $117.94 |
||
| replacement | |||||
|
12315A
|
12315A
12315-64040 Bracket, Engine Mounting, Rh(For Transverse Engine)[08.1985 - 08.1986] 2CL..CT150 |
12315-64040 |
US $117.94 |
||
|
12315A
|
12315A
12315-64040 Bracket, Engine Mounting, Rh(For Transverse Engine)[08.1986 - 11.1987] 2CL..CT150 |
12315-64040 |
US $117.94 |
||
|
12321A
|
12321A
12321-63030 Bracket, Engine Mounting, Rear(For Transverse Engine)[01.1983 - 04.1984] 2CL..CT150..5F; 1S#..ST150..5F |
12321-63030 |
US $20.82 |
||
| replacement | |||||
|
12321A
|
12321A
12321-64100 Bracket, Engine Mounting, Rear(For Transverse Engine)[01.1983 - 04.1984] 2CL..CT150..5F; 1S#..ST150..5F |
12321-64100 |
US $20.82 |
||
|
12321A
|
12321A
12321-63031 Bracket, Engine Mounting, Rear(For Transverse Engine)[04.1984 - 02.1985] 2CL..CT150..5F; 1S#..ST150..5F |
12321-63031 |
US $22.57 |
||
| replacement | |||||
|
12321A
|
12321A
12321-64100 Bracket, Engine Mounting, Rear(For Transverse Engine)[04.1984 - 02.1985] 2CL..CT150..5F; 1S#..ST150..5F |
12321-64100 |
US $20.82 |
||
|
12321A
|
12321A
12321-64100 Bracket, Engine Mounting, Rear(For Transverse Engine)[02.1985 - 11.1987] 2CL..CT150..5F |
12321-64100 |
US $20.82 |
||
|
12325A
|
12325A
12325-63010
Bracket, Engine Mounting, Lh(For Transverse Engine)
[01.1983 - 11.1987] 2CL..CT150..5F; 1S#..ST150..5F |
12325-63010 |
— | ||
|
12361A
|
12361A
12361-64031 Insulator, Engine Mounting, Front(For Transverse Engine)[10.1983 - 03.1985] 2CL..CT150..5F |
12361-64031 |
US $142.69 |
||
|
12361A
|
12361A
12361-64100
Insulator, Engine Mounting, Front(For Transverse Engine)
[03.1985 - 11.1987] 2CL..CT150..5F |
12361-64100 |
— | ||
|
12362
|
12362
12362-64010
Insulator, Engine Mounting, Rh(For Transverse Engine)
[10.1983 - 11.1987] 2CL..CT150..5F |
12362-64010 |
— | ||
|
12371A
|
12371A
12371-64050
Insulator, Engine Mounting, Rear
[10.1983 - 11.1987] 2CL..CT150..5F |
12371-64050 |
— | ||
|
12372A
|
12372A
12372-64010
Insulator, Engine Mounting, Lh(For Transverse Engine)
[10.1983 - 11.1987] 2CL..CT150..5F |
12372-64010 |
— | ||
| replacement | |||||
|
12372A
|
12372A
12372-64050
Insulator, Engine Mounting, Lh(For Transverse Engine)
[10.1983 - 11.1987] 2CL..CT150..5F |
12372-64050 |
— | ||
|
12511
|
12511
12511-64020 Bracket, Alternator, No.1[10.1983 - 11.1987] 2CL..CT150 |
12511-64020 |
US $60.57 |
||
|
12514
|
12514
16381-64020 Bar, Alternator Belt Adjusting[10.1983 - 11.1987] 2CL..CT150 |
16381-64020 |
US $18.05 |
||
|
12514A
|
12514A
16385-64020 Slider, Fan Belt Adjusting[10.1983 - 11.1987] 2CL..CT150 |
16385-64020 |
US $15.58 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510065
|
9010510065
90105-10065 Bolt(For Transaxle Case & Engine Setting) |
90105-10065 |
US $4.08 |
||
| replacement | |||||
|
9010510065
|
9010510065
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510136
|
9010510136
90105-10136 New Genuine Part |
90105-10136 |
US $2.62 |
||
|
9010510202
|
9010510202
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
|
90105-10202 |
— | ||
| replacement | |||||
|
9010510202
|
9010510202
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
|
9010512054
|
9010512054
90105-12054 BOLT |
90105-12054 |
from US $5.39 |
||
|
9010512071
|
9010512071
90105-12071 Bolt, Hexagon(For Upper Control Arm) |
90105-12071 |
US $5.10 |
||
|
9010512098
|
9010512098
90105-12098
New Genuine Part
|
90105-12098 |
— | ||
|
9011908376
|
9011908376
90119-08376 New Genuine Part |
90119-08376 |
US $3.20 |
||
|
9011910333
|
9011910333
90119-10333
New Genuine Part
|
90119-10333 |
— | ||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.24 |
||
|
9017912033
|
9017912033
90179-12033
Nut(For Rear Suspension Arm)
|
90179-12033 |
— | ||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.08 |
||
