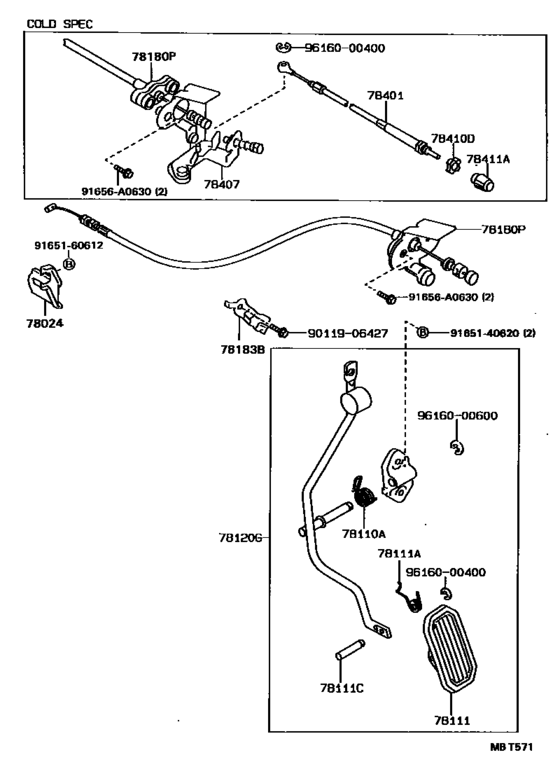

Accelerator Link ([12.1987 - ] (8712- )CT17#) Diagram Toyota CORONA
- Year
- 1988 - 1989
- Sales region
- Japan
- Frame
- CT170
- grade
- MX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 09.1988
- To
- 11.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corona
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20110 Bracket Sub-Assy, Accelerator Control Cable[12.1987 - 11.1992] CT17# |
78024-20110 |
US $36.25 |
||
|
78110A
|
78110A
90508-18048 Spring (For Accelerator Pedal Rod)[12.1987 - 11.1988] AT17#,CT170,ET176,ST17#..ATM..(EXS,GT,GTR,GX,MX,X,Z); ST171..4FC..(EXG,G,SXR);ST17#..5F..(EXS,GT,GTR,X) ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
90508-18048 |
US $1.40 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20190 Rod Assy, Accelerator Pedal[12.1987 - 11.1988] AT17#,CT170,ET176,ST170..ATM |
78120-20190 |
US $49.07 |
||
|
78180P
|
78180P
78180-2B230 Cable Assy, Accelerator Control[12.1987 - 01.1990] CT17# |
78180-2B230 |
US $40.91 |
||
|
78183B
|
78183B
78183-20120 Clamp, Accelerator Control Cable[09.1988 - 11.1989] CT17#,ST17# |
78183-20120 |
US $14.27 |
||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9011906427
|
9011906427
90119-06427 New Genuine Part |
90119-06427 |
US $1.60 |
||
| replacement | |||||
|
9011906427
|
9011906427
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
