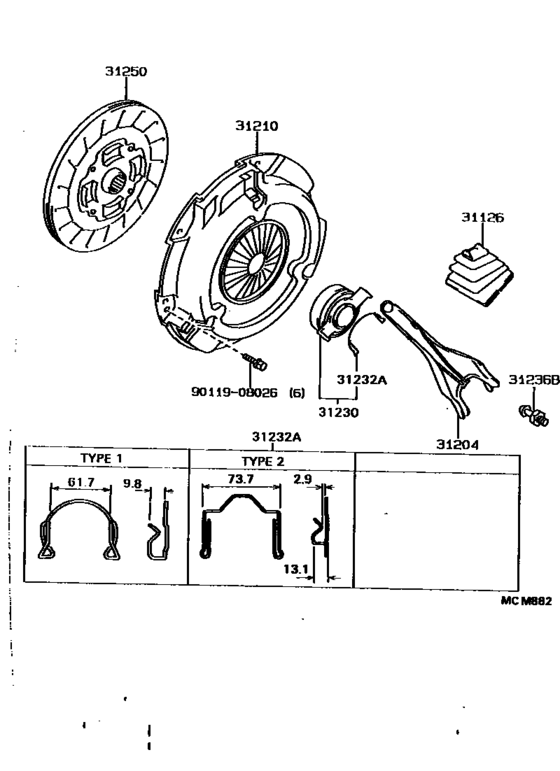

Clutch & Release Fork ([02.1992 - ] S50 (9202- )CT190,ST190..MTM) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[02.1992 - 01.1996] CT19#,ST190,195..MTM |
31126-32010 |
US $14.56 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[02.1992 - 01.1996] CT19#,ST190,195..MTM |
31204-20100 |
from US $30.40 |
||
|
31210
|
31210
31210-32121 Cover Assy, Clutch[02.1992 - 01.1996] CT190..MTM..(EXS,GX,SELS) |
31210-32121 |
US $174.72 |
||
| replacement | |||||
|
31210
|
31210
31210-12320 Cover Assy, Clutch[02.1992 - 01.1996] CT190..MTM..(EXS,GX,SELS) |
31210-12320 |
US $199.47 |
||
|
31230
|
31230
31230-32060 Bearing Assy, Clutch Release[02.1992 - 01.1996] CT190,ST190..MTM |
31230-32060 |
from US $52.42 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[02.1992 - 01.1996] CT19#,ST190,195..MTM ＴＹＰＥ １ |
31232-20020 |
from US $1.54 |
||
|
31232A
|
31232A
31232-32050 Clip, Release Bearing Hub[02.1992 - 01.1996] CT190,ST190..MTM ＴＹＰＥ ２ |
31232-32050 |
US $2.33 |
||
|
31236B
|
31236B
31236-32010 Support, Release Fork[02.1992 - 01.1996] CT190,ST190..MTM |
31236-32010 |
US $12.48 |
||
|
31250
|
31250
31250-12280 Disc Assy, Clutch[02.1992 - 05.1995] CT190..MTM..(EXS,GX,SELS) |
31250-12280 |
US $182 |
||
| replacement | |||||
|
31250
|
31250
31250-20313 Disc Assy, Clutch[02.1992 - 05.1995] CT190..MTM..(EXS,GX,SELS) |
31250-20313 |
US $157.25 |
||
|
31250
|
31250
31250-12281 Disc Assy, Clutch[05.1995 - 01.1996] CT190..MTM..(EXS,GX,SELS) |
31250-12281 |
US $182 |
||
| replacement | |||||
|
31250
|
31250
31250-20313 Disc Assy, Clutch[05.1995 - 01.1996] CT190..MTM..(EXS,GX,SELS) |
31250-20313 |
US $157.25 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
