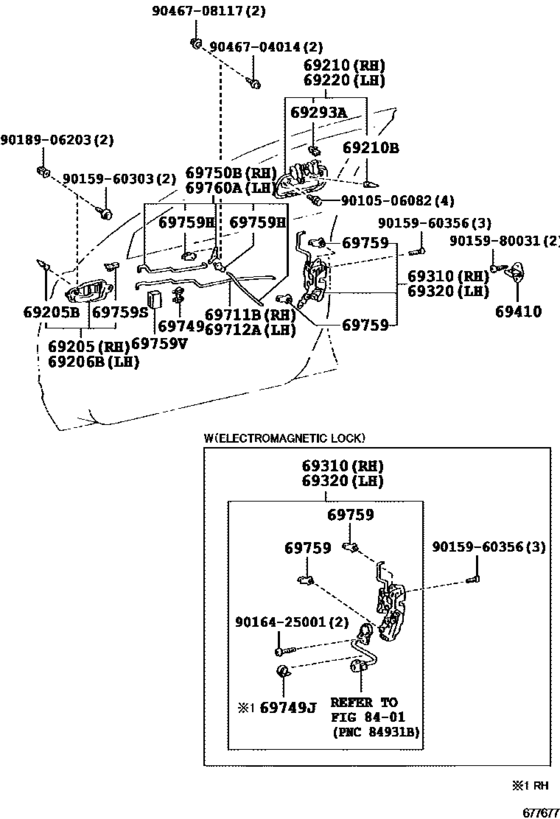

Front Door Lock & Handle ([02.1992 - ] (9202- )) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-20110-B0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
69205-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
69205-20110-C0 |
US $26.79 |
||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[02.1992 - 02.1994] AT190,CT19#,ST19# BLACK,TRIM2# |
69205-20110-C0 |
US $26.79 |
||
|
69205
|
69205
69205-20110-E0 Handle Sub-Assy, Front Door Inside, Rh[02.1992 - 01.1996] AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
69205-20110-E0 |
US $26.64 |
||
| replacement | |||||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[02.1992 - 01.1996] AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
69205-20110-C0 |
US $26.79 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[02.1992 - 01.1996] AT190,CT19#,ST19# |
90541-04014 |
from US $0.99 |
||
|
69206B
|
69206B
69206-20110-B0 Handle Sub-Assy, Front Door Inside, Lh[02.1994 - 01.1996] AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
69206-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[02.1994 - 01.1996] AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
69206-20110-C0 |
— | ||
|
69206B
|
69206B
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[02.1992 - 05.1993] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
69206-20110-C0 |
— | ||
|
69206B
|
69206B
69206-20110-E0 Handle Sub-Assy, Front Door Inside, Lh[02.1992 - 01.1996] AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
69206-20110-E0 |
US $26.94 |
||
|
69210
|
69210
69210-20280-A0
Handle Assy, Front Door, Outside Rh
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
69210-20280-A0 |
— | ||
|
69210
|
69210
69210-20280-A1
Handle Assy, Front Door, Outside Rh
[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
69210-20280-A1 |
— | ||
|
69210
|
69210
69210-20280-B0
Handle Assy, Front Door, Outside Rh
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
69210-20280-B0 |
— | ||
|
69210
|
69210
69210-20280-B1 Handle Assy, Front Door, Outside Rh[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS LT.GRAIGE ME,1A2 |
69210-20280-B1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-C0
Handle Assy, Front Door, Outside Rh
[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK ME,205 |
69210-20280-C0 |
— | ||
|
69210
|
69210
69210-20280-D1 Handle Assy, Front Door, Outside Rh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
69210-20280-D1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-D5 Handle Assy, Front Door, Outside Rh[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS MAGENTA MC,3L3 |
69210-20280-D5 |
US $90.27 |
||
|
69210
|
69210
69210-20280-E0 Handle Assy, Front Door, Outside Rh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
69210-20280-E0 |
US $90.27 |
||
|
69210
|
69210
69210-20280-E1 Handle Assy, Front Door, Outside Rh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
69210-20280-E1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-G0 Handle Assy, Front Door, Outside Rh[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
69210-20280-G0 |
US $90.27 |
||
|
69210
|
69210
69210-20280-H0
Handle Assy, Front Door, Outside Rh
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
69210-20280-H0 |
— | ||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[02.1992 - 01.1996] AT190,CT19#,ST19# |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-20280-A0
Handle Assy, Front Door Outside, Lh
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
69220-20280-A0 |
— | ||
|
69220
|
69220
69220-20280-A1
Handle Assy, Front Door Outside, Lh
[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
69220-20280-A1 |
— | ||
|
69220
|
69220
69220-20280-B0
Handle Assy, Front Door Outside, Lh
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
69220-20280-B0 |
— | ||
|
69220
|
69220
69220-20280-B1 Handle Assy, Front Door Outside, Lh[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS LT.GRAIGE ME,1A2 |
69220-20280-B1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-C0
Handle Assy, Front Door Outside, Lh
[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK ME,205 |
69220-20280-C0 |
— | ||
|
69220
|
69220
69220-20280-D1 Handle Assy, Front Door Outside, Lh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
69220-20280-D1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-D5 Handle Assy, Front Door Outside, Lh[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS MAGENTA MC,3L3 |
69220-20280-D5 |
US $90.27 |
||
|
69220
|
69220
69220-20280-E0 Handle Assy, Front Door Outside, Lh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
69220-20280-E0 |
US $90.27 |
||
|
69220
|
69220
69220-20280-E1 Handle Assy, Front Door Outside, Lh[02.1992 - 02.1994] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
69220-20280-E1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-G0 Handle Assy, Front Door Outside, Lh[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
69220-20280-G0 |
US $90.27 |
||
|
69220
|
69220
69220-20280-H0 Handle Assy, Front Door Outside, Lh[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
69220-20280-H0 |
US $90.27 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[02.1992 - 01.1996] AT190,CT19#,ST19# RH,NATURAL |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[02.1992 - 01.1996] AT190,CT19#,ST19# LH,YELLOW |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-20440 Lock Assy, Front Door, Rh[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
69030-20440 |
US $243.15 |
||
|
69320
|
69320
69040-20460 Lock Assy, Front Door, Lh[08.1993 - 02.1994] AT190,CT190,ST190..SELS ｾﾚｸﾄｻﾙ-ﾝ G |
69040-20460 |
US $244.61 |
||
|
69320
|
69320
69040-20470 Lock Assy, Front Door, Lh[02.1992 - 01.1996] AT190,CT19#,ST190,195..SELS |
69040-20470 |
US $244.61 |
||
|
69410
|
69410
69410-20070 Plate Assy, Front Door Lock Striker[02.1992 - 09.1992] AT190,CT19#,ST19# |
69410-20070 |
US $24.29 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[09.1992 - 01.1996] AT190,CT19#,ST19# |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[09.1992 - 01.1996] AT190,CT19#,ST19# |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-20180 Link, Front Door Lock Remote Control, Rh[02.1992 - 01.1996] AT190,CT19#,ST19# |
69711-20180 |
US $8.74 |
||
|
69712A
|
69712A
69712-20180 Link, Front Door Lock Remote Control, Lh[02.1992 - 01.1996] AT190,CT19#,ST19# |
69712-20180 |
US $8.74 |
||
|
69749
|
69749
69749-20040
Clamp, Front Door Lock Link
[02.1992 - 01.1996] AT190,CT19#,ST19# |
69749-20040 |
— | ||
|
69749J
|
69749J
69749-32020 Clamp, Front Door Lock Link[02.1994 - 12.1994] AT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
69749-32020 |
US $1.46 |
||
|
69750B
|
69750B
69750-20050 Link Assy, Front Door Inside Locking, Rh[02.1992 - 01.1996] AT190,CT19#,ST19# |
69750-20050 |
US $18.05 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[02.1992 - 01.1996] AT190,CT19#,ST19# LH,NATURAL |
69759-24010 |
from US $2.18 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[02.1992 - 01.1996] AT190,CT19#,ST19# RH,BLUE |
69759-24020 |
from US $2.88 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[02.1992 - 01.1996] AT190,CT19#,ST19# LH,GREEN |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[02.1992 - 01.1996] AT190,CT19#,ST19# RH,GRAY |
69759-24060 |
from US $4.64 |
||
|
69759H
|
69759H
69759-20380
Snap, Door Lock Control Link, No.1
[02.1992 - 01.1996] AT190,CT19#,ST19# ブラック |
69759-20380 |
— | ||
|
69759H
|
69759H
69759-24030 Snap, Door Inside Handle Link[02.1992 - 01.1996] AT190,CT19#,ST19# レッド |
69759-24030 |
from US $2.80 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[02.1992 - 01.1996] AT190,CT19#,ST19# 右側，ピンク |
69759-14050 |
from US $2.24 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[02.1992 - 01.1996] AT190,CT19#,ST19# 左側，イエロー |
69759-24070 |
US $2.88 |
||
|
69759V
|
69759V
69759-30021 Silencer, Back Door Lock Link[02.1992 - 01.1996] AT190,CT19#,ST19# |
69759-30021 |
from US $3.38 |
||
|
69760A
|
69760A
69760-20050 Link Assy, Front Door Inside Locking, Lh[02.1992 - 01.1996] AT190,CT19#,ST19# |
69760-20050 |
US $18.05 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9015960356
|
9015960356
90159-60356 New Genuine Part |
90159-60356 |
US $1.92 |
||
|
9015980031
|
9015980031
90159-80031 SCREW WWASHER |
90159-80031 |
US $1.12 |
||
|
9016425001
|
9016425001
90164-25001 New Genuine Part |
90164-25001 |
US $2.33 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.80 |
||
|
9046704014
|
9046704014
90467-04014 Clamp, Rear Door Lock Link |
90467-04014 |
US $1.22 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
