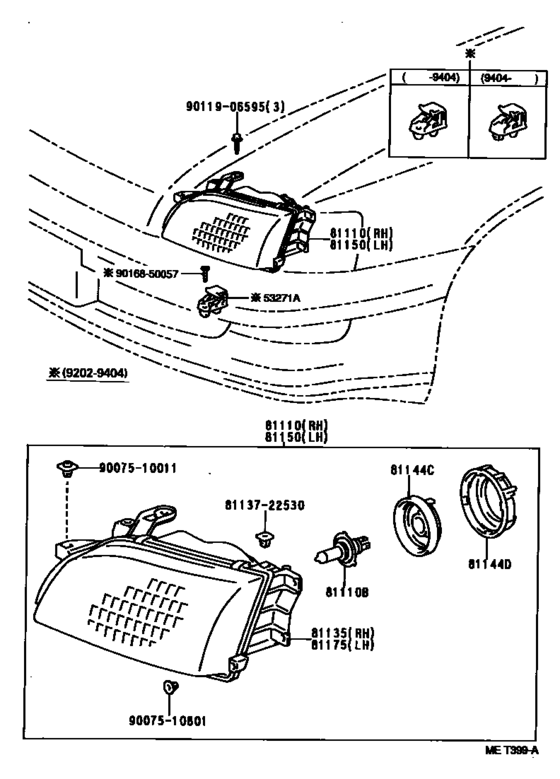

Headlamp ([02.1992 - ] (9202- )) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12040
Bracket, Headlamp Mounting
[02.1992 - 04.1994] AT190,CT19#,ST19# |
53271-12040 |
— | ||
| replacement | |||||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[02.1992 - 04.1994] AT190,CT19#,ST19# |
53271-12060 |
from US $7.78 |
||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[04.1994 - 01.1996] AT190,CT19#,ST19# |
53271-12060 |
from US $7.78 |
||
|
81110
|
81110
81110-2B640
Headlamp Assy, Rh
[02.1992 - 01.1996] AT190,CT19#,ST19# |
81110-2B640 |
— | ||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[02.1992 - 07.1994] AT190,CT19#,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [02.1992 - 07.1994] AT190,CT19#,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[07.1994 - 01.1996] AT190,CT19#,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [07.1994 - 01.1996] AT190,CT19#,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81135
|
81135
81130-2B640 Unit Assy, Headlamp, Rh[02.1992 - 01.1996] AT190,CT19#,ST19# |
81130-2B640 |
US $324.69 |
||
|
81144C
|
81144C
90075-99058 Cover, Headlamp, No.1[02.1992 - 01.1996] AT190,CT19#,ST19# |
90075-99058 |
US $7.21 |
||
|
81144D
|
81144D
90075-99057 Cap, Headlamp Locking[02.1992 - 01.1996] AT190,CT19#,ST19# |
90075-99057 |
US $5.36 |
||
|
81150
|
81150
81150-2B600
Headlamp Assy, Lh
[02.1992 - 01.1996] AT190,CT19#,ST19# |
81150-2B600 |
— | ||
|
81175
|
81175
81170-2B600 Unit Assy, Headlamp, Lh[02.1992 - 01.1996] AT190,CT19#,ST19# |
81170-2B600 |
US $324.69 |
||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
9007510011
|
9007510011
90075-10011 Nut, Headlamp Self Locking |
90075-10011 |
US $2.88 |
||
|
9007510801
|
9007510801
90075-10801
New Genuine Part
|
90075-10801 |
— | ||
| replacement | |||||
|
9007510801
|
9007510801
90189-06111 CLIP |
90189-06111 |
from US $1.37 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
|
9016850057
|
9016850057
90168-50057 SCREW RADIATOR GRIL |
90168-50057 |
from US $0.92 |
||
